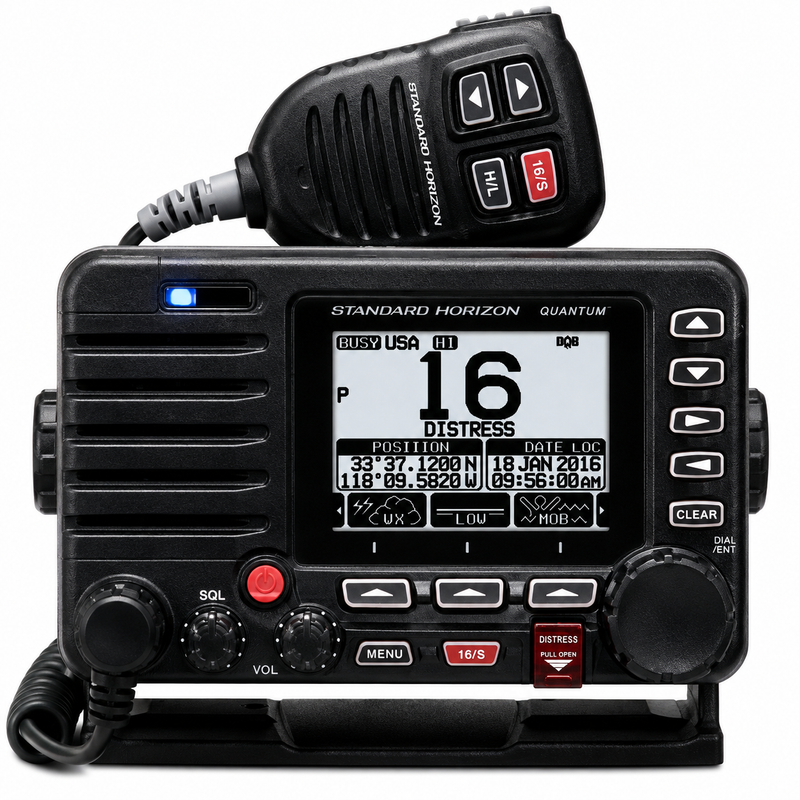

Standard Horizon GX6000 Quantum AIS Fixed VHF Radio with NMEA 2000

The Standard Horizon GX6000 Quantum AIS is a commercial-grade fixed-mount VHF radio built for serious offshore and bluewater use. It combines a dual-channel AIS receiver, integrated GPS, Class D DSC, NMEA 2000® connectivity, a dual-zone 25W PA/loud hailer, and IPX8 submersible construction in a single helm-station unit — with the flexibility to support up to two wired or five total second-station microphones for multi-helm and flybridge installations.

AIS & GPS

• Integrated dual-channel AIS receiver — monitors both AIS channels simultaneously for complete vessel traffic awareness; no targets are missed during channel switching
• Programmable CPA and TCPA collision avoidance alarms — alerts when a tracked vessel reaches a defined closest point of approach or time threshold
• Integrated GPS receiver — provides GPS compass, waypoint navigation, and GPS status pages; position data feeds DSC distress calls automatically

DSC & NMEA Connectivity

• Class D DSC — position-linked distress calling with dedicated CH70 monitoring
• Integrated NMEA 2000® interface — full PGN support for navigation, GPS, AIS, and DSC functions; integrates with chartplotters, autopilots, and onboard instrument networks
• NMEA 0183 compatible

PA / Loud Hailer

• Dual-zone 25W PA/Loud Hailer — drive two separate speaker zones independently; includes preprogrammed fog signals and listen-back function

Second Station Capability

• Up to 2 wired RAM4 microphones — for flybridge, cockpit, or secondary helm stations (sold separately)
• Up to 4 wireless RAM4W microphones — for flexible, cable-free second station installations (sold separately)
• Front panel microphone extension — front mic can be relocated to the rear panel and extended up to 20 ft using the MEK-4 mic extension kit (sold separately)

Construction & Audio

• Submersible IPX8 — rated to 5 ft (1.5 m) for 30 minutes; suitable for exposed helm stations and open-cockpit installations
• 80 dB commercial-grade receiver — high sensitivity for reliable reception in challenging RF environments
• Integrated 32-code and 4-code voice scrambler — for private channel communications
• NOAA Weather channels with Weather Alert

Related Products

• Standard Horizon GX2410GPS Matrix Fixed VHF Radio with AIS & GPS — step-down model with single-channel AIS, 30W single-zone PA, and single wired second station
• Shakespeare 5309R Galaxy VHF Marine Antenna
• Shakespeare 5226XT Galaxy VHF Marine Band Antenna
• Shakespeare 5218 Black 19" VHF Marine Antenna

Parts Desk Insights

Best use case: The GX6000 is the right choice for larger vessels — typically 40 ft and up — where multi-helm operation, dual-zone PA, and dual-channel AIS are priorities. The dual-channel AIS receiver is the key differentiator over the GX2410GPS: it monitors both AIS channels simultaneously, eliminating the brief blind spot that occurs when a single-channel receiver switches between channels. This matters most on busy commercial waterways, in shipping lanes, and during offshore passages where missing an AIS target even briefly is a real risk. The dual-zone PA is valuable on vessels with separate cockpit and flybridge speaker circuits. The IPX8 submersible rating makes it the better choice for open-cockpit sportfishers and center consoles where the helm is fully exposed. Boaters on smaller vessels or tighter budgets who don’t need dual-channel AIS or dual-zone PA should consider the GX2410GPS instead. RAM4, RAM4W, and MEK-4 accessories are sold separately and not included.
