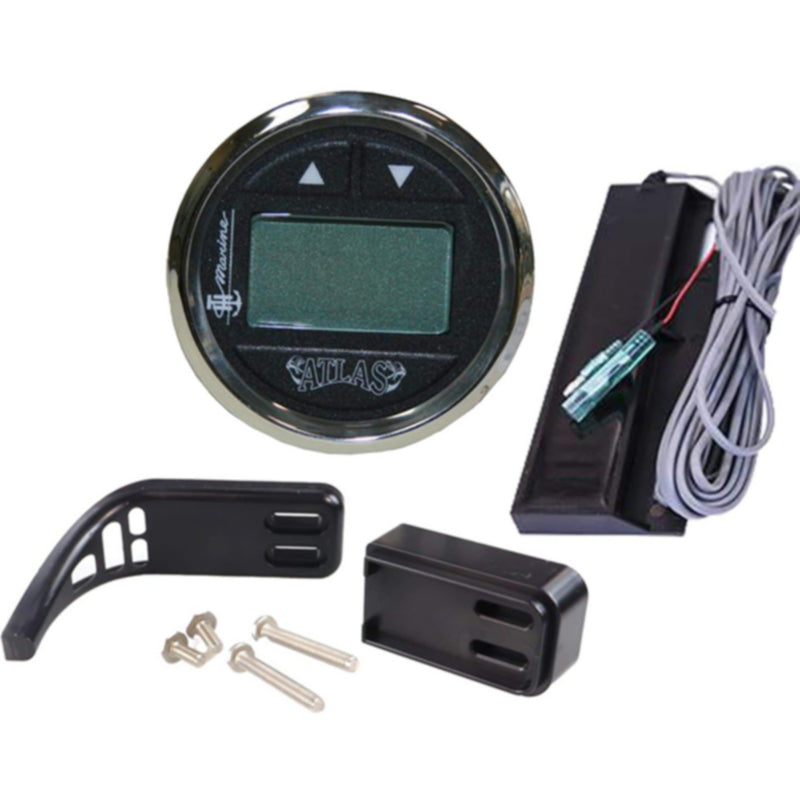

T-H Marine Atlas Series Digital Position Gauge Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
T-H Marine ATLAS® Series Digital Position Gauge Kit provides a clear digital LED readout of your ATLAS hydraulic jack plate height—so you can dial in your outboard’s setup with confidence.
Key Features
- Digital LED position gauge for ATLAS® hydraulic jack plates
- Readout range 0–20, with each number indicating a 1/4" rise
- Pre-drilled ATLAS® jack plates are designed to accept the sensor for streamlined installation
- High-visibility digital display for at-a-glance monitoring on the water
Product Compatibility
- Outboard motor parts and accessories
- ATLAS® hydraulic jack plates (position monitoring)
Product Details
- Product type: Digital LED position gauge kit for ATLAS hydraulic jack plates
- Range: 0–20
- Increment: 1/4" rise per number
- Fitment notes included with ATLAS gauge kit systems: ATLAS jack plates are predrilled to accept sensors
- Variant SKU: 232-FAGK2SSDP
Parts Desk Insights
Best Use Case: Ideal for boaters who want real-time feedback of jack plate height adjustments—useful for dialing in hole shot and running attitude during changing conditions.
Common Issues: If you’re installing alongside an existing jack-plate setup, confirm the jack-plate model is compatible with the gauge kit system and verify the sensor interface points on your ATLAS plate match the predrilled provisions before final mounting.
