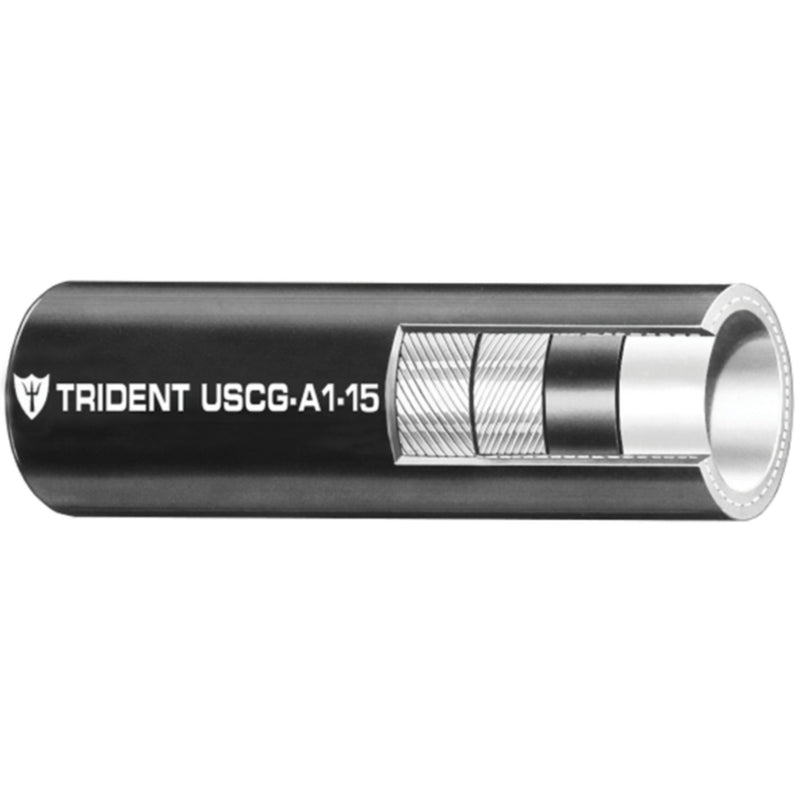

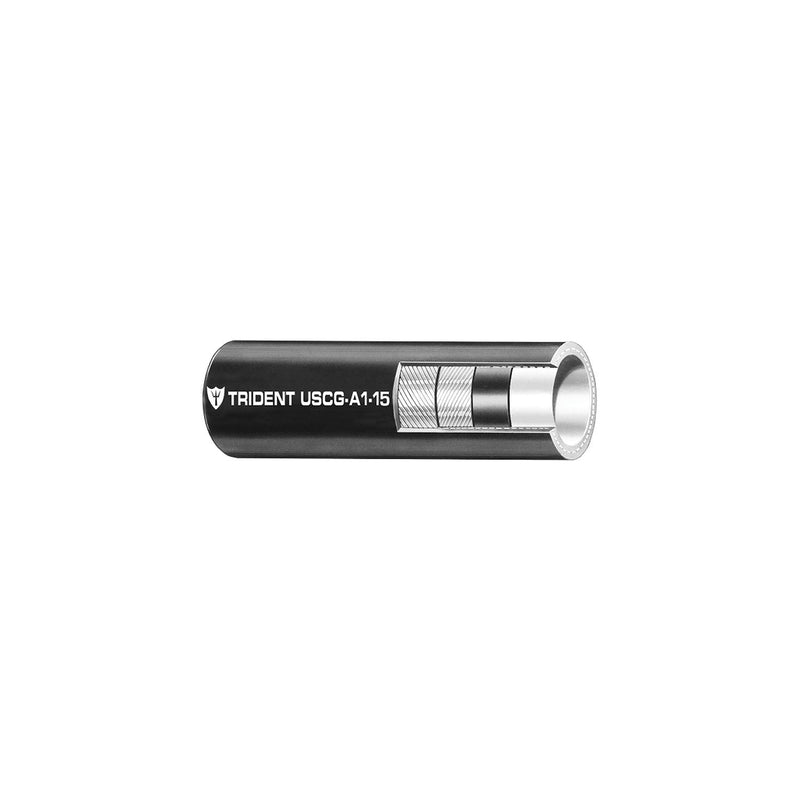

Trident 3650586FT Type A1 Barrier Lined Fuel Hose, 5/8" x 50'
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Overview
Barrier-lined marine fuel hose designed for low permeation fuel transfer and supply. This A1-rated hose features a barrier liner on the inside surface with two spiral reinforcements, delivering durability and resistance to fuels, heat, cold, ozone, aging and permeation. Meets key industry standards and comes with a 5-year warranty.
Key Features
- Barrier-lined interior with barrier liner for low permeation
- Two spiral reinforcement for durability
- Resistant to fuels, fire, heat, cold, ozone, aging and permeation
- CE certified; CARB & EPA compliant
- SAE J1527, USCG Type A1, ISO 7840 A1, ABYC H-24 & H-33 compliance
- 5-year warranty
- Inside diameter 5/8 in; outside diameter 1 in; length 50 ft
- Working pressure 100 psi
Compatible Applications
- Marine fuel line and transfer hose applications
- Fuel system connections on boats requiring barrier-lined A1 hose
- Applications needing low permeation, barrier-lined hoses for fuels
Product Details
- Inside diameter: 5/8 in (0.625 in)
- Outside diameter: 1 in
- Length: 50 ft
- Working pressure: 100 psi
- Construction: two spiral reinforcements with barrier liner on the inner surface
- Barrier-lined, low permeation hose for marine fuel use
- Certifications: CE, CARB & EPA, SAE J1527, USCG Type A1, ISO 7840 A1, ABYC H-24 & H-33
- Warranty: 5-year
Parts Desk Insights
Best Use Case: Ideal for marine fuel systems that require an A1-rated barrier-lined hose with low permeation and compliance to major standards (SAE J1527, USCG Type A1, ISO 7840 A1, ABYC H-24/H-33).
Common Issues: Permeation and wear can occur if the hose is damaged or improperly installed. Inspect for nicks, cuts or kinks and ensure proper routing and clamps to maintain barrier integrity.
Related Products & Accessories
- Browse related items in Plumbing & Engine Hoses - No related products provided; explore the Plumbing category for hoses and accessories.
