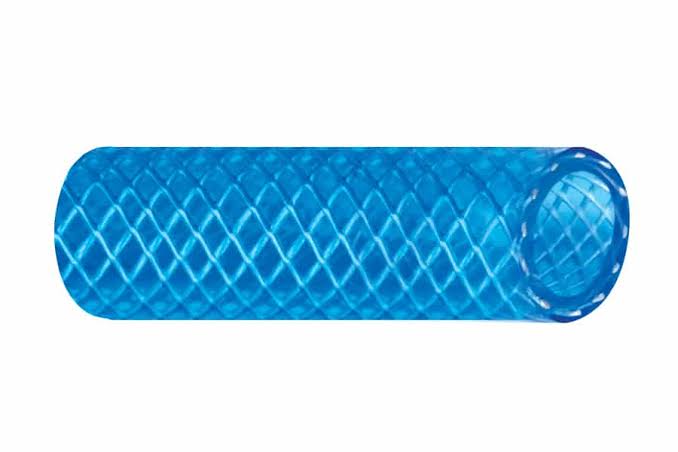

Trident Marine Series 165 Reinforced PVC Cold Water Hose – 1/2 in. x 50 ft
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Trident Marine Series 165 Reinforced PVC Cold Water Hose – 1/2 in. x 50 ft
| Part Number | 165-0126 |
| Brand | Trident Marine |
| Series | 165 Blue Reinforced PVC Cold Water Hose |
| SKU | TRI-165-0126 |
| UPC | 704917023946 |
| Inside Diameter | 1/2 in. / 12.7 mm |
| Outside Diameter | ~0.777 in. / 19.6 mm |
| Length | 50 ft / 15.24 m |
| Construction | 3-ply polyester reinforced PVC |
| Color | Translucent blue (cold-water identification) |
| Safe Working Pressure | 250 PSI |
| Temperature Range | −18°F to 149°F / −28°C to 65°C |
| Minimum Bend Radius | ~0.98 in. / 25 mm |
| System | Marine pressurized cold-water plumbing |
What This Hose Is For
Trident Series 165 is a reinforced PVC cold-water hose built for pressurized marine potable-water and general cold-water plumbing installations. Its FDA-grade tube is non-toxic, odorless, and tasteless — safe for onboard drinking water systems. The translucent blue color-coding makes it easy to identify cold-water runs at a glance, and the 3-ply polyester reinforcement keeps it stable under pressure while remaining flexible enough for routing in confined spaces.
This hose is not rated for below-waterline intake use. Series 165 is designed for cold-water feed, drain, and vent applications above the waterline only.
Compatible Applications
- Pressurized cold potable-water lines
- Freshwater feed lines from tanks to fixtures
- Above-waterline drain lines
- Vent lines
- General above-waterline cold-water plumbing where reinforced PVC is specified
Fitment Notice
This is a 1/2-inch ID hose. Confirm that hose barbs, fittings, and plumbing connections are sized for 1/2-inch hose before ordering. Do not use this hose for hot water, fuel, sanitation discharge, or below-waterline raw-water intake service — those applications require hose specifically rated for those conditions.
When to Replace
- Cracking, hardening, or brittleness in the hose wall
- Bulging, soft spots, or delamination
- Abrasion through the outer wall
- Kinking that restricts flow
- Persistent leakage at fittings or clamp bands
- Discoloration or contamination affecting potable-water suitability
Installation Notes
- Cut the hose squarely for a proper barb fit
- Install over correctly sized 1/2-inch hose-barb fittings
- Use marine-grade hose clamps appropriate to the system pressure
- Maintain a minimum bend radius of approximately 0.98 in. / 25 mm
- Route away from sharp edges, heat sources, and engine components
- Do not use below the waterline or for hot-water service
Service Interval
Inspect annually or at each haul-out. For potable-water systems, also inspect if water taste or odor changes. Replace at the first sign of cracking, hardening, bulging, or leakage — do not wait for failure on a pressurized line.
Technical FAQ
Is this hose safe for drinking water?
Yes. The Series 165 tube is FDA-grade — non-toxic, odorless, and tasteless — making it suitable for pressurized potable-water lines aboard a vessel.
Can I use this hose below the waterline?
No. Series 165 is not recommended for below-waterline service. Below-waterline intake applications require hose specifically rated and constructed for that use (such as USCG Type A or wet exhaust hose for the applicable system).
Can I use Series 165 for hot water lines?
No. The temperature rating tops out at 149°F / 65°C. For hot-water lines, use hose specifically rated for continuous hot-water service at your system’s operating temperature.
Why is the hose blue?
The translucent blue color is a marine-standard cold-water identifier. It lets you distinguish cold-water runs from hot-water (typically red or striped) and other system hoses when tracing lines in a bilge or cabinet.
What fittings does this hose work with?
Standard 1/2-inch hose-barb fittings in bronze, stainless, or plastic rated for potable-water service. Confirm barb sizing matches the 1/2-inch ID before installing.
Parts Desk Insights
Series 165 is the right call for onboard cold freshwater plumbing where you want a potable-water-safe, colour-coded hose that holds up under normal water-system pressure. The blue colour-coding is genuinely useful in a busy bilge or cabinet — it makes tracing cold-water runs quick without having to follow every line back to the source. The thing to watch: customers occasionally try to use this for below-waterline intake or hot-water lines because it looks like general-purpose hose. It is not rated for either. If the installation is below the waterline or involves hot water, they need a different product entirely.
