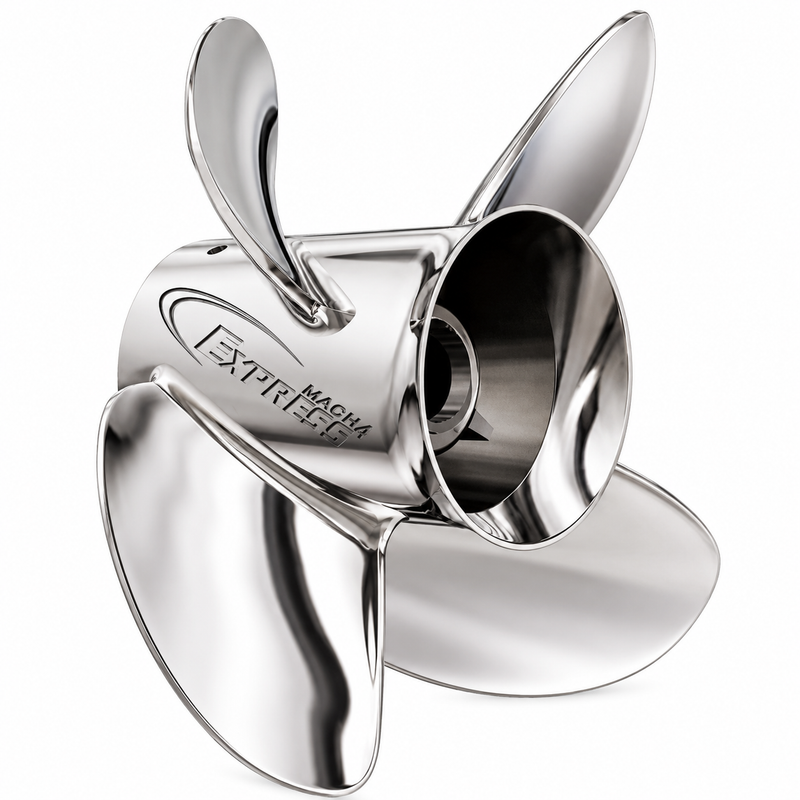

Express Mach4 Propeller 14.5x17 – 4-Blade Stainless Steel, LH Rotation | 90–300+hp (4.75" Gearcase)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Express Mach4 Propeller — 14.5 x 17, 4-Blade Stainless Steel, Left-Hand Rotation
The Express Mach4 is a premium 4-blade stainless steel propeller engineered with a patented Dual Geometry design — delivering the hole shot, handling, and load-carrying advantages of a 4-blade without the top-end speed penalty that typically comes with it. Built for high-horsepower outboards and sterndrives from 90 to 300+hp with 4.75-inch gearcases.
This is the left-hand (counter-rotation) version. For twin-engine setups, pair with the Express Mach4 14.5x17 RH Rotation.
Best Use Case
The 17-pitch Mach4 is the ideal all-around choice for watersports boats, tri-toons, bay boats, and sterndrive applications where you need strong acceleration, confident cornering, and the ability to carry a full load without losing top-end speed. It’s particularly well-suited to twin-engine setups running counter-rotating props, and to any application where stern lift and rough-water stability matter as much as straight-line speed.
Dual Geometry — How It Works
Most 4-blade props sacrifice top speed for better hole shot. The Mach4 solves this with two distinct blade geometries in a single hub: two blades use an aggressive variable-rake design for explosive acceleration and cornering grip, while the other two use an offshore-style design for high-speed efficiency and maximum stern lift. The result is a 4-blade that matches 3-blade top-end speed while outperforming it in every other condition.
Key Features
- TP17™ Proprietary Stainless Steel — Formulated specifically for the Mach4 series. 20% higher chromium content than standard stainless for better corrosion resistance and a higher-gloss finish. Nearly 250% stronger and 5x more durable than conventional stainless steel alloys.
- 4-Blade Dual Geometry Design — Two blade geometries in one prop: aggressive rake for hole shot and handling, offshore profile for speed and stern lift. No top-end speed loss versus a comparable 3-blade.
- Full Hull Lift — Raises the entire hull higher out of the water, reducing wetted surface and maintaining top speed even under heavy loads where a 3-blade can lose up to 3 mph.
- Exceptional Rough-Water Stability — The 4-blade configuration damps out chop and improves tracking in confused seas, reducing driver fatigue on longer runs.
- Large Exhaust Ports — Oversized exhaust flow pathways reduce back-pressure and free up horsepower at wide-open throttle.
- Compatible Engine Brands — Fits COX, Evinrude, Honda, Johnson, Mariner, Mercury, MerCruiser, Nissan, OMC, OXE, Parsun, Suzuki, Tohatsu, Volvo Penta, and Yamaha outboards and sterndrives.
Specifications
- Part Number: 31501741
- Diameter x Pitch: 14.5" x 17"
- Blades: 4
- Material: TP17™ Stainless Steel
- Rotation: Left-Hand (Counter-Rotation)
- Gearcase: 4.75" (large)
- Compatible Engine Range: 90–300+hp outboards & sterndrives
- Hub System: 500-Series hub kit (under 200hp) or 700-Series hub kit (200hp+) required — sold separately
Parts Desk Insights
Hub kit required — not included. This propeller requires either a 500-Series or 700-Series hub kit depending on your engine’s horsepower. Confirm your engine make, model, and year against the application chart to select the correct kit before ordering.
LH rotation — confirm your application. Left-hand rotation props are used on the port side of counter-rotating twin-engine setups, or on specific single-engine applications that call for counter-rotation. If you’re running a single standard outboard, you almost certainly need the RH version. See the Express Mach4 14.5x17 RH Rotation if unsure.
If you’re choosing between pitch options, 17-pitch is the most versatile starting point for this gearcase family. Step down to a 15-pitch for more aggressive acceleration and load carrying, or up to a 19-pitch for higher top-end speed on lighter, faster hulls. Browse the Mach4 lineup by pitch:
- Express Mach4 15 x 15 — 4-Blade SS, RH
- Express Mach4 15 x 15 — 4-Blade SS, LH
- Express Mach4 14.5 x 17 — 4-Blade SS, RH
- Express Mach4 14 x 19 — 4-Blade SS, RH
- Express Mach4 14 x 21 — 4-Blade SS, RH
- Express Mach4 14 x 23 — 4-Blade SS, RH
Also available in the 3-blade Mach3 configuration for this pitch: Express Mach3 14.25 x 17 — 3-Blade SS, LH.
