MasterGuard® Installation Kit 208 — 200 Series, 2.5" Gearcase
The MasterGuard hub kit is the foundation of the interchangeable hub propeller system — a one-time purchase that stays on your engine while you swap propeller housings as needed. Kit 208 is engineered for small outboard engines from 6 to 20hp with 2.5-inch gearcases, and is compatible with Hustler propeller housings in this size range.
Best Use Case
This kit is the right choice for boaters running small outboards (6–20hp, 2.5" gearcase) who want the flexibility to change propeller pitch or replace a damaged prop housing without buying a complete new propeller assembly. It’s especially practical for anglers, kayak-assist motors, and small tenders where prop strikes on shallow-water debris are a real possibility — the hub absorbs the impact and can often be reused, saving the cost of a full propeller replacement.
Key Features
- Lifetime Warranty — The only hub kit in the world backed by a lifetime warranty, with no restrictions except extreme commercial use. Warranted even if the propeller housing is destroyed (consumer use).
- One-Piece Patented Design — Marine bronze splines over-molded with glass-filled nylon in a single piece — eliminates the failures common in multi-part sleeve-and-spline or pressed-in rubber hub systems.
- Reusable After a Prop Strike — The hub absorbs impact energy to protect your lower unit. In most cases it can be reused after a strike; if not, it’s covered under warranty.
- Shock & Vibration Absorption — High-tech polymer cushion reduces shift shock and harmful vibrations that can damage the engine and drive.
- Corrosion-Resistant Bronze Splines — Premium marine bronze construction stands up to saltwater and freshwater environments.
- Small Diameter Design — Allows for greater exhaust flow and improved horsepower output.
- OEM Compatible — Adapts to the factory thrust washer and prop nut. No special tools required.
Specifications
- Part Number: 11100801 (Kit 208)
- Series: 200
- Gearcase: 2.5"
- Compatible Engine Range: 6–20hp outboards
- Compatible Brands: Coleman, Evinrude, Honda, Johnson, Mariner, Mercury, Nissan, Parsun, Suzuki, Tohatsu, Yamaha
- Compatible Propellers: Hustler propeller housings for 2.5" gearcase

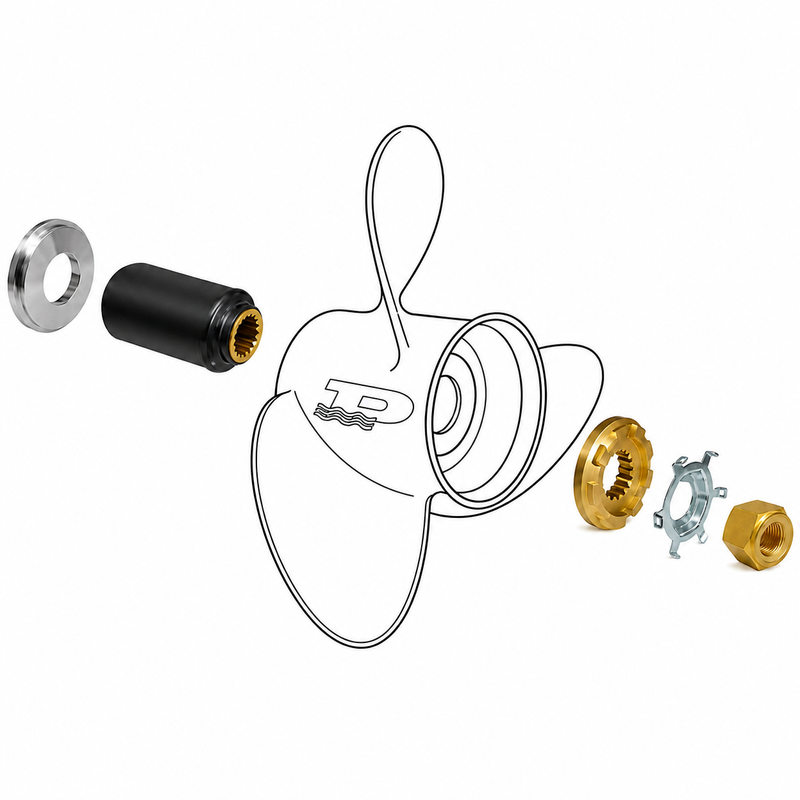

- Includes: Hub assembly, prop nut spacer, installation instructions
Parts Desk Insights
Hub kit only — propeller housing sold separately. This kit is the hub component of the interchangeable system. You will also need to purchase the correct Hustler propeller housing for your desired pitch. Confirm your engine make, model, and year against the application chart to verify compatibility before ordering.
Save up to 33% on future prop replacements. Once this hub is installed, you only need to replace the propeller housing if it’s damaged — not the entire assembly. Browse other MasterGuard kits for different engine sizes and gearcases:
- MasterGuard Kit 201 — 200 Series
- MasterGuard Kit 202 — 200 Series
- MasterGuard Kit 205 — 200 Series
- MasterGuard Kit 206 — 200 Series
- MasterGuard Kit 207 — 200 Series
- MasterGuard Kit 11 — 10 Series (3.5" Gearcase)
- MasterGuard Kit 12 — 10 Series (3.5" Gearcase)
- MasterGuard Kit 21 — 20 Series (3" Gearcase)
