MasterGuard Hub Kit 25 – 20 Series | 9.9–35hp Outboards (3" Gearcase)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
MasterGuard® Installation Kit 25 — 20 Series, 3" Gearcase
The MasterGuard hub kit is the foundation of the interchangeable hub propeller system — a one-time purchase that stays on your engine while you swap propeller housings as needed. Kit 25 is engineered for outboard engines from 9.9 to 35hp with 3-inch gearcases, and is compatible with Hustler and Express Mach3 propeller housings in this size range.
Best Use Case
This kit is the right choice for boaters running small-to-mid outboards (9.9–35hp, 3" gearcase) who want the flexibility to change propeller pitch or replace a damaged prop housing without buying a complete new propeller assembly. It’s especially practical for fishing boats, jon boats, and small aluminum hulls where prop strikes on rocks, sandbars, or shallow-water debris are a real possibility — the hub absorbs the impact and can often be reused, protecting your lower unit and saving the cost of a full propeller replacement.
Key Features
- Lifetime Warranty — The only hub kit in the world backed by a lifetime warranty, with no restrictions except extreme commercial use. Warranted even if the propeller housing is destroyed (consumer use).
- One-Piece Patented Design — Marine bronze splines over-molded with glass-filled nylon in a single piece — eliminates the failures common in multi-part sleeve-and-spline or pressed-in rubber hub systems.
- Reusable After a Prop Strike — The hub absorbs impact energy to protect your lower unit. In most cases it can be reused after a strike; if not, it’s covered under warranty.
- Shock & Vibration Absorption — High-tech polymer cushion reduces shift shock and harmful vibrations that can damage the engine and drive.
- Corrosion-Resistant Bronze Splines — Premium marine bronze construction stands up to saltwater and freshwater environments.
- Small Diameter Design — Allows for greater exhaust flow and improved horsepower output.
- OEM Compatible — Adapts to the factory thrust washer and prop nut. No special tools required.
Specifications
- Part Number: 11200500 (Kit 25)
- Series: 20
- Gearcase: 3"
- Compatible Engine Range: 9.9–35hp outboards
- Compatible Brands: Coleman, Evinrude, Honda, Johnson, Mariner, Mercury, Nissan, Parsun, Suzuki, Tohatsu, Yamaha
- Compatible Propellers: Hustler and Express Mach3 propeller housings for 3" gearcase

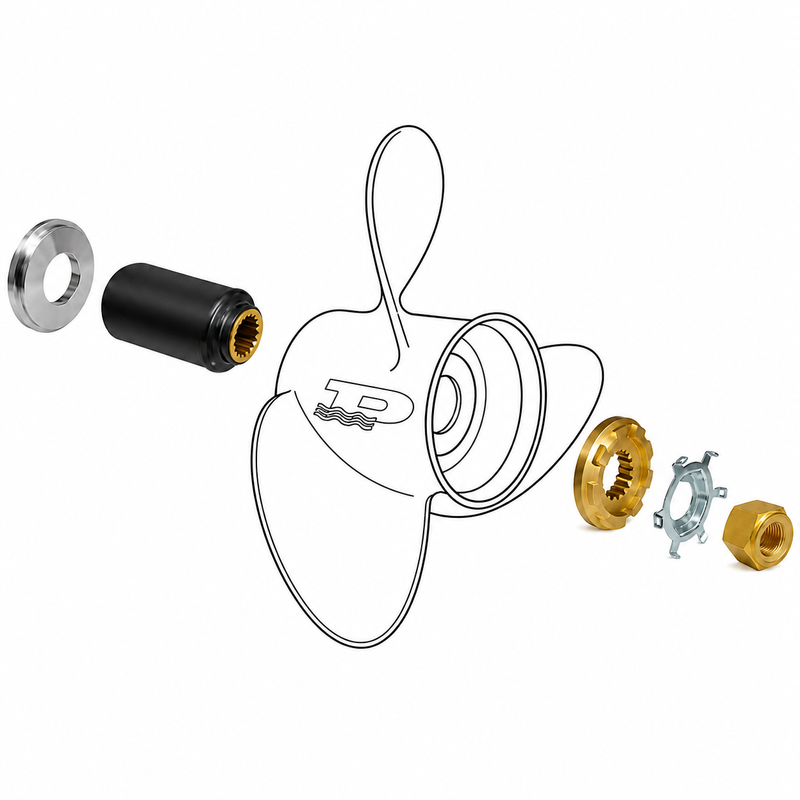

- Includes: Hub assembly, prop nut spacer, installation instructions
Parts Desk Insights
Hub kit only — propeller housing sold separately. This kit is the hub component of the interchangeable system. You will also need to purchase the correct Hustler or Express Mach3 propeller housing for your desired pitch. Confirm your engine make, model, and year against the application chart to verify compatibility before ordering.
Save up to 33% on future prop replacements. Once this hub is installed, you only need to replace the propeller housing if it’s damaged — not the entire assembly. Browse other 20 Series kits and related MasterGuard options:
