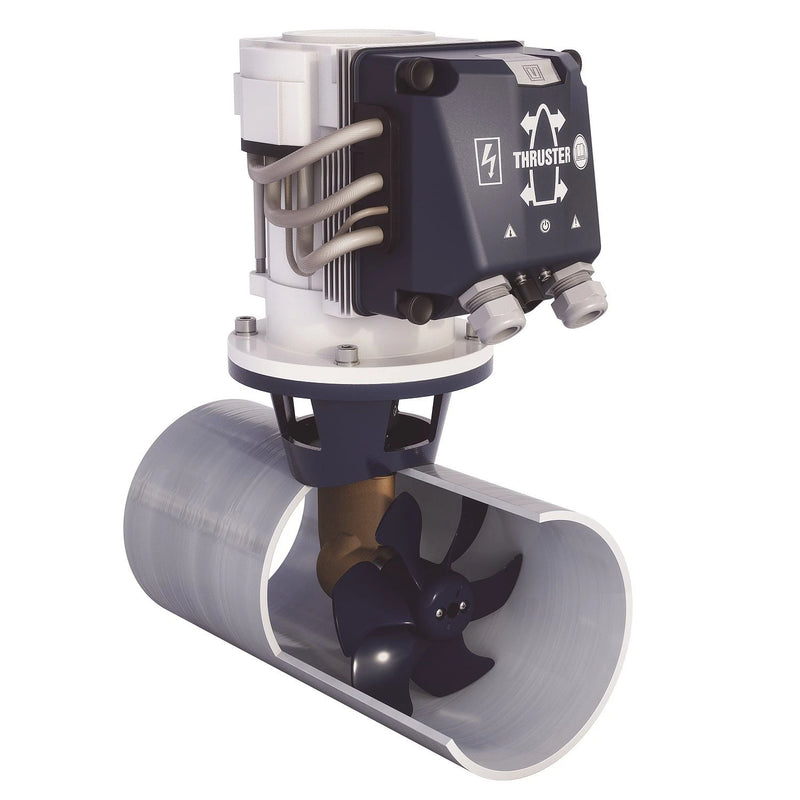

Vetus BowPro 301 AC Bow Thruster – 30 kgf

Vetus BowPro 301 AC Bow Thruster – 30 kgf

Note: Full voltage, tunnel diameter, motor specifications, and installation dimensions for BWOPRO301 should be confirmed from the current Vetus BowPro product datasheet. Contact us or refer to the Vetus documentation for your specific installation requirements.

What This Thruster Is

The Vetus BowPro 301 is an AC-powered tunnel bow thruster delivering 30 kgf of lateral thrust for precise, low-speed maneuvering in harbors, marinas, and confined waters. It installs in a fiberglass tunnel fitted through the bow section of the vessel and is operated from the helm via a joystick or proportional control system. The AC motor draws power from the vessel’s onboard AC system, making this unit suited to boats with shore power or generator capacity capable of supporting the motor start and run current.

Compatible Applications

• Sailboats and motorboats where AC power is available at the bow
• Vessels where 30 kgf of bow thrust is appropriate for the displacement and windage
• Harbor and marina maneuvering in tight berths and lock situations
• Installations where an AC thruster is preferred over DC for reduced cable sizing on long runs

Related Products

• BowPro A Installation Set — installation hardware for BowPro A series thrusters
• Bow Thruster Zinc – Vetus BP 129 — sacrificial anode for Vetus bow thruster tunnels

Fitment Notice

Bow thruster selection depends on multiple vessel-specific factors. Before ordering, confirm:

• Required tunnel diameter for the BWOPRO301 (confirm from Vetus datasheet)
• Available bow void space and hull construction suitability for tunnel installation
• AC supply voltage and phase compatibility with the motor specification
• Available AC current capacity at the bow thruster location
• Vessel displacement and windage — 30 kgf is a specific thrust rating; confirm it is sufficient for the vessel
• Control system compatibility (joystick, proportional, or panel-mount control)

Installation Notes

• Installation requires fitting a tunnel through the bow section — this is a structural modification that should be carried out by a qualified marine engineer or boatyard
• Tunnel must be positioned at the correct depth below the waterline per Vetus specifications to prevent ventilation under thrust
• AC wiring must be sized for the motor start current and run length; consult the Vetus installation manual and a licensed marine electrician
• All below-waterline penetrations must be sealed and bonded in accordance with applicable ABYC or ISO standards
• The tunnel anode should be installed and inspected per Vetus maintenance recommendations

When to Service or Replace

• Reduced or uneven thrust output
• Motor fails to start or trips the AC breaker
• Unusual noise from the thruster tube or propeller
• Water ingress into the motor housing
• Anode fully consumed (inspect annually at haul-out)
• Propeller or seal damage identified during haul-out inspection

Service Interval

Inspect the thruster propeller, tunnel anode, seals, and shaft at each haul-out. Replace the tunnel anode when 50% consumed. Lubricate and inspect shaft seals per the Vetus BowPro service manual. Electrical connections and AC motor contactors should be inspected annually for corrosion and secure terminations.

Technical FAQ

What is the difference between AC and DC bow thrusters?
AC thrusters use the vessel’s 120V or 230V AC supply. They allow smaller-gauge wiring on long cable runs from the stern battery bank but require AC power to be available when maneuvering. DC thrusters run from the vessel’s battery bank directly and are more common on smaller vessels without a generator. For the BowPro 301 AC, confirm that your onboard AC supply can support the motor start and continuous current draw.

How do I size a bow thruster for my vessel?
Thrust selection is based on vessel displacement, LOA, windage, and freeboard. Vetus publishes a selection guide that matches thrust rating to vessel size. 30 kgf is typically appropriate for vessels in the 10–15 m range, but confirm using the Vetus sizing guide for your specific hull.

Does this thruster include a tunnel?
Confirm whether the BWOPRO301 is supplied with a tunnel or whether the tunnel is a separate item. The BowPro A Installation Set includes installation components — verify what is included before ordering.

What control systems are compatible?
Vetus BowPro thrusters are compatible with Vetus joystick panels and proportional control systems. Confirm compatibility with any third-party helm control systems before installation.

Parts Desk Insights

The BowPro 301 is the right call when a customer has AC power available at the bow and wants to avoid running heavy DC cable from the battery bank. The AC configuration reduces wiring cost and complexity on longer installations. The main questions to work through before the order: tunnel diameter and void space in the bow, whether the vessel’s AC supply can handle the start current, and what control panel they plan to use. It’s also worth confirming whether the installation set is included or needs to be ordered separately — the BowPro A Installation Set is a common add-on. Don’t forget the tunnel anode — the Vetus BP 129 zinc is a consumable that gets overlooked until the first haul-out.
