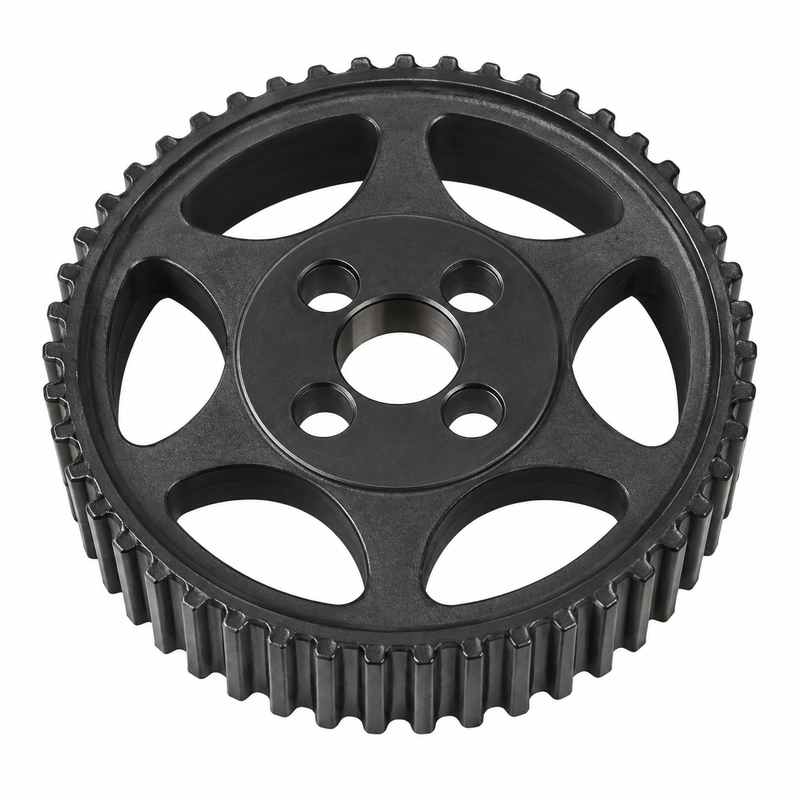

Volvo Penta D3 Camshaft Gear Pulley 8642804
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Details
- Part Number: 8642804
- Brand: Volvo Penta
- Official Product Type: Camshaft Gear Pulley (Timing-Belt Pulley)
- Supersedes: 8631554 — earlier camshaft pulley, used through engine serial number 344632
- Replaced By: 8642804 is the current part number, specified from serial number 344633 onward
- Engine Family: Volvo Penta D3 2.4L 5-cylinder marine diesel
- System: Engine timing — mounts to the camshaft and drives the toothed timing-belt system, maintaining the mechanical timing relationship between the camshaft and the rest of the engine
- Diagram Groups: Appears in both the Timing Gear Housing and Camshaft groups on multiple D3 generations
- Hardware Required: Four 985373 screws — confirm these are included or ordered separately; do not reuse older pulley hardware from 8631554 configurations
- Kit Contents: One camshaft gear pulley, supplied individually (screws not included)
Serial Number Fitment & Supersession
This is a serial-number-dependent fitment. On earlier D3 timing-gear diagrams:
- 8631554 — used through engine serial number 344632
- 8642804 — specified from engine serial number 344633 and later
When updating from 8631554 to 8642804, also order four 985373 screws — Volvo Penta specifies different fasteners for the updated pulley. Confirm both the pulley and hardware against the timing-gear diagram for the specific serial number.
Compatible Applications
Fitment is engine-model, generation, and serial-number specific. Confirm 8642804 in the D3 Timing Gear Housing or Camshaft parts diagram for the exact engine serial number before ordering.
Earlier D3 Applications (A, B, C generations)
- D3-110I-A • D3-110I-B • D3-110I-C
- D3-130A-A • D3-130A-B • D3-130A-C
- D3-130I-A • D3-130I-B • D3-130I-C
- D3-160A-A • D3-160A-B • D3-160A-C
- D3-160I-A • D3-160I-B • D3-160I-C
- D3-190A-B • D3-190A-C
- D3-190I-A • D3-190I-B • D3-190I-C
Later D3 Applications (G generation)
- D3-110I-G
- D3-140A-G • D3-140I-G
- D3-150I-G
- D3-170A-G • D3-170I-G
- D3-200A-G • D3-200I-G
- D3-220A-G • D3-220I-G
Timing System Assembly Context
Related components in the D3 timing-belt and camshaft assemblies:
- 985373 — Pulley screw (qty 4 required)
- 8631554 — Earlier camshaft pulley (used through serial 344632)
- 31258305 — Toothed timing belt (early D3 assemblies)
- 31258306 — Second toothed timing belt (early D3 assemblies)
- 8692561 — Idler pulley
- 31339542 — Tensioner (later D3 assemblies)
When This Part Needs Replacement
- Pulley teeth are visibly worn, chipped, or damaged
- Pulley is cracked or distorted
- Bolt holes are damaged or stripped
- Timing belt failure has damaged the pulley
- Excessive corrosion or mechanical wear is present
- Updating from the earlier 8631554 configuration on applicable serial numbers
Any timing-system damage should prompt inspection of the timing belts, tensioner, idler pulley, camshaft, and all timing fasteners before reassembly.
Installation Notes
Warning: This is a critical engine timing component. Incorrect installation can cause serious internal engine damage.
Verify camshaft and engine timing before removing the original pulley. Use the correct 985373 screws — four required — and do not reuse fasteners from the earlier 8631554 configuration. Inspect the toothed timing belts for cracks, missing teeth, contamination, or glazing and inspect the idler and tensioner assembly at the same time. Do not rotate the crankshaft or camshaft independently unless the Volvo Penta service procedure specifically permits it. Follow the applicable Volvo Penta D3 workshop manual for timing alignment procedures and fastener torque specifications.
Related Parts
- 8631554 — Earlier camshaft pulley (serial through 344632)
- 985373 — Pulley screw ×4
- 31258305 — D3 toothed timing belt
- 31258306 — D3 second toothed timing belt
- 8692561 — D3 idler pulley
- 31339542 — D3 tensioner (later assemblies)
- D3 Timing Belt Kit
- D3 Camshaft
Parts Desk Insight
The serial-number break is the key detail on this part: 8631554 is used through serial 344632, and 8642804 takes over from 344633 onward. If you’re ordering for an early D3 without knowing the serial, confirm it before ordering — these are two different pulleys. The hardware change matters too: Volvo Penta specifies four 985373 screws with 8642804, so if you’re upgrading from the older pulley, the fasteners need to come with it. Since the timing belt and tensioner have to come off to access this pulley, it’s worth doing the full timing-belt service at the same time — the incremental cost of belts and tensioner is small compared with the labour of coming back in for a belt service on a freshly assembled engine.
