Volvo Penta D3 Engine Mount Rubber Cushion 22230030
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Number: 22230030
Brand: Volvo Penta
Official Product Type: Rubber Engine Mount Cushion / Vibration Isolator
System: Engine Mounting
Quantity Required: 2 per applicable engine installation
Supersedes: 21670821 (which superseded 21141907)
Overview

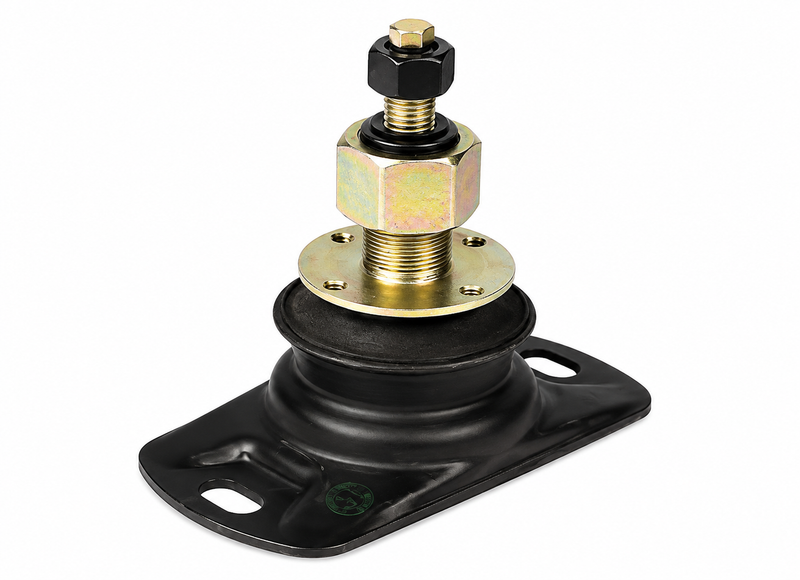

The Volvo Penta 22230030 is a genuine OEM rubber engine mount cushion for selected Volvo Penta D3 marine diesel engines. It sits between the engine mounting bracket and the vessel mounting structure, supporting the engine while isolating normal engine vibration from the hull. Two cushions are required per applicable installation.
This is an engine mount vibration cushion — not a generic rubber isolator. The documented supersession chain is 21141907 → 21670821 → 22230030.
Compatible Applications
- Volvo Penta D3-110I
- Volvo Penta D3-140A, D3-140I
- Volvo Penta D3-150I
- Volvo Penta D3-170A, D3-170I
- Volvo Penta D3-200A, D3-200I
- Volvo Penta D3-220A, D3-220I
- Applies across D, E, F, G, and H-generation D3 configurations depending on engine model
Confirm the complete D3 model, generation suffix, and engine mounting diagram before ordering. Volvo Penta revised D3 engine mount components during production, and surrounding engine brackets can vary even where 22230030 remains the specified cushion.
Serial Number & Fitment Notice
Engine mount configurations vary by D3 model, generation suffix, and serial number range. Confirm fitment using your complete engine model designation, suffix, and serial number against the applicable Volvo Penta D3 engine mounting diagram before ordering.
Superseded Part Numbers
- 21141907 — earliest reference, superseded by 21670821
- 21670821 — previous Volvo Penta cushion number, superseded by 22230030
- 22230030 — current OEM part number
Dimensions & Weight
Approximate weight: 0.5 kg per cushion. Used with M18 mounting hardware (hex nuts, washers, and spring washers) in documented D3 applications. Exact cushion dimensions are not published in current Volvo Penta accessory literature — confirm by part number and serial number match to the engine mounting diagram.
When to Replace
Replace the rubber cushion when inspection shows cracking, separation, excessive compression, deterioration, oil contamination, distortion, or excessive engine movement. Worn engine mounts can contribute to increased vibration, noise, and driveline alignment problems. Inspect both cushions at the same time — if one is worn, the other is likely at a similar service age.
Installation Notes
Inspect the associated engine brackets, mounting studs, nuts, and washers whenever replacing the cushion. Published Volvo Penta diagrams show M18 hex nuts, washers, and spring washers used with 22230030 on applicable D3 installations. Engine alignment should be checked after mount replacement, particularly on installations using a shaft or sterndrive driveline connection.
Related Parts
- Volvo Penta Left-Hand Engine Bracket 21750952 – D3 Diesel Mount — engine mounting bracket used with this cushion on D3 installations
Technical FAQ
Q: How many cushions do I need per engine?
A: Two cushions (22230030) are required per applicable D3 engine installation.
Q: Does 22230030 replace 21670821?
A: Yes. The full supersession chain is 21141907 → 21670821 → 22230030. If your engine currently has 21670821 or 21141907, 22230030 is the current OEM replacement.
Q: What hardware is used with this cushion?
A: M18 hex nuts, washers, and spring washers are documented in Volvo Penta D3 mounting diagrams for this cushion. Inspect and replace any worn or corroded hardware at the same time.
Q: Should I check engine alignment after replacing the mounts?
A: Yes. Engine alignment should always be verified after mount replacement, especially on shaft-drive or sterndrive installations where driveline alignment is critical.
Q: What causes engine mount cushion failure?
A: The most common causes are age-related rubber deterioration, oil contamination (which accelerates rubber breakdown), and excessive engine vibration from other mechanical issues. Inspect the mounts at every major service.
Parts Desk Insights
22230030 is an engine mount vibration cushion — not a generic rubber isolator. The supersession chain (21141907 → 21670821 → 22230030) means customers referencing either older number should be updated to 22230030. Two cushions are required per installation — confirm the customer is ordering the correct quantity. After mount replacement, engine alignment must be checked, particularly on shaft-drive installations. If a customer is replacing mounts due to excessive vibration, also recommend checking the engine for other vibration sources before closing the job.
