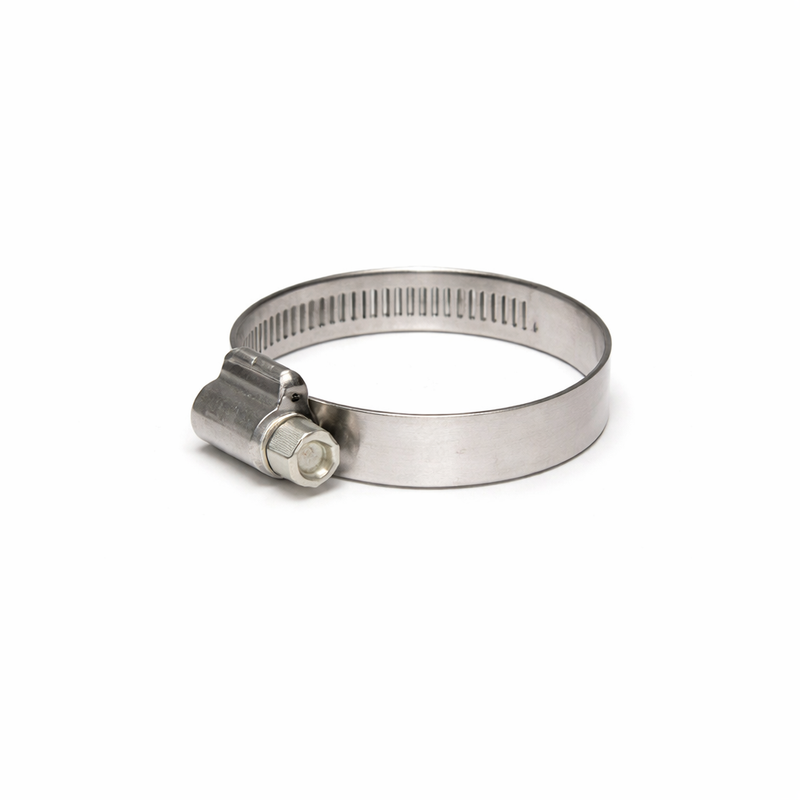

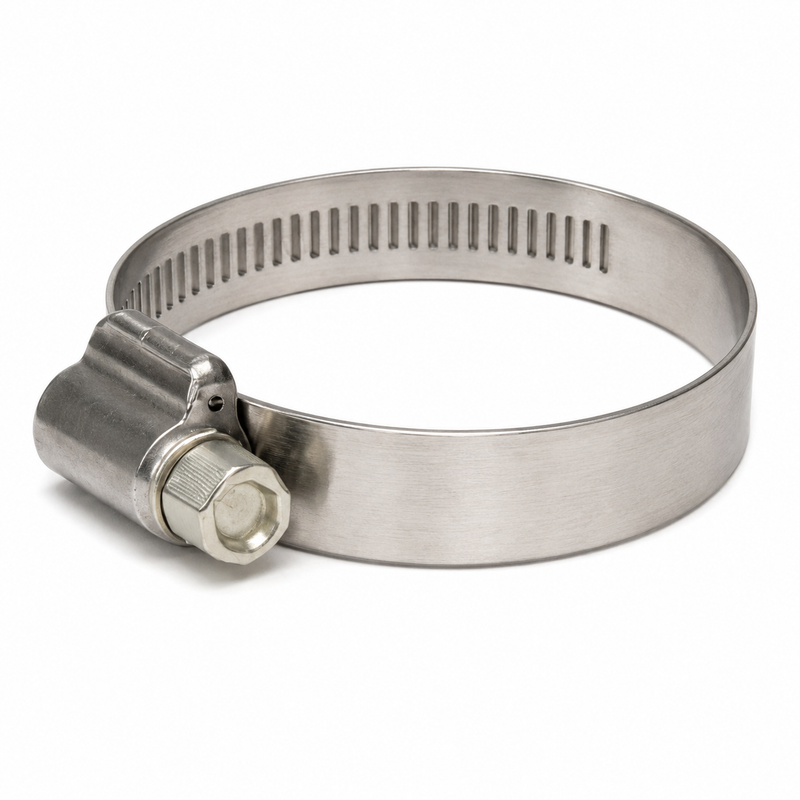

Volvo Penta Hose Clamp 22274885
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Number: 22274885
Brand: Volvo Penta
Official Product Type: Hose Clamp
System: Cooling Water, Seawater, and Exhaust Hose Assemblies
Supersedes: 961670, 841057
Overview
The Volvo Penta 22274885 is a genuine OEM hose clamp used across a variety of Volvo Penta marine cooling, seawater, and exhaust hose assemblies. It is documented in cooling-water intake, heat exchanger, exhaust manifold, and seawater system applications across multiple Volvo Penta engine generations. Sold individually.
Volvo Penta uses several similar hose clamps in neighboring connections — confirm the hose outside diameter and exact diagram position before ordering. Do not substitute by appearance alone.
Compatible Applications
- Volvo Penta AD31L-A, AD31P-A (cooling-water intake, 32 mm connection)
- Volvo Penta AD41L-A, AD41P-A
- Volvo Penta D41L-A
- Volvo Penta TAMD31-series
- Volvo Penta TAMD41-series
- Volvo Penta TMD31L-A, TMD41L-A
- Selected Volvo Penta D3 exhaust manifold and heat protection assemblies
This clamp is used across multiple Volvo Penta engine generations and hose systems. Confirm the hose outside diameter and exact diagram position before ordering.
Serial Number & Fitment Notice
Volvo Penta uses several similar hose clamps — including 22274887 and 961669 — in neighboring cooling and exhaust connections. Appearance alone is not a reliable fitment check. Confirm by hose outside diameter and exact diagram position for your engine model and serial number.
Superseded Part Numbers
- 841057 — earlier Volvo Penta reference, superseded by 22274885
- 961670 — previous Volvo Penta number, superseded by 22274885
- 22274885 — current OEM part number
Dimensions & Weight
Approximate weight: 0.029 kg. On AD31L-A/AD31P-A cooling-water intake applications, this clamp is associated with a 32 mm hose connection. This dimension should not be assumed for every installation using this clamp — confirm by diagram position and hose outside diameter.
When to Replace
Replace the clamp if it is corroded, distorted, stripped, cracked, or unable to maintain proper clamping pressure. Always replace hose clamps removed from critical cooling or exhaust connections during service if their condition is questionable — a failed clamp on a seawater or exhaust hose can cause rapid overheating or water ingress.
Installation Notes
Inspect the hose beneath the clamp for hardening, cracking, swelling, or compression damage before reinstalling. Position the clamp over the proper hose barb or sealing area and tighten sufficiently to secure the hose without cutting or deforming it. Follow the applicable Volvo Penta service procedure for torque or tightening guidance.
Related Parts
- Volvo Penta Hose Clamp 22274887 — neighboring hose clamp used in adjacent cooling and exhaust connections; confirm which applies to your diagram position
Technical FAQ
Q: Does 22274885 replace 961670?
A: Yes. 22274885 is the current Volvo Penta OEM part number that supersedes 961670 and the earlier reference 841057.
Q: What is the hose diameter for this clamp?
A: On AD31L-A/AD31P-A cooling-water intake applications, this clamp is associated with a 32 mm connection. However, this dimension should not be assumed for all applications — confirm by diagram position and hose outside diameter for your specific engine.
Q: What is the difference between 22274885 and 22274887?
A: Both are Volvo Penta OEM hose clamps used in neighboring cooling and exhaust connections. They are different sizes or configurations — confirm which applies to your specific hose connection using the engine parts diagram.
Q: Should I replace hose clamps during a hose replacement?
A: Yes — replacing clamps at the same time as the hose is good practice. Reused clamps on a new hose can cause leaks if the clamp has deformed or corroded.
Parts Desk Insights
22274885 is used across more than one Volvo Penta hose system, so the safest identification method is the exact engine diagram and hose location. On older AD31 cooling-water intake applications it is associated with a 32 mm connection, but that dimension should not be assumed for every installation. When a customer is replacing cooling or exhaust hoses, recommend checking all clamps in the assembly and replacing any that are corroded or questionable — clamps are inexpensive insurance against a repeat job.
