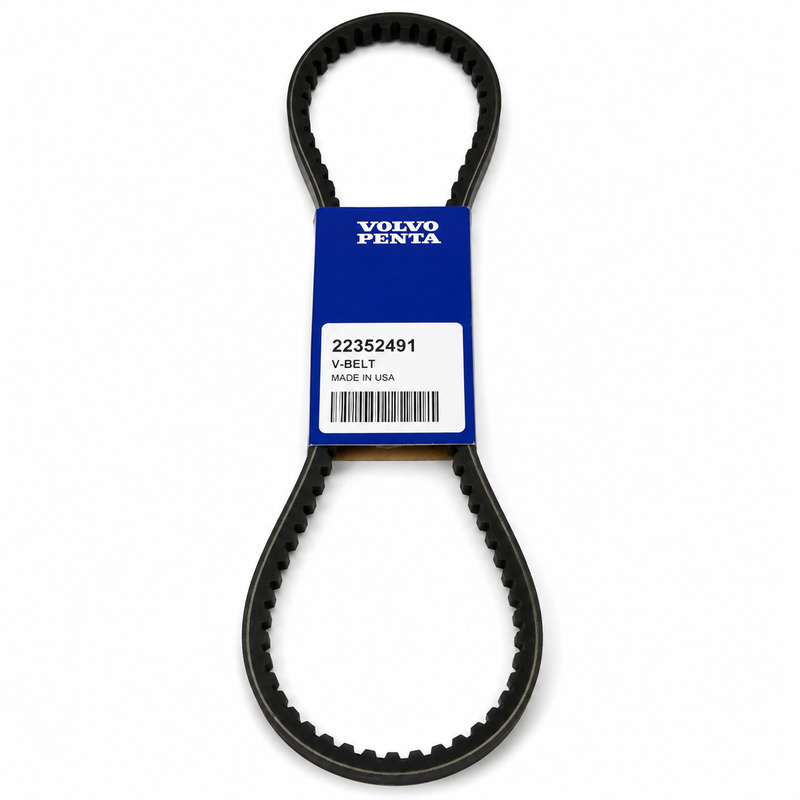

Volvo Penta D3 Power Steering Pump Belt 22352491
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Number: 22352491
Brand: Volvo Penta
Official Product Type: V-Ribbed Belt – Servo / Power Steering Pump Drive
System: Power Steering / Servo Pump Accessory Drive
Diagram Position: Item 4 in the D3 steering assembly (D3-140A-D reference)
Supersedes: 21210222
Overview
The Volvo Penta 22352491 is a genuine OEM V-ribbed belt for the servo / power steering pump drive on selected Volvo Penta D3 marine diesel engines. It is positioned in the steering and servo pump assembly — not the main alternator drive position. Volvo Penta uses different V-ribbed belts for the alternator and power steering pump on the same D3 engine family, so matching the belt to the exact diagram position is essential.
Compatible Applications
- Volvo Penta D3-110I-D, D3-110I-E, D3-110I-F
- Volvo Penta D3-140A-D/E/F/G/H, D3-140I-D/E/F
- Volvo Penta D3-150I-D, D3-150I-E, D3-150I-F
- Volvo Penta D3-170A-D/E/F/G/H, D3-170I-D/E/F
- Volvo Penta D3-200A-D/E/F/G/H, D3-200I-D/E/F
- Volvo Penta D3-220A-D/E/F/G/H, D3-220I-D/E/F
- D3 engines equipped with the servo / power steering pump arrangement
Confirm the full D3 model, suffix, and accessory drive configuration before ordering. 22352491 is specifically for engines using the servo / power steering pump arrangement and should not be substituted for other D3 V-ribbed belts.
Serial Number & Fitment Notice
Volvo Penta uses multiple V-ribbed belts on the D3 engine family for different accessory drives. Confirm by complete engine model, suffix, and serial number against the applicable Volvo Penta D3 accessory drive diagram. Do not order by belt appearance or engine model alone.
Superseded Part Numbers
- 21210222 — previous Volvo Penta power steering pump belt, superseded by 22352491
- 22352491 — current OEM part number
Dimensions & Weight
Approximate weight: 0.7 kg. Multi-rib V-ribbed belt. Exact belt length and rib count are not published in current Volvo Penta accessory literature — confirm by part number and serial number match to the D3 steering assembly diagram.
Service Interval
Inspect the power steering pump belt at every major service interval. Replace if inspection shows cracking, glazing, frayed ribs, missing rib material, contamination, stretching, or persistent belt noise. Belt condition should also be checked whenever servicing the power steering pump, pulley, or related cooler system.
Installation Notes
Inspect pulley condition and alignment before installing the new belt. Ensure every rib is correctly seated in the pulley grooves before operating the engine. Follow the applicable Volvo Penta D3 service procedure for belt routing and tensioning.
Related Parts
- Volvo Penta Power Steering Pump 22797782 — power steering pump driven by this belt on D3 installations
- Volvo Penta D3 V-Ribbed Accessory Belt 22283751 — D3 alternator drive belt; different position, not interchangeable with 22352491
Technical FAQ
Q: Is this the same as the D3 alternator belt?
A: No. 22352491 is the servo / power steering pump belt. The D3 alternator belt is a different part (22283751). Both are V-ribbed belts used on the same D3 engine family but in different accessory drive positions.
Q: Does 22352491 replace 21210222?
A: Yes. 22352491 is the current Volvo Penta OEM part number that supersedes 21210222.
Q: How do I confirm this is the right belt for my D3?
A: Confirm by engine model, suffix, and serial number using the Volvo Penta D3 steering assembly diagram. The belt is at item 4 in the steering assembly on D3-140A-D reference diagrams.
Q: What happens if I install the wrong V-ribbed belt?
A: An incorrect belt may not fit the pulley correctly, can slip or come off under load, and may cause power steering pump failure or belt damage. Always confirm the correct belt by diagram position before ordering.
Parts Desk Insights
The key distinction with 22352491 is that it is the D3 servo / power steering pump belt — not the alternator belt. Volvo Penta uses other V-ribbed belts on the same D3 engine family for alternator and other accessory drives, and they are not interchangeable. When a customer orders this belt, recommend inspecting the power steering pump and pulley at the same time. Also confirm the customer is not confusing this with the alternator belt (22283751) — both are D3 V-ribbed belts but serve different drive positions.
