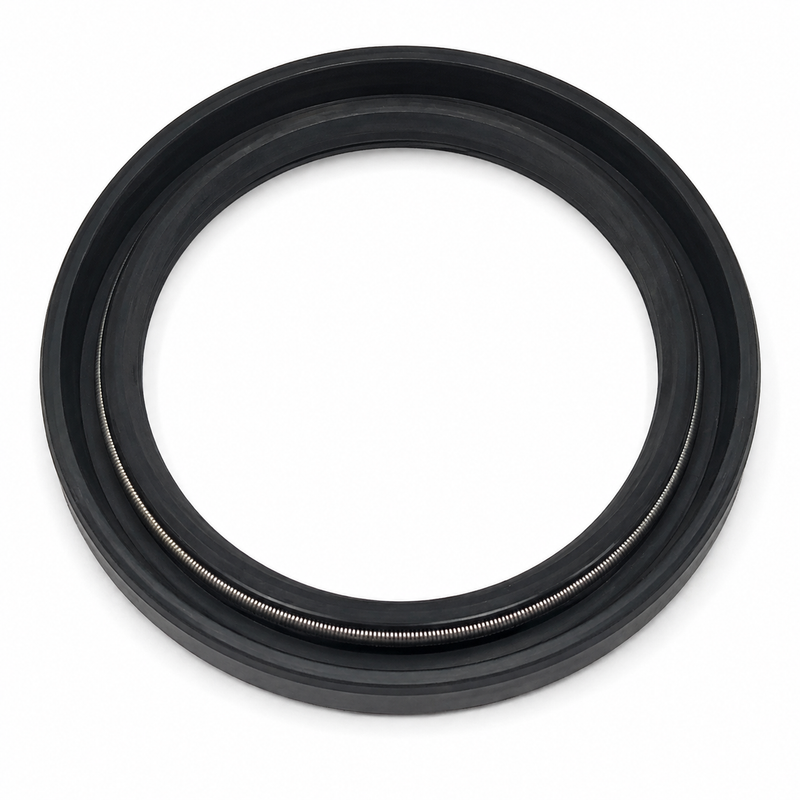

Volvo Penta DPH/DPR/DPI Water-Side Sealing Ring — OEM Part 22876835
Part Number: 22876835
Brand: Volvo Penta
Official Product Type: Lower Gear Water-Side Sealing Ring
Supersedes: 3863083
Position: Final sealing ring in the lower-gear shaft seal stack, installed after spacer washer 22484527
This is the genuine Volvo Penta OEM water-side sealing ring for the lower-gear shaft sealing system on DPH, DPR, DPI, and selected IPS drives. It is the last seal in the multi-piece shaft sealing stack and is included in the complete Sealing Ring Kit 23553896. It replaces the earlier sealing ring 3863083 and should not be confused with companion seal 22876833, which replaces 3863082 and sits earlier in the stack.
Compatible Applications
- DPH-D / DPH-D1
- DPH-E
- DPI-A
- DPR-D
- IPS20-E
- IPS30-E
Confirm the exact drive model and serial number before ordering. The shaft-sealing assembly uses multiple closely related seals and spacer washers — each must be installed in its correct position per the parts diagram.
When This Part Needs Replacement
Replace this sealing ring during any lower-unit resealing service, or when inspection reveals:
- Gear-oil leakage from the lower unit
- Water intrusion into the drive
- Hardened or damaged seal lips
- Shaft or bearing-housing service
- Wear discovered during a lower-gear overhaul
Seal Stack & Related Parts
This seal is the final component in a sequenced multi-seal assembly. The full stack order is:
- Spacer Washer 22484526
- Sealing Ring 22876829 (inner shaft seal)
- Sealing Ring 22876831
- Sealing Ring 22876833
- Spacer Washer 22484527
- Sealing Ring 22876835 (this item — water-side, final position)
- Grease 23407763
- Bearing Box 22173381
Inspect the shaft and bearing-box sealing surfaces before installation. Fit each seal in the orientation specified by the applicable service procedure.
Complete seal kit: Sealing Ring Kit 23553896 includes this seal and all related stack components — the kit is recommended for a full lower-unit reseal.
Part Number History
- 22876835 — Current OEM part number (this item)
- 3863083 — Previous part number, superseded by 22876835
Parts Desk Insights
Best use case: This is the correct seal when replacing only the water-side final position in the stack and the surrounding seals have been confirmed serviceable. For a complete lower-unit reseal, the kit 23553896 is the more efficient option and ensures the entire stack is renewed in one service.
Common customer questions: This seal is frequently confused with 22876833, which sits earlier in the same stack and replaces 3863082. The two are different parts at different positions. The quickest way to confirm the right seal: 22876835 replaces 3863083 and is the last seal before the bearing box; 22876833 replaces 3863082 and is installed before the second spacer washer. When in doubt, the complete kit 23553896 covers both positions and eliminates the guesswork.
