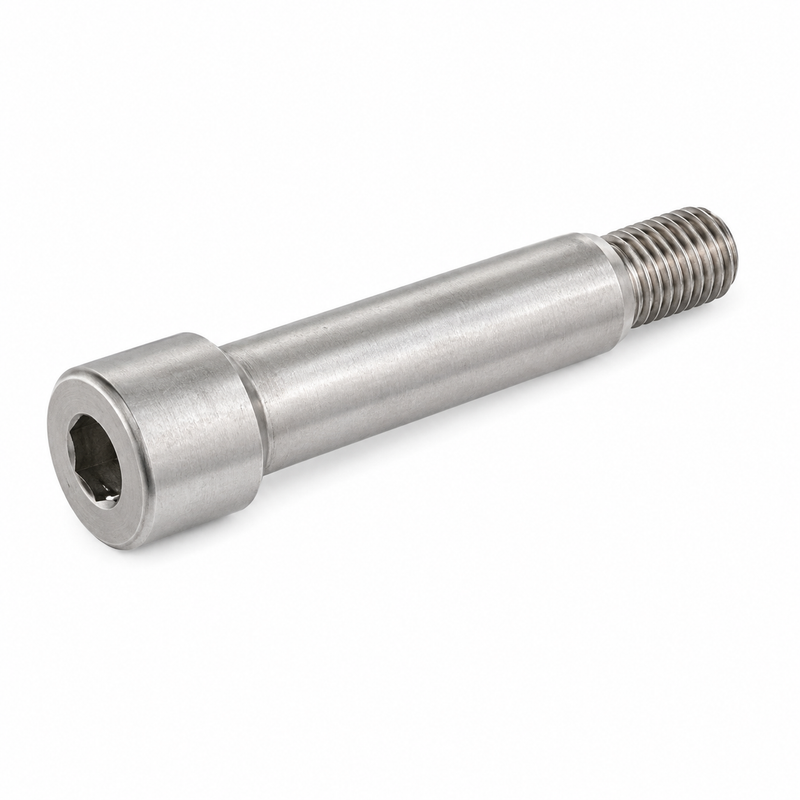

Volvo Penta DPI-A Transom Shield Pivot Pin — OEM Part 22880080
Part Number: 22880080
Brand: Volvo Penta
Official Product Type: Transom Shield Pivot Pin
Diagram Position: 14 in the DPI-A transom shield assembly
Sold: Individually
This is the genuine Volvo Penta OEM pivot pin for the DPI-A transom shield assembly, occupying the main pivot position (position 14) in the shield's pivot and suspension hardware. It works alongside bushings, O-rings, and retaining hardware to form the primary pivot point of the transom shield. It is a different part from the companion Pivot Pin 22879573, which occupies position 17 in the same assembly.
Compatible Applications
- Volvo Penta DPI-A
- TSK DPI-A transom shield assemblies
Confirm the exact drive and transom-shield model before ordering. The DPI-A shield uses two separate pivot pins — 22880080 (position 14) and 22879573 (position 17). They are not interchangeable.
When This Part Needs Replacement
Inspect the pivot pin whenever the transom shield is disassembled for service. Replace if you find:
- Corrosion or pitting on the pin surface
- Scoring at bushing contact surfaces
- Excessive play in the pivot assembly
- Distortion or impact damage
- Wear discovered during a transom-shield overhaul
Assembly & Related Parts
This pin is part of the DPI-A transom shield pivot and suspension assembly. Related components include:
- Bushing 23015349
- Bushing 3863093
- Lock Nut 990990
- Washer 852866
- O-Ring 976107
- Pivot Pin 22879573 (companion pin, position 17)
- Set Screw 984390
- O-Ring 975664
- Lubricating Nipple 940194
Inspect the bushings and sealing components for wear before installing the new pin. Lubricate the pivot points according to the applicable service procedure.
Related shield kit: Transom Shield Kit 22846234 covers the broader DPI-A shield assembly and may be the more efficient option for a full shield overhaul.
Parts Desk Insights
Best use case: This is the correct replacement when the DPI-A transom shield pivot assembly is being serviced and the diagram or serial-number lookup confirms position 14. It is the main pivot pin in the shield — not a steering linkage or engine-mounted component — so confirming the assembly diagram position before ordering is the most reliable fitment check.
Common customer questions: The DPI-A shield contains two pivot pins — this one (22880080, position 14) and 22879573 (position 17). They are similar in appearance but occupy different locations and are not interchangeable. Always confirm the diagram position number to ensure the correct pin is ordered. When both pins are being replaced during a full overhaul, ordering both at the same time avoids a second service call.
