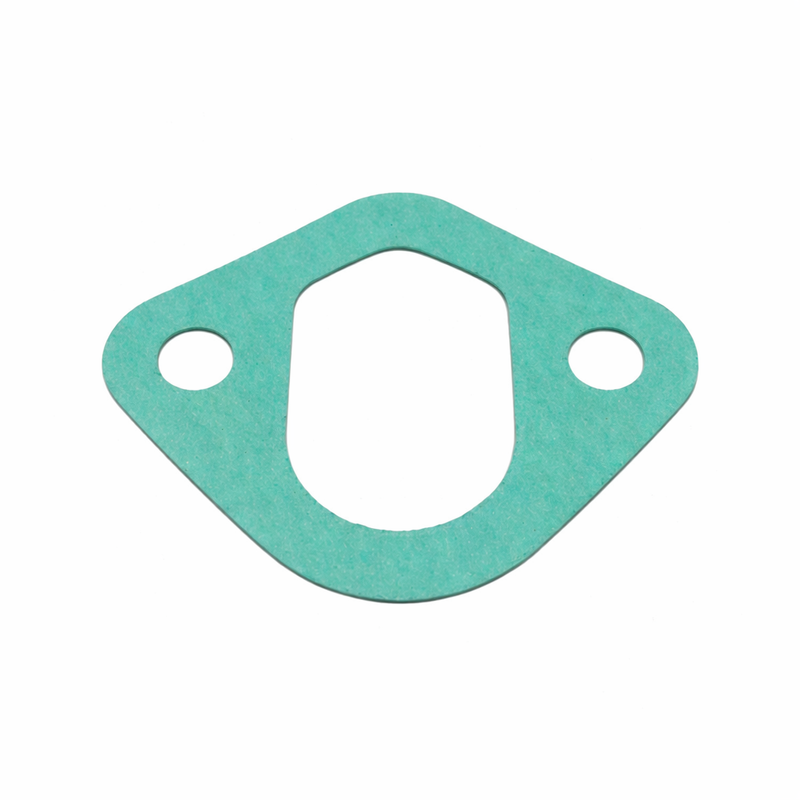

Volvo Penta Fuel Feed Pump Gasket 3501530 | OEM MD TMD TAMD KAD
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Information
- Part Number: 3501530
- Brand: Volvo Penta
- Official Product Type: Gasket — Fuel Feed Pump Mounting
- Supersedes: 463392
- Replaced By: No current supersession on record
- Associated Pump: Fuel feed pump 3582310
Overview
The Volvo Penta 3501530 is a genuine OEM fuel feed pump mounting gasket for older Volvo Penta diesel engines. It seals the fuel feed pump at its mounting face and is the correct replacement for earlier reference 463392. The strongest application reference ties this gasket to fuel feed pump 3582310 — confirming the pump number alongside the engine serial number is the most reliable way to verify correct fitment before ordering.
Compatible Applications
- Volvo Penta MD30A / TMD30A / TAMD30A / AQAD30A
- Volvo Penta AD31 / MD31 / TMD31 / TAMD31 (multiple variants)
- Volvo Penta KAD32P-A
- Volvo Penta AQD40 / TMD40 / TAMD40 / AQAD40 (multiple variants)
- Volvo Penta D41 / AD41 / TMD41 / TAMD41 (multiple variants)
- Volvo Penta KAD42 / KAMD42 / TAMD42 (multiple variants)
- Volvo Penta KAD43 / KAMD43
- Volvo Penta KAD44 / KAMD44
- Volvo Penta KAD300 family
Fitment varies by engine family, pump version, and production range. Always confirm against your engine serial number and the applicable Volvo Penta fuel system diagram before ordering. On older diesel platforms, pump and hardware updates may affect fitment.
Serial Number Requirements
Confirm your engine model, serial number, and the exact fuel system diagram before ordering. The safest fitment approach is to match 3501530 to the fuel feed pump number (3582310) and the diagram position for your specific engine — not by gasket shape alone.
System
Fuel System — Fuel Feed Pump / Pump Mounting Gasket
Dimensions & Weight
- Weight: Approximately 0.01 kg
- Gasket dimensions per Volvo Penta fuel feed pump mounting specification
Service Interval
Replace whenever the fuel feed pump is removed for any reason. This gasket should not be reused once the pump has been disturbed — a compressed or damaged gasket will not seal reliably after reassembly.
When This Part Needs Replacement
Replace the gasket if any of the following apply:
- Fuel feed pump has been removed for service or replacement
- Fuel seepage visible at the pump mounting face
- Gasket is compressed, brittle, torn, or damaged during disassembly
Installation Notes
- Remove all old gasket material from both mating surfaces before installation
- Confirm the gasket matches the exact feed pump application before assembly
- Install on clean, dry, undamaged mating surfaces
- Tighten mounting hardware evenly to prevent seepage around the pump face
Technical FAQ
Q: What earlier part number does 3501530 replace?
A: 3501530 supersedes earlier reference 463392. Always order by the current active OEM number.
Q: Which fuel feed pump does this gasket pair with?
A: The strongest current reference ties 3501530 to fuel feed pump 3582310. Confirm the pump number and engine serial number before ordering.
Q: Can I reuse the old gasket if it looks undamaged?
A: No. Fuel pump gaskets should always be replaced when the pump is removed. A gasket that has been compressed and fuel-soaked will not seal as reliably as a new one.
Q: How do I confirm this fits my engine?
A: Match your engine model and serial number to the Volvo Penta fuel system diagram for your engine, and confirm the gasket position at the fuel feed pump mounting face. Cross-check against pump number 3582310 if applicable.
Parts Desk Insights
Fuel pump gaskets are easy to overlook because they’re small and inexpensive, but reusing one after teardown is a common cause of post-service fuel seepage. At this price point, it’s worth including automatically any time a customer orders a fuel feed pump for one of these older Volvo Penta diesel engines. The most reliable fitment approach is to match by pump number (3582310) and engine serial number — not by comparing the old gasket by shape, since similar-looking gaskets can have different thickness or material specifications.
