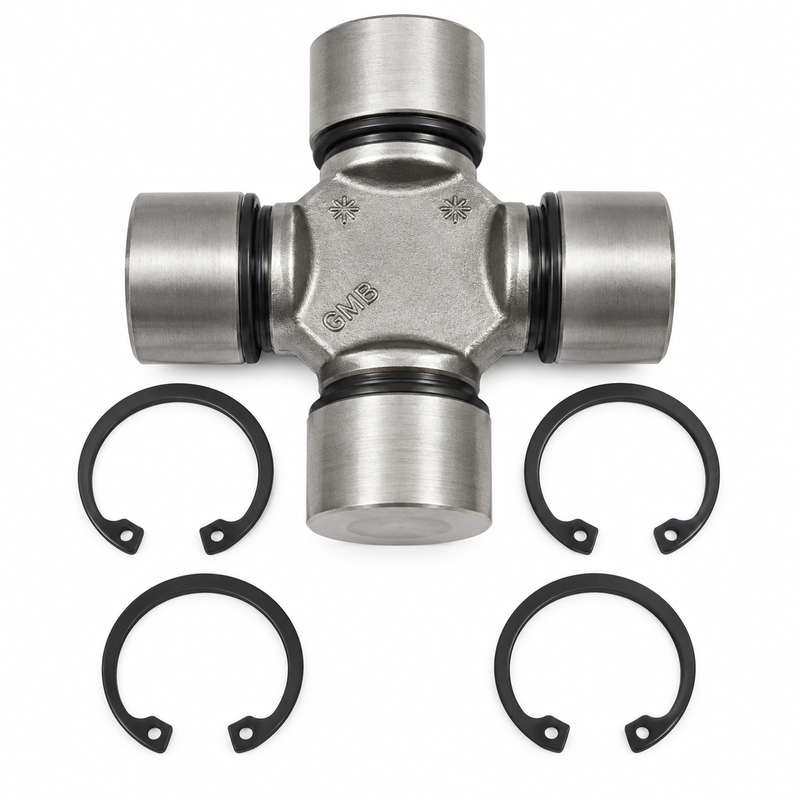

Volvo Penta Universal Joint Spider 3860232
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Details
- Part Number: 3860232
- Brand: Volvo Penta
- Official Product Type: Universal Joint Spider
- Supersedes: 854619
- Replaced By: 3860232 is the current active part number
- System: Sterndrive input-shaft universal joint — connects the U-joint yokes to transmit engine torque while allowing the drive to articulate
- Diagram Position: Item 31 in applicable upper gear-unit catalog listings
- Associated Assemblies: 3860224 and 3860226 universal joint assemblies
- Kit Contents: One individual spider — not a complete universal joint assembly. Two spiders are typically used in a complete double-cardan assembly.
Compatible Applications
Fitment is drive-model and serial-number specific. Confirm 3860232 through the drive-specific upper gear-unit diagram before ordering. Used in selected upper gear-unit and universal-joint assemblies associated with:
- SX-C1
- SX-CT1
- SX-RT1
- DP-S
- DP-C1
- DP-D1
- DPX-S
- PJX-C
- PJX-S
Also used in Volvo Penta universal joint assemblies 3860224 and 3860226 where the parts diagram specifies spider 3860232.
Serial Number Fitment Notice
Volvo Penta used different U-joint designs and retaining-ring arrangements across visually similar SX and DP drives. Match the spider number through the drive-specific upper gear-unit diagram — do not select by appearance or drive family alone. Confirm the sterndrive model, serial number, and installed universal-joint assembly before ordering.
Superseded Part Numbers
- 3860232 — current Volvo Penta number
- 854619 — superseded Volvo Penta number
When This Part Needs Replacement
Replace the spider when inspection reveals any of the following:
- Excessive movement or looseness in the universal joint
- Rough, notched, or binding movement through the joint
- Rust or corrosion around the bearing caps
- Damaged or missing retaining rings
- Vibration or driveline noise
- Water intrusion caused by a failed U-joint bellows
The spider should also be inspected whenever the drive is removed for bellows, gimbal bearing, or engine-alignment service.
Installation Notes
Sterndrive removal and partial disassembly of the universal-joint assembly are required. While access is available, inspect both spiders, the yokes, bearing-cap bores, retaining-ring grooves, U-joint bellows, and gimbal bearing. Replace any distorted retaining rings. Follow the Volvo Penta service manual for assembly, lubrication, and driveline-alignment procedures. After installation, verify the joint pivots smoothly through its full operating range without binding or excessive play.
Related Parts
- 3860224 — Universal Joint Assembly (associated)
- 3860226 — Universal Joint Assembly (associated)
- U-Joint Bellows — SX/DP
- Gimbal Bearing — SX/DP
- 854619 — Superseded spider reference
Parts Desk Insight
A failed or leaking U-joint bellows is the most common reason these spiders fail early — water gets into the bearing caps and corrosion takes over quickly. If one spider shows rust, stiffness, or looseness, the second spider and the gimbal bearing are almost always worth inspecting at the same time. Replacing related worn components during the same service is much less expensive than a second sterndrive removal a season later.
