Volvo Penta 20973777 Common Rail Fuel Rail Repair Kit

Volvo Penta 20973777 – Common Rail Fuel Rail Repair Kit

Part Number: 20973777
Brand: Volvo Penta
Official Part Name: Service Kit
System: High-Pressure Common Rail Fuel System
Kit Type: Fuel Rail Overhaul & Repair

This is a specialized repair kit for the high-pressure common rail fuel system — not a routine maintenance item. It contains the critical components needed to overhaul the fuel rail monitoring and pressure regulation system, restoring proper fuel rail function and protecting the injection system from pressure-related damage.

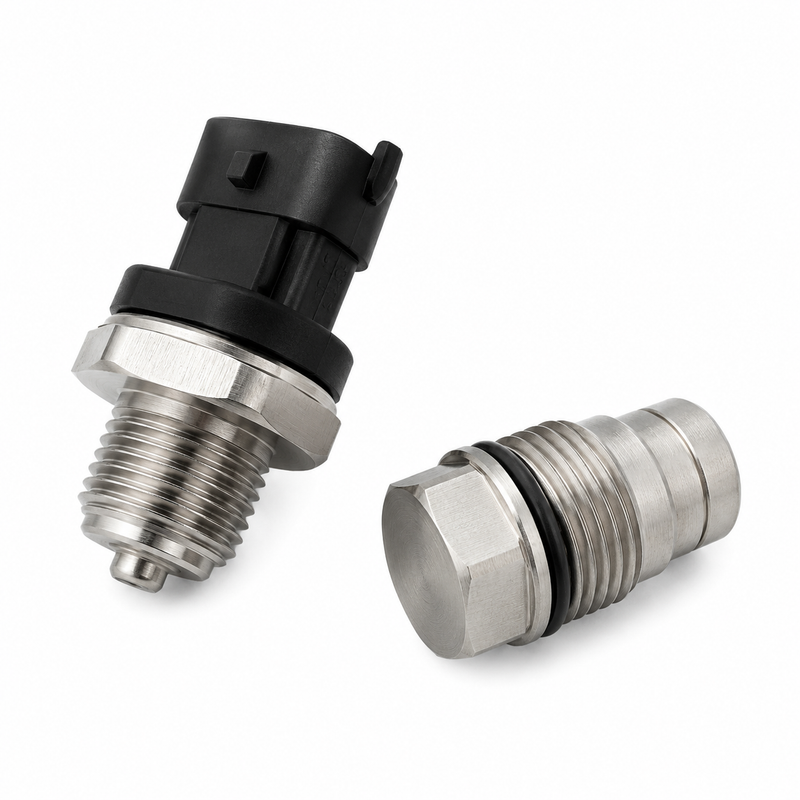

Kit Contents

• Rail Pressure Sensor – Replaces the primary sensor that monitors internal fuel rail pressure
• Safety Valve / Pressure Limiting Valve – Prevents high-pressure spikes from damaging the injection system
• O-Rings & Seals – High-tolerance seals for a leak-free reassembly of all fuel rail connections

Compatible Applications

• Volvo Penta marine diesel engines with common rail fuel architecture
• Volvo Penta industrial diesel engines with common rail fuel architecture
• Volvo D5E, D6E, D7E engines – L60–L90 wheel loaders
• Volvo D5E, D6E, D7E engines – EC210–EC460 excavators
• Volvo D5E, D6E, D7E engines – FL, FE, and FE series trucks
• Fitment is engine- and serial-specific. Always verify against your engine serial number and the correct parts diagram before ordering.

Serial Number Requirements

Confirm part number 20973777 against your exact engine serial number before ordering. Common rail fuel system components can vary by engine variant, production break, and injection system generation. Serial-number verification is the most reliable way to ensure correct fitment.

When to Use This Kit

• Fuel rail pressure sensor failure or fault codes related to rail pressure monitoring
• Pressure limiting valve failure causing injection system protection events
• Fuel rail overhaul during engine rebuild or major fuel system service
• Preventive replacement of fuel rail seals and sensors during high-hour engine service
• Any time the fuel rail is removed or the high-pressure circuit is opened

Installation Notes

• High-pressure fuel system work requires proper tools and training — follow all Volvo Penta safety procedures
• Depressurize the fuel rail fully before beginning disassembly
• Replace all O-rings and seals included in the kit — do not reuse originals
• Torque all fuel rail fittings to the specification in your engine’s service manual
• Perform a leak check and pressure test after reassembly before returning the engine to service

Related Parts

• Volvo Penta 20939274 O-Ring – TAD761–765VE Fuel Injector
• Volvo Penta Water-in-Fuel Sensor 3808616 – D3 / D4 / D6 Diesel
• Volvo Penta Service Kit 3818189
• Volvo Penta Service Kit 3594848

Parts Desk Insights

This kit is one of the more technically specific items in the Volvo Penta fuel system catalog — it’s designed for fuel rail overhaul, not routine service. The most common situation we see is customers sourcing only the pressure sensor or only the pressure limiting valve separately, then discovering the seals are also needed once the rail is already open. Ordering this kit upfront covers all three critical components in one purchase and avoids a second order mid-job. Because the same common rail architecture is shared across Volvo Penta marine, industrial, and heavy equipment engines, this part number has broader application than most — but serial-number confirmation is still essential before ordering.
