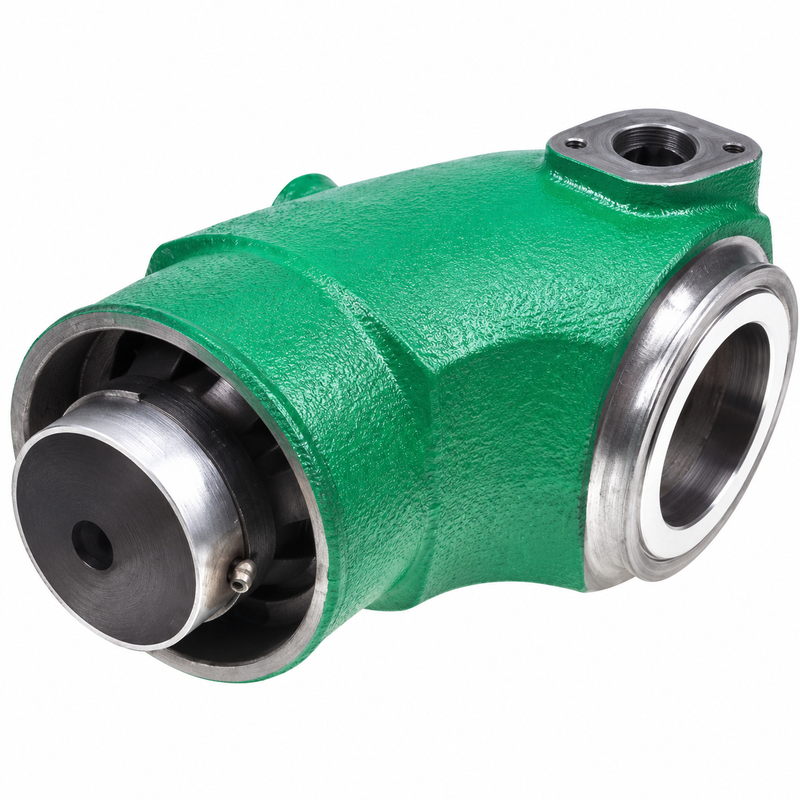

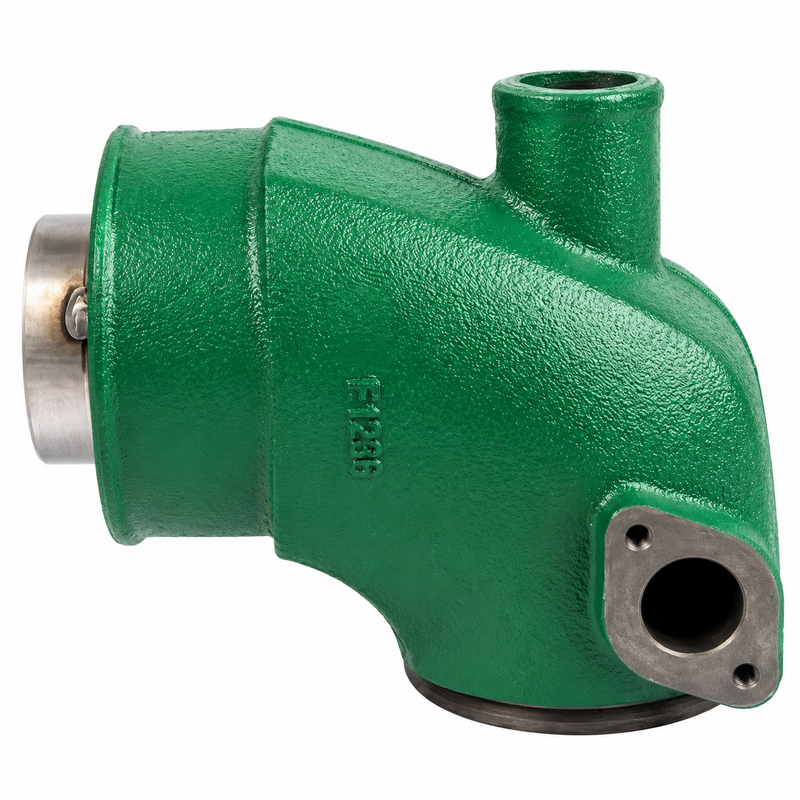

Volvo Penta Exhaust Mixing Elbow – 861289

Part Information

• Part Number: 861289
• Brand: Volvo Penta
• Official Product Type: Water-Injected Exhaust Mixing Elbow
• OEM Status: Genuine Volvo Penta
• Supersedes: 860656
• System: Wet Exhaust – Exhaust Cooling and Discharge
• Configuration: Single water inlet
• Wet Exhaust Outlet: Approx. 102 mm (4.02 in.) I.D.
• Water Inlet: Approx. 38 mm (1.50 in.) O.D.
• Weight: Approx. 4 kg (8.8 lb)

What This Part Does

The 861289 is the OEM water-injected exhaust mixing elbow for a broad range of Volvo Penta diesel marine engines. It combines hot engine exhaust gas with raw cooling water at the elbow, cooling the exhaust before it exits through the wet-exhaust hose. This is a critical part of the engine’s wet-exhaust system — without proper mixing and cooling, exhaust temperatures can damage the hose and surrounding components.

The 861289 is the later single-inlet configuration with the larger 38 mm water connection, and it directly replaces the earlier 860656 elbow. If you are replacing a 860656, confirm the water-hose diameter and surrounding hardware match the 38 mm inlet before installing the newer elbow.

Compatible Applications

• Volvo Penta AD31 / TAMD31 / TMD31
• Volvo Penta AD41 / TAMD41 / TMD41
• Volvo Penta KAD32
• Volvo Penta KAD42 / KAMD42
• Volvo Penta KAD43 / KAMD43
• Volvo Penta KAD44 / KAMD44
• Volvo Penta KAD300 / KAMD300
• Selected Volvo Penta TAMD42
• Selected D5 / D7 industrial-marine configurations using a compatible 4 in. wet-exhaust arrangement

Confirm the exact engine model, exhaust configuration, and existing elbow part number before ordering. Earlier Volvo Penta elbows can look similar but use different inlet sizes or exhaust routing — matching by engine model and existing plumbing is the safest fitment method.

Dimensions

• Wet exhaust outlet: Approx. 102 mm (4.02 in.) I.D.
• Water inlet connection: Approx. 38 mm (1.50 in.) O.D.
• Configuration: Single water inlet, later-style

Serial Number Fitment Notice

Use your engine serial number to confirm the correct exhaust elbow for your configuration. Volvo Penta diesel engines in these families used several elbow configurations over production, and the exhaust plumbing can differ between serial-number ranges even within the same engine model.

When to Replace

• Internal corrosion or carbon buildup restricts exhaust or water flow
• Cooling-water passages are partially or fully blocked
• Rust, weeping, or leakage visible around the casting
• Casting is cracked, pitted, or severely corroded
• Engine exhaust backpressure increases unexpectedly
• Exhaust temperatures become abnormally high
• Water intrusion into the exhaust system is suspected

Wet-exhaust elbows are exposed to both hot exhaust gas and raw cooling water simultaneously, causing internal deterioration that is often not visible from the outside. Volvo Penta recommends inspection at regular service intervals — a blocked or corroded elbow can cause overheating and serious engine damage.

Service Interval

Inspect the exhaust mixing elbow annually and at each major service. Replace proactively at the first sign of internal restriction, corrosion, or external leakage. On hard-working diesel engines, elbow replacement every 3–5 years is common practice regardless of external appearance, as internal water passages corrode from the inside out.

Installation Notes

Inspect the exhaust hose, clamps, water hose connection, elbow gasket, and mating flange during replacement. Clean the mating surface and install a new gasket before fitting the elbow. The 861289 is commonly paired with:

• Volvo Penta exhaust hose 860396
• Water hose connection 858659
• Blanking flange 844093

Verify unrestricted cooling-water flow through the new elbow before returning the engine to service. If the water passages showed any restriction, also inspect the raw-water pump impeller and heat exchanger for debris or scale.

Technical FAQ

Q: Does 861289 replace 860656 directly?
A: Yes, 861289 is the current replacement for the earlier 860656. However, the 861289 uses a larger 38 mm water inlet, so confirm your water-hose connection size matches before ordering if you are replacing a 860656 installation.

Q: How do I know if the elbow is failing if it looks okay from outside?
A: Internal corrosion often progresses faster than external. Signs include increased exhaust backpressure, higher exhaust temperatures, reduced cooling-water flow at the exhaust outlet, or discoloration around the casting. If in doubt, removal and visual inspection of the internal water passages is the definitive check.

Q: What gasket does this elbow use?
A: Confirm the correct exhaust elbow gasket from the Volvo Penta exhaust assembly diagram for your engine model and serial number before ordering.

Alternate Part Numbers

• Volvo Penta 861289
• 860656 (superseded)
• GLM 51540
• HGE 1289
• MAR289INOX (stainless aftermarket reference)

Parts Desk Insights
