Volvo Penta Shift Mechanism Sealing Ring 3863085 | SX-A DPS-A DPS-B

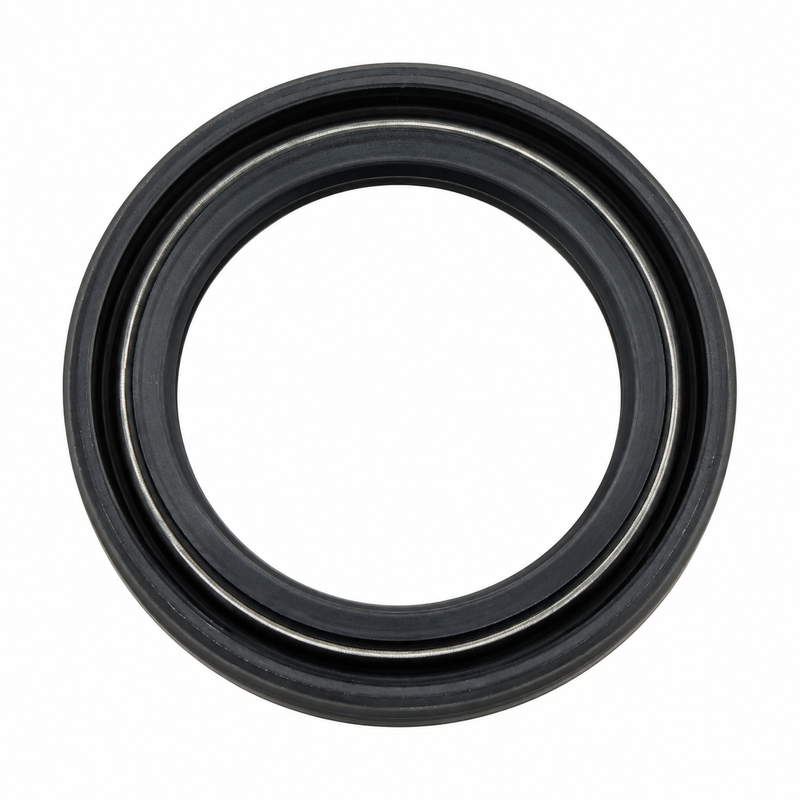

Volvo Penta 3863085 – Shift Mechanism Sealing Ring

• Part Number: 3863085
• Brand: Volvo Penta (OEM Genuine)
• Official Product Type: Sealing Ring – Shift Mechanism / Control Housing
• System: Sterndrive Shift Mechanism
• Quantity Per Assembly: 1
• Installed In: Shift mechanism / control housing assembly alongside gear shifter 22273952, piston 3862388, pin 3862867, spring 814184, O-ring 945624, and dog 3862387
• Aftermarket Cross-Reference: Sierra 18-25250 / ORB19085
• Supersedes: No confirmed newer Volvo Penta OEM number identified – order by active number 3863085
• Weight: Approx. 0.09 lb
• Kit Contents: Sealing ring only – all adjacent shift mechanism components are serviced separately

The 3863085 is a genuine OEM Volvo Penta sealing ring used in the shift mechanism and control housing assembly on selected SX-A, DPS-A, DPS-B, DPH-D1, and DPR-D sterndrives. It seals the shifter/control housing assembly to prevent gear-oil leakage and contamination in the shift mechanism. This is a shift-mechanism-specific seal — not a generic drive housing O-ring — and must be matched to the exact drive model and diagram position before ordering.

Compatible Applications

• Volvo Penta SX-A – shift mechanism / control housing assembly (2007 and newer; confirm by serial)
• Volvo Penta DPS-A – shift mechanism / control housing assembly (confirm by serial)
• Volvo Penta DPS-B – shift mechanism / control housing assembly (confirm by serial)
• Volvo Penta DPH-D1 – shift mechanism assembly (confirm by serial)
• Volvo Penta DPR-D – shift mechanism assembly (confirm by serial)

Serial Number Notice: Confirm the exact drive model, serial number, and shift-mechanism diagram before ordering. Several sealing rings and O-rings are used in the same upper-housing area and are not interchangeable — matching by diagram position is the safest approach.

When to Replace

Replace this sealing ring whenever the shift mechanism or control housing is disassembled, when gear-oil leakage is present around the control housing, when the seal is hardened, flattened, cut, or damaged, when water intrusion or contamination points to a sealing failure, or when the surrounding shift mechanism is being overhauled. Never reuse a seal that has been removed — seals that have been compressed and disturbed lose their ability to seal reliably.

Service Interval

Inspect shift mechanism seals during major sterndrive service or any time the control housing is disassembled. Replace as a matter of course whenever the assembly is open — the cost of a new seal is minimal compared to the labour required to access this area again.

Associated Service Parts

• Volvo Penta Shift Mechanism Pin 3862867 – Shift mechanism pin in the same control housing assembly
• Volvo Penta Spring 814184 – Return spring in the shift mechanism assembly
• Volvo Penta Dog 3862387 – Shift dog in the same control housing assembly
• Volvo Penta O-Ring 945624 – O-ring used in the same shift mechanism assembly
• Volvo Penta Sealing Ring 3863084 – Adjacent DPH/DPR sterndrive sealing ring
• Volvo Penta Split Pin / Cotter Pin 3885524 – SX-A / DPS-A / DPS-B split pin

Installation Notes

Before installation, clean the seal bore and all mating surfaces thoroughly. Inspect the shift shaft and control housing bore for wear, scoring, or corrosion that could damage the new seal or prevent proper seating. Lubricate the sealing ring only as specified in the applicable Volvo Penta workshop procedure for your drive model. Install squarely without twisting or distorting the sealing lip. Inspect all adjacent O-rings and retaining hardware and replace as needed before reassembly. After service, pressure- or vacuum-test the drive where applicable to confirm sealing integrity before returning to the water.

Technical FAQ

Q: What drives use this sealing ring?
A: Confirmed applications are SX-A (2007-newer), DPS-A, DPS-B, DPH-D1, and DPR-D. Always confirm by your exact drive model and serial number against the shift-mechanism diagram before ordering.

Q: Is the Sierra 18-25250 a direct equivalent?
A: Sierra catalogs 18-25250 as a replacement for Volvo Penta 3863085 for SX-A / DPS-A 2007-and-newer applications. If using an aftermarket equivalent, confirm the cross-reference carefully by drive model before ordering.

Q: What is the difference between 3863085 and 3863084?
A: Both are Volvo Penta sealing rings in the DPH/DPR/SX sterndrive family, but they occupy different positions. The 3863085 is specifically the shift mechanism / control housing sealing ring. The 3863084 is used in a separate DPH/DPR sterndrive sealing position. Always confirm by diagram position for your specific drive.

Q: Can I reuse this seal if it looks undamaged after removal?
A: No. Sealing rings should always be replaced after removal. A seal that has been compressed in service and then disturbed will not reliably return to its original sealing profile, even if it appears undamaged visually.

Parts Desk Insights

Best Use Case: This is the correct part for customers overhauling the shift mechanism or control housing on an SX-A, DPS-A/B, DPH-D1, or DPR-D sterndrive — particularly when addressing gear-oil leakage around the control housing or completing a full upper-housing service. Best ordered alongside the O-ring 945624, shift dog 3862387, and spring 814184 to complete the shift mechanism service in one pass.

Common Issues: The most frequent mistake is treating this as a generic drive housing O-ring and substituting by dimension — it is specifically a shift-mechanism control-housing seal and must match the exact diagram position. The second common issue is ordering for the wrong drive generation: the SX-A / DPS family and DPH-D1 / DPR-D share this part number, but earlier DPH or DPR variants may use a different seal. Always confirm by drive serial number and the applicable shift-mechanism diagram.
