Volvo Penta Tachometer Kit — OEM Part 21628159

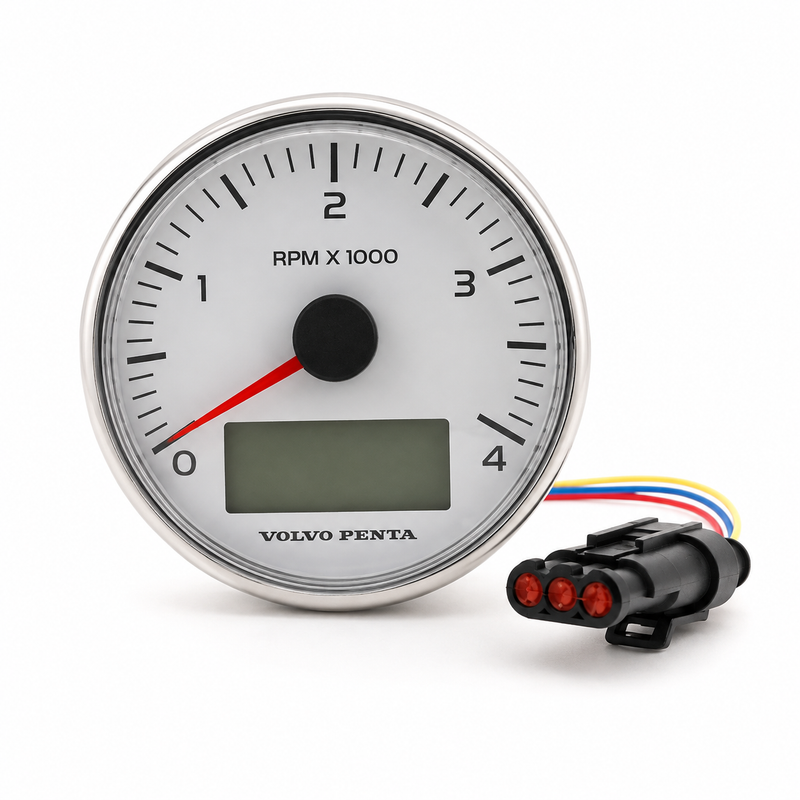

Genuine Volvo Penta OEM tachometer kit for EVC (Electronic Vessel Control) equipped marine engines. This 85 mm white-face tachometer displays engine RPM from 0 to 4000 and includes an integrated digital LCD window for engine running hours and alarm symbols. It is the factory-correct replacement instrument for compatible Volvo Penta D-series diesel engines using an MDI unit and EVC start-stop panel.
Part Information
- Part Number: 21628159
- Brand: Volvo Penta
- Official Product Type: EVC Tachometer Kit
- System: Electronic Vessel Control (EVC) — Instrumentation
Technical Specifications
- Dial Color: White face with black markings
- Measurement Range: 0–4000 RPM
- Housing Diameter: 85 mm
- Display: Integrated digital LCD window — shows engine running hours and alarm symbols
- LCD Data: Can display boat data, engine temperature, oil pressure, and system voltage via EVC system
Kit Contents
- 85 mm white-face tachometer unit
- Connection cable
Compatible Applications
- Volvo Penta D1-13, D1-20, D1-30
- Volvo Penta D2-40, D2-50, D2-55, D2-60, D2-75
- Volvo Penta D3, D4, D6, D8, D9, D11, D13, D16
- All applications require a compatible EVC (Electronic Vessel Control) system with MDI unit and EVC start-stop panel
- Always confirm fitment by your exact Volvo Penta engine model and serial number before ordering
Serial Number & Fitment Notice
Confirm compatibility using your Volvo Penta engine serial number and the corresponding parts diagram. EVC instrument specifications can vary by engine generation and control system configuration. Do not assume fitment based on engine model alone.
Supersession & Cross-Reference
- Current OEM Part Number: 21628159
- A related EVC tachometer kit is also available as OEM Part 21511180 — verify which part number your EVC system requires before ordering
Installation Notes
- Hour Meter Reset: Installing a new tachometer unit resets the engine running hours displayed on the LCD to zero — note the existing hours before replacement if record-keeping is required
- Mounting: Standard installation may require a separate bezel fitting or mounting kit depending on dashboard thickness — not included
- System Integration: The LCD screen integrates with the EVC system to display engine telemetry including temperature, oil pressure, voltage, and boat data
- Follow the Volvo Penta EVC installation and wiring procedure for your engine series
Technical FAQ
Will installing this tachometer reset my engine hours?
Yes. A new tachometer unit resets the hour meter on the LCD display to zero. If your engine hours are important for service records or resale, record the existing hours before replacing the unit. The engine hours are stored in the tachometer display, not the EVC control unit.
Does this tachometer work without an EVC system?
No. Part 21628159 is designed specifically for Volvo Penta EVC-equipped engines. It communicates via the EVC network to display RPM and engine data. It is not compatible with non-EVC analog instrument systems.
Do I need a mounting kit?
Depending on your dashboard thickness and existing cutout, a separate bezel or mounting kit may be required. Confirm your dashboard configuration before ordering.
Parts Desk Insights
Best Use Case: This is the correct OEM replacement for owners of Volvo Penta D1 and D2 yacht series engines — and the broader D-series range — who need to replace a failed or damaged EVC tachometer while maintaining factory instrument integration. It is particularly well-suited for refit and restoration work where matching the original Volvo Penta instrument panel is important.
Common Customer Issue: The most frequent issue is customers not accounting for the hour meter reset when replacing this unit. If engine hours matter for warranty, service intervals, or resale documentation, record the current hours before installation. Also confirm whether part 21628159 or the related 21511180 is the correct kit for your specific EVC configuration — both are EVC tachometer kits but may differ by generation.
