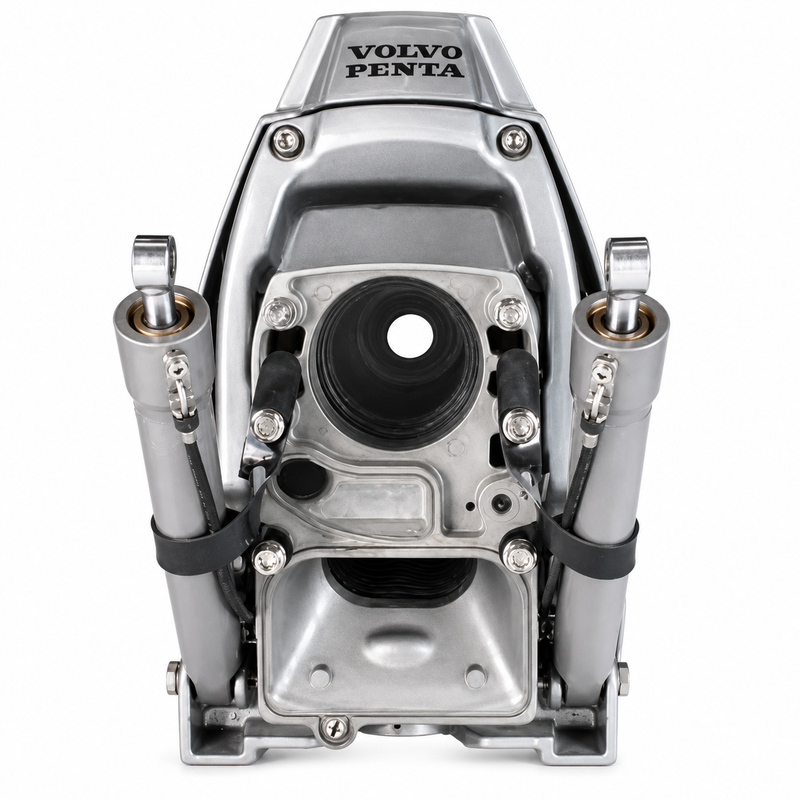

Volvo Penta Transom Shield 22865033 – 42° Tilt ACP NPT
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Volvo Penta Transom Shield – Part 22865033
| Part Number | 22865033 |
| Brand | Volvo Penta |
| Product Type | Transom Shield |
| Supersedes | 40869169 |
| Configuration | 42° tilt limit · ACP · NPT (No Pitot Tube) |
| System | Sterndrive / TSK-C Transom Assembly |
This is the genuine Volvo Penta OEM transom shield for TSK-C sterndrive installations requiring the 42° tilt limit, ACP, and no-pitot-tube (NPT) configuration. The transom shield is the structural interface between the boat hull and the sterndrive unit — it houses the bellows, steering pivot, trim cylinders, and sealing surfaces that keep the drive system watertight and properly aligned.
Compatible Applications
- Volvo Penta TSK-C transom shield installations requiring 42° tilt limit
- ACP-equipped sterndrive packages with NPT (no pitot tube) configuration
- Replacement for superseded part 40869169
Confirm the existing shield's tilt specification, ACP status, and pitot-tube configuration before ordering. The TSK-C family includes multiple nearly identical shields — the wrong configuration will not fit correctly.
Configuration Comparison – TSK-C Family
Several shields share the same general appearance but differ in tilt limit and equipment. Verify your existing shield's full specification:
- 22865031 – 32° tilt, ACP, NPT
- 22865033 – 42° tilt, ACP, NPT (this part)
- 22865035 – 52° tilt, ACP, NPT
- 22865042 – 42° tilt, NPT, no ACP
- 22865032 – 42° tilt, ACP, with pitot tube
When Replacement Is Needed
- Structural corrosion or severe oxidation of the shield body
- Impact or collision damage
- Cracking or distortion around the drive mounting area
- Damage to steering or trim-cylinder mounting points
- Deteriorated sealing surfaces
- Major sterndrive or transom overhaul
Installation Notes
During replacement, inspect the complete transom assembly — including bellows, steering components, trim cylinders, hydraulic lines, sealing surfaces, mounting hardware, and corrosion-protection components. Volvo Penta specifies Tube 24070903 as part of the replacement arrangement when upgrading from the superseded 40869169 shield.
Superseded & Related Part Numbers
- 22865033 – Current part (this listing)
- 40869169 – Previous transom shield, superseded by 22865033
- 24070903 – Tube specified with the replacement arrangement
Parts Desk Insights
The 42° tilt limit is the most common TSK-C configuration, but the ACP and NPT details are equally important — ordering the wrong variant is a frequent mistake because the shields look identical. Always cross-reference the tilt angle, ACP presence, and pitot-tube status from the existing shield or the Volvo Penta parts diagram before placing an order. If you are unsure which configuration you have, contact us with your engine serial number and we can confirm the correct part.
