MAS Full Port Brass Ball Valve B-3-1/2 | 1/2 in. FNPT
In stock items ship same or next day.
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

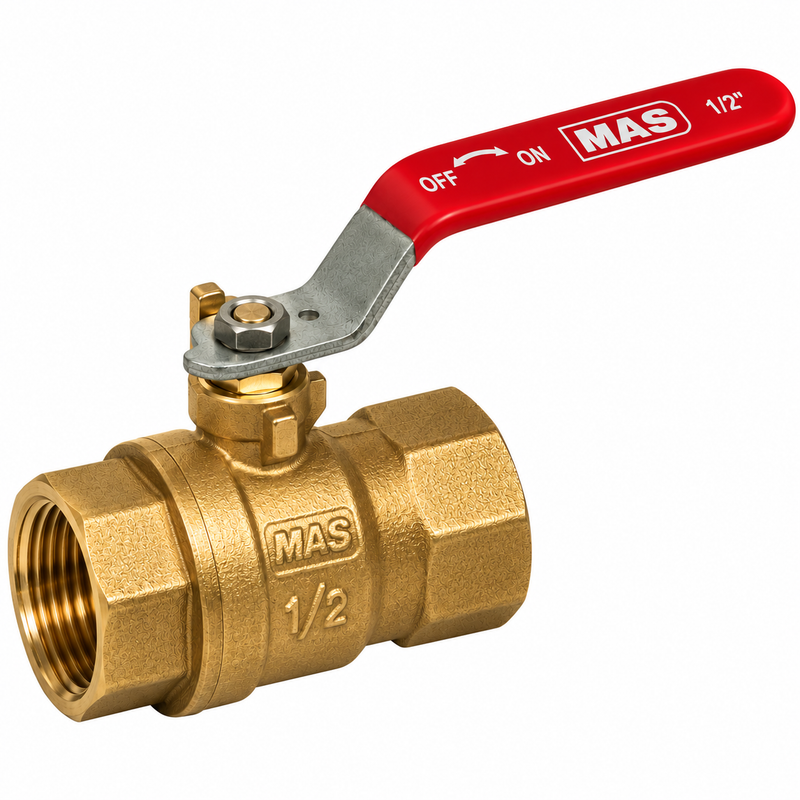

MAS Full Port Brass Ball Valve — Part No. B-3-1/2
- Part Number: B-3-1/2
- Supplier SKU: VAL-B-31/2
- Brand: MAS (B Series)
- Type: Full-Port Brass Ball Valve
- Nominal Size: 1/2 in.
- Connection: Female NPT × Female NPT (both ends)
- Port: Full port — approximately 0.59 in. opening diameter
- Flow Coefficient: Approximately 15 Cv
- Body / Ball / Stem: Brass
- Seats & Packing: PTFE
- Handle: Lever-style steel, quarter-turn operation
- Stem: Blowout-proof with adjustable packing gland
- System: Plumbing / Marine Plumbing — on/off isolation service
What This Valve Does
The MAS B-3-1/2 is a 1/2-inch full-port brass ball valve designed for reliable on/off isolation in compatible fluid systems. The full-bore design keeps the internal flow path close to the nominal pipe diameter, reducing pressure drop compared with standard-port valves. A quarter-turn lever gives instant visual confirmation of open or closed position.
Note on part number: In this series, the final "1/2" denotes the valve size — this is a 1/2-inch valve. The supplier SKU format (VAL-B-31/2) can read as ambiguous; confirm you are ordering the 1/2 in. size before purchasing.
Compatible Applications
- Fresh water supply and shutoff lines
- Oil lines (confirm fluid compatibility with brass and PTFE)
- Gas lines (confirm installation standard and approval requirements for your jurisdiction)
- General marine plumbing isolation service
- Other compatible liquid or gaseous media at rated pressure and temperature
Fitment & Selection Checklist
- Pipe size: 1/2 in. nominal
- Thread type: NPT (National Pipe Taper) — confirm mating fittings are NPT, not BSP
- Confirm system pressure and temperature are within the valve's rated range
- Confirm fluid compatibility with brass body and PTFE seats/packing
- For marine through-hull or seacock service, verify the complete installation meets applicable standards — a standard inline ball valve is not automatically rated as a seacock
When to Replace
- Leakage through the closed ball or around the stem
- Seized, stiff, or erratic operation
- Visible cracking, corrosion damage, or stripped threads on the body
- Excessive handle or stem play indicating internal wear
Installation Notes
- Apply thread sealant compatible with the system fluid and brass fittings
- Support adjoining pipework — avoid placing mechanical load on the valve body
- Handle parallel to the pipe = open; handle perpendicular = closed
- Use for full-open or full-closed service only — ball valves are not designed for fine flow throttling
Parts Desk Insights
This valve is well suited as a general-purpose shutoff in fresh water, oil, and compatible gas lines where a compact, low-restriction 1/2 in. valve is needed. The full-port design is the right choice any time you want to preserve flow capacity through the line. One common ordering error: customers confuse the supplier SKU format (VAL-B-31/2) and assume this is a larger valve — it is a 1/2-inch valve. If your application calls for a seacock or through-hull valve to a marine standard, confirm the installation requirements separately before using a standard inline ball valve in that role.
