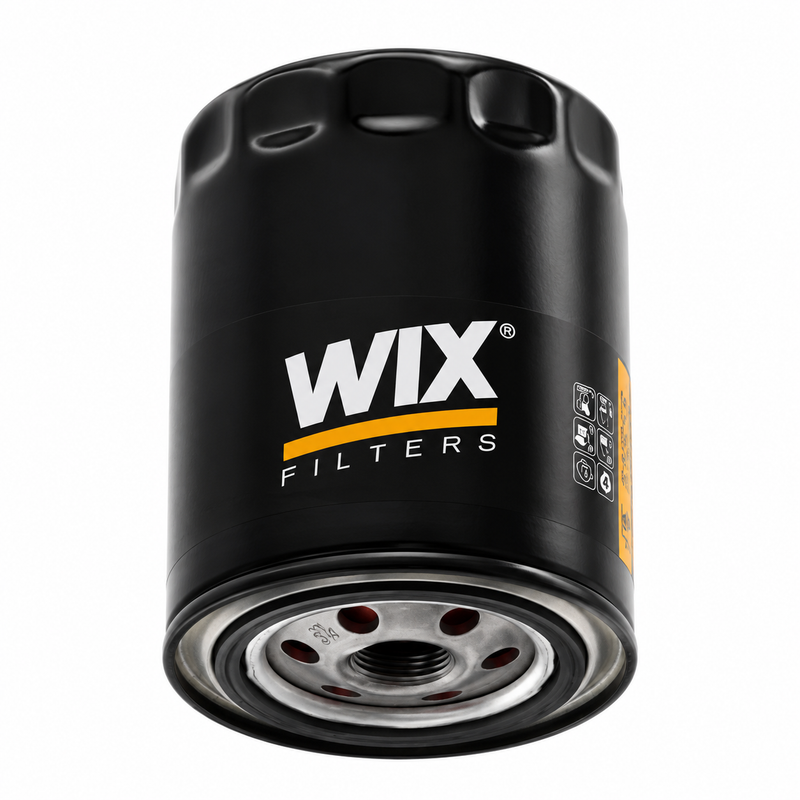

WIX Oil Filter 51515 – Ford Marine & Automotive Engines
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
WIX Oil Filter 51515 – Ford Marine & Automotive Engines
The WIX 51515 is a full-flow spin-on engine oil filter commonly used on select Ford gasoline engines and Ford-based marine power packages. Its enhanced-cellulose filtration media removes abrasive contaminants from circulating engine oil, while the built-in anti-drainback valve helps retain oil in the filter during shutdown for faster lubrication at startup.
This long-format filter measures approximately 5.20 inches high by 3.66 inches in diameter and uses a 3/4"-16 mounting thread. It is rated at 21 microns nominal, with a 7–9 GPM flow range, an 8–11 psi bypass-valve setting, and a 290 psi burst-pressure rating.
Key Features
- Full-flow spin-on engine oil filter
- Enhanced-cellulose filtration media
- Nominal filtration rating: 21 microns
- Thread size: 3/4"-16
- Height: approximately 5.197 in / 132 mm
- Outside diameter: approximately 3.661 in / 93 mm
- Rated flow range: 7–9 GPM
- Bypass-valve setting: 8–11 psi
- Integrated anti-drainback valve
- Burst-pressure rating: 290 psi
- Attached sealing gasket
- WIX Part Number: 51515
- UPC: 765809515154
Engine Compatibility
WIX identifies the 51515 as a principal application for numerous Ford cars and trucks produced from approximately 1957 through 2000, along with select Chrysler, Mazda, Toyota, and heavy-duty applications. Marine cross-reference information also associates this filter with select Ford-based inboard and sterndrive engines, including:
- Ford 2.3L marine engines
- Ford 302 / 5.0L V8 marine engines
- Ford 351 / 5.8L V8 marine engines
- Select MerCruiser Ford applications
- Select OMC Ford applications
- Select Pleasurecraft Marine / PCM Ford applications
Exact compatibility depends on the engine marinizer, model year, installed oil filter head, remote-filter arrangement, and available clearance.
Fitment Notice
Confirm the engine model, serial number, and number printed on the existing filter before ordering. Ford-based marine engines may use different filter lengths or remote-filter configurations even when the engine displacement is the same. Do not select the filter by its 3/4"-16 thread alone — the gasket dimensions, bypass-valve pressure, anti-drainback-valve requirement, and physical clearance must also match the installed lubrication system.
When to Replace
Replace the oil filter whenever the engine oil is changed or at the interval specified by the engine manufacturer. More frequent replacement may be appropriate for engines exposed to extended trolling or low-speed operation, heavy loads and high operating temperatures, short or infrequent operating cycles, fuel dilution or moisture contamination, long periods of seasonal storage, or internal engine repairs. A dented, corroded, or leaking filter should be replaced immediately.
Installation Notes
Remove the old filter and confirm its sealing gasket has not remained stuck to the mounting surface. Clean the filter head and lightly coat the new filter gasket with clean engine oil. Install by hand to the manufacturer’s tightening specification — do not overtighten. After installation: refill with the specified oil, start the engine and verify normal oil pressure, inspect the filter gasket and body for leakage, shut down and allow oil to settle, then recheck and correct the oil level. Ensure the longer filter body has adequate clearance from engine mounts, exhaust components, hoses, and the hull structure.
Cross-Reference Numbers
- Motorcraft FL-1A
- Ford D9AZ-6731-A
- NAPA Gold 1515
- FRAM PH8A
- Baldwin B2
- Fleetguard LF3313
- Donaldson P550008
- Purolator L30001
- ACDelco PF2
- Sierra 18-7875-1
- Pleasurecraft Marine R077001 / R-077001
- MerCruiser 60565 / 35-802886Q / 35-8M0116378
- OMC 502900 / 173231
Cross-reference numbers are comparison aids only. Confirm the original filter and engine application before substituting brands.
Other WIX Filters
- WIX Oil Filter 51806
- WIX Oil Filter 51629 – Lister/Petter
- WIX Hydraulic Filter 51551 – 10 Micron
- WIX Oil Filter 51061 – GM Tall
- WIX Oil Filter 51083
- WIX Oil Filter 51361
- WIX Oil Filter 51365
Parts Desk Insights
The WIX 51515 is the familiar long Ford-style filter, but older marine installations are often modified with remote filter heads or restricted engine-room clearance. Matching the existing filter number and measuring the available space usually prevents the most common fitment mistake. The extensive marine cross-reference list above — including MerCruiser, OMC, and PCM part numbers — makes this a useful starting point, but always verify against your specific engine serial number and marinizer before ordering.
