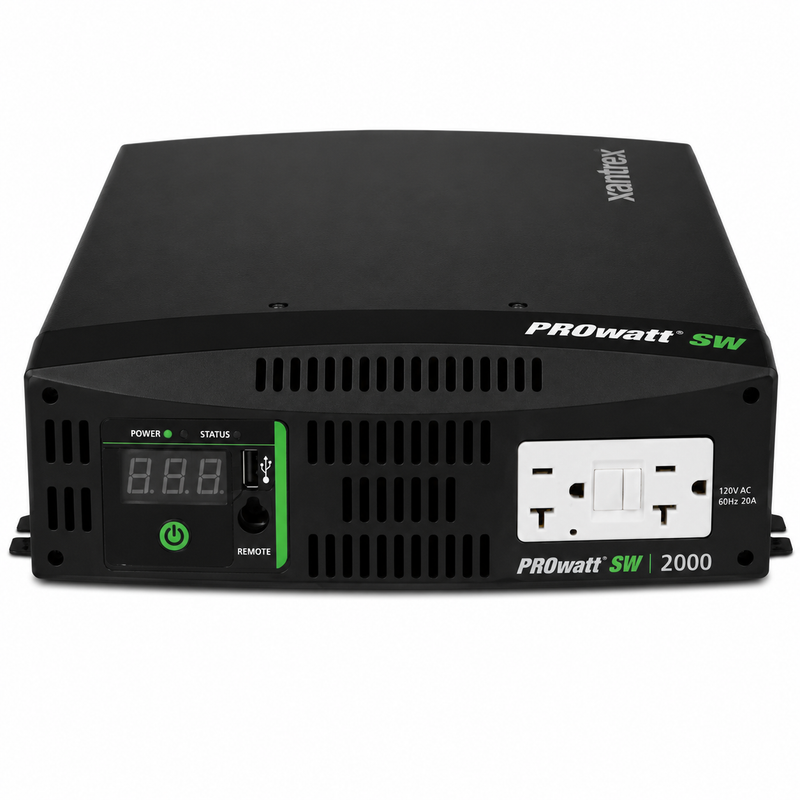

Xantrex 8061220 PROwatt SW 2000 Pure Sine Wave Inverter, 1800W, 12V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Xantrex PROwatt SW 2000 is a compact 12-volt pure sine wave inverter designed to operate household appliances, electronics and motor-driven equipment from a battery bank. Although sold as the PROwatt SW 2000, Xantrex rates this model for 1,800 watts of continuous AC output and up to 3,000 watts of peak surge capacity. It is suitable for marine vessels, recreational vehicles, commercial trucks, service vehicles and other mobile power applications requiring clean 120-volt AC power.
Key Features
- Clean true sine wave output for sensitive electronics and motor loads
- 1,800 watts of continuous AC output
- 3,000-watt peak surge capacity for demanding startup loads
- Operates from a nominal 12-volt DC battery bank
- Dual GFCI-protected 120-volt AC receptacles
- Built-in USB Type-A charging port
- Digital display shows battery voltage, AC output power and fault codes
- Optional remote-panel connection
- Ignition-control capability when used with the optional remote
- Hardwired DC battery connection
- Compact design for marine, RV and commercial-vehicle installations
- Two-year manufacturer warranty
Suitable Loads
The PROwatt SW 2000 can operate appropriately sized equipment such as:
- Refrigerators
- Microwave ovens
- Coffee makers
- Televisions
- Computers and laptops
- Battery chargers
- Small kitchen appliances
- Variable-speed power tools
- Mobile electronics
The combined continuous load must remain within the inverter’s 1,800-watt rating. Appliances with compressors, motors or heating elements must also remain within its 3,000-watt startup-surge capacity.
Electrical Specifications
- Product series: PROwatt SW
- Nominal DC input: 12 volts
- DC input operating range: 10.5–15.5 volts
- Continuous AC output: 1,800 watts
- Peak surge capacity: 3,000 watts
- AC output voltage range: 104–127 volts
- AC output frequency: 60 Hz ±0.5 Hz
- Output waveform: True sine wave
- Optimum efficiency: 90%
- No-load current draw: Less than 0.6 amps
- USB output: 5 volts, 500 mA
- AC receptacles: Dual GFCI
- USB receptacle: Single Type-A port
- DC connection: Hardwired
- Recommended DC fuse: 250 amps
Dimensions and Weight
- Height: 3.9 inches / 100 mm
- Width: 11.8 inches / 299 mm
- Length: 13.7 inches / 348 mm
- Net weight: 10.7 lb / 4.9 kg
- Operating-temperature range: 0°C to 40°C
Certifications
- UL 458
- UL 458 Marine Supplement
- CSA 107.1
- FCC Part 15, Class A
Fitment Notice
The PROwatt SW 2000 is designed for a nominal 12-volt battery bank and must not be connected to a 24-volt system. Confirm the voltage and wattage requirements of all connected appliances before ordering.
At full output, this inverter can draw approximately 170 amps or more from a 12-volt battery bank after inverter losses are considered. Battery capacity, conductor size, cable length, terminal hardware, disconnect rating and overcurrent protection must be selected for the actual installation.
This is an inverter only. It does not contain a battery charger or automatic shore-power transfer switch.
Installation Notes
Install the inverter in a dry, well-ventilated location protected from water, battery gases, excessive heat and fuel vapours. Keep the DC battery cables as short as practical and use properly sized marine-grade conductors.
Xantrex recommends a 250-amp DC fuse. The final fuse type, conductor size and disconnect arrangement must follow the installation manual and applicable marine or vehicle electrical standards.
The inverter’s AC loads can be connected directly to its GFCI receptacles. Installations requiring automatic transfer between inverter power and shore or generator power require the optional PROwatt SW Inline Transfer Relay or another correctly rated transfer system.
Optional Accessories
- Xantrex PROwatt SW Remote Panel
- Xantrex PROwatt SW Inline Transfer Relay
- Xantrex 50-foot remote cable – 31-6262-00
The optional remote panel allows the inverter to be operated from another location and supports ignition-controlled shutdown in compatible vehicle installations.
When This Product Needs Replacement
Inspect or replace the inverter if it:
- Repeatedly shuts down under loads it previously operated
- No longer produces stable AC output
- Displays recurring low-voltage, overload or over-temperature faults
- Has damaged GFCI receptacles or DC terminals
- Shows signs of overheating, moisture intrusion or internal corrosion
- Produces unusual noise or odour during operation
- Fails after the battery bank and external wiring have been verified
Before replacing the inverter, test the batteries under load and inspect the DC fuse, disconnect, cable terminals and voltage drop. Weak batteries or undersized conductors can create symptoms similar to inverter failure.
Alternate Part Numbers
- Xantrex manufacturer part number: 806-1220
- Unhyphenated part number: 8061220
- Distributor SKU: 262-8061220
- UPC: 715535894221
- Model name: PROwatt SW 2000
Parts Desk Insight
The PROwatt SW 2000 is labelled as a 2,000-watt-class inverter, but the current official Xantrex specification lists 1,800 watts of continuous output and 3,000 watts of peak surge capacity. Customers requiring a full 2,000 watts continuously should size the inverter according to the official continuous rating rather than the model name.
