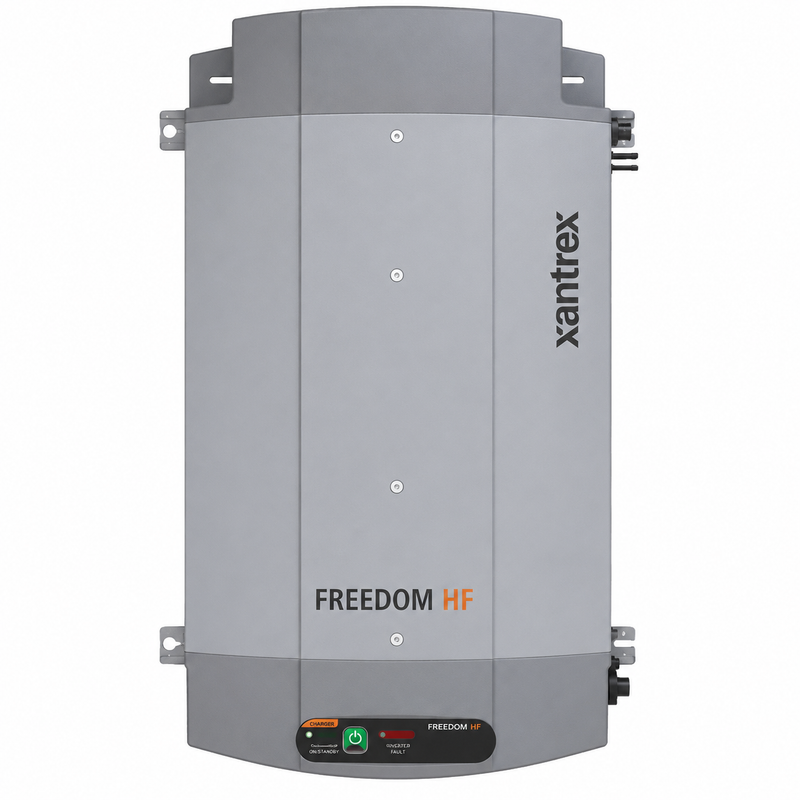

Xantrex 8061840 Freedom HF Inverter/Charger, 1800W, 12V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Xantrex Freedom HF 1800 combines a 1,800-watt modified sine wave inverter, a 40-amp three-stage battery charger and a 30-amp automatic AC transfer relay in one compact 12-volt unit. Designed for boats, recreational vehicles, commercial trucks and specialty vehicles, it supplies onboard 115-volt AC power from the battery bank and automatically switches to shore or generator power when an approved AC source becomes available.
Key Features
- Produces 1,800 watts of continuous modified sine wave AC power
- Delivers up to 3,600 watts of surge power for compatible startup loads
- Integrated 40-amp three-stage battery charger
- Built-in 30-amp automatic AC transfer relay
- Supports flooded, gel and AGM battery charging profiles
- Includes a fixed 13.5-volt charging mode for supported applications
- Internal temperature-sensitive charging adjusts output as operating temperature changes
- Quick-connect AC input and output terminals simplify hardwired installation
- Ignition-lockout capability can disable inverter operation when the vehicle ignition is off
- Detachable digital display can be remotely mounted using an optional communication cable
Application Compatibility
The Freedom HF 1800 is intended for nominal 12-volt electrical systems in:
- Recreational and commercial boats
- Motorhomes and travel trailers
- Heavy-duty trucks
- Coaches and buses
- Mobile service and work vehicles
- Specialty and emergency vehicles
Xantrex identifies the 1,800-watt model for compatible loads such as refrigerators, microwave ovens, blenders, laptops, televisions and mobile-device chargers. Total continuous load and appliance startup demand must remain within the inverter's ratings.
Electrical Specifications
- Nominal DC input voltage: 12 volts
- DC operating range: 10.5–15.5 volts
- Continuous inverter output: 1,800 watts
- Surge output: 3,600 watts
- AC output voltage: 115 volts RMS, ±10 volts
- Output frequency: 60 Hz
- Output waveform: Modified sine wave
- Full-load efficiency: Greater than 80%
- Peak efficiency: Greater than 87%
- No-load input power while producing AC: Less than 10 watts
- Off-mode current draw with display off: Less than 1 mA
- Battery-charger output: 40 amps
- AC input range: 90–130 volts
- Maximum charging AC input: 7.5 amps
- Automatic transfer-relay rating: 30 amps
- Default bulk-charge voltage: 14.2 volts DC
- Default float-charge voltage: 13.5 volts DC
- Battery-charge outputs: One
- Charge control: Three-stage
- Equalisation function: Not included
Battery Compatibility
Selectable charging profiles support:
- Flooded lead-acid batteries
- AGM batteries
- Gel batteries
- Fixed 13.5-volt applications
This model does not provide a dedicated lithium charging profile. Battery type, charging-voltage requirements and battery-management-system compatibility must be confirmed before use with any lithium battery installation.
Dimensions and Weight
- Height: 4.2 inches / 106 mm
- Width: 9.5 inches / 241 mm
- Length: 18.5 inches / 470 mm
- Weight: 12.8 lb / 5.8 kg
- Recommended operating-temperature range: 0°C to 40°C
Certification and Marine Installation Notice
The Freedom HF 1800 is ETL certified to CSA C22.2 No. 107.1 and UL 458. Marine Supplement compliance requires Xantrex drip shield part number 808-1050.
Marine installations must follow the current Xantrex installation instructions and applicable ABYC requirements for battery protection, conductor sizing, grounding, AC wiring, equipment location and ignition protection.
Fitment Notice
Confirm that the installation uses a nominal 12-volt battery bank. The Freedom HF 1800 is not compatible with a 24-volt battery system.
This model produces modified sine wave power rather than true sine wave power. Verify that each connected appliance is approved for modified sine wave operation. Certain variable-speed motors, sensitive electronics, timing circuits, medical equipment and electronically controlled appliances may require a true sine wave inverter.
When This Product Needs Replacement
Inspect or replace the inverter/charger if it:
- Repeatedly shuts down under loads it previously supported
- No longer switches correctly between external AC and inverter operation
- Fails to charge a verified serviceable battery bank
- Produces recurring overload, low-voltage or over-temperature faults
- Has damaged AC or DC terminals
- Shows evidence of moisture intrusion, overheating or internal corrosion
- Has an unreadable or non-responsive display
Before replacing the unit, test the battery bank, incoming AC supply, DC cable voltage drop, fuses, circuit breakers and terminal connections. Weak batteries and undersized or loose conductors can cause symptoms similar to inverter failure.
Installation Notes
Install the Freedom HF in a dry, ventilated location protected from water, battery gases, excessive heat and fuel vapours. Use marine-grade DC conductors, correctly rated overcurrent protection and an accessible battery disconnect.
Keep battery cables as short as practical and size them for the inverter's full DC demand and installation length. Follow the Xantrex installation guide for mounting orientation, ventilation clearance, chassis grounding and AC input and output wiring.
Install drip shield 808-1050 when required for UL 458 Marine Supplement compliance.
Compatible Accessories
- Xantrex Freedom HF 1800 Replacement Remote Panel – 808-1840
- Xantrex 25-foot six-conductor remote cable – 31-6257-00
- Xantrex 50-foot six-conductor remote cable – 31-6262-00
- Xantrex Marine Drip Shield – 808-1050
Alternate Part Numbers
- Xantrex manufacturer part number: 806-1840
- Unhyphenated catalogue reference: 8061840
- Distributor catalogue reference: 262-8061840
- Product model: Freedom HF 1800
Related Freedom HF 1800 variants may carry suffixes such as 806-1840-01, 806-1840-02, 806-1840-03, 806-1840-04 or 806-1840-05. These versions may differ in output connections, transfer functions or application-specific configuration and should not be assumed interchangeable.
Parts Desk Insight
The Freedom HF 1800 is a compact combined power solution for installations that need moderate AC output and a built-in charger. Because it produces modified sine wave power, customers operating sensitive electronics or equipment specifically requiring utility-grade AC should compare it with a true sine wave Freedom X, Freedom XC or Freedom SW model before ordering.
