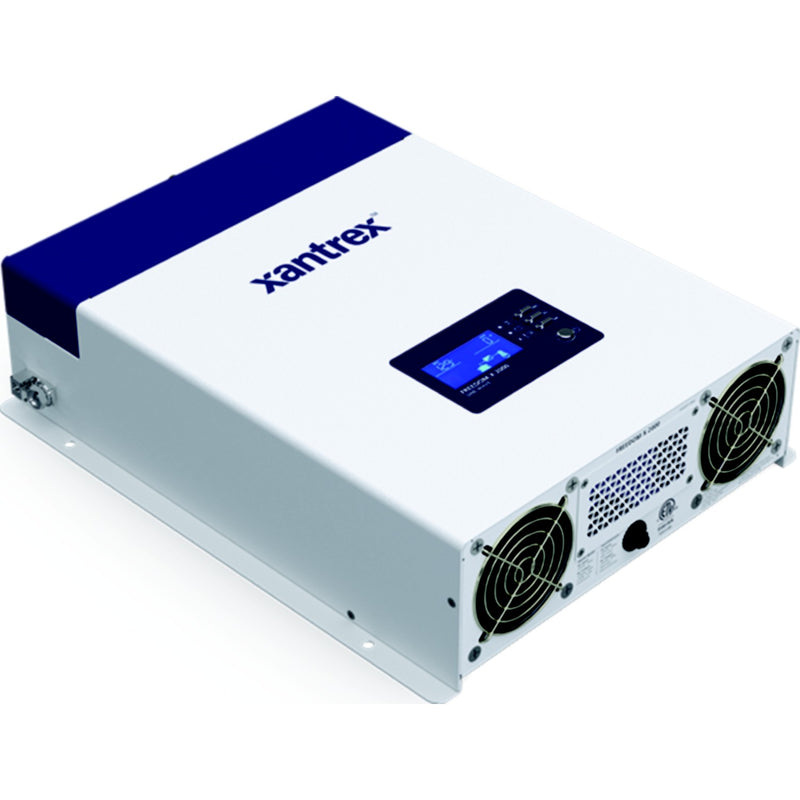

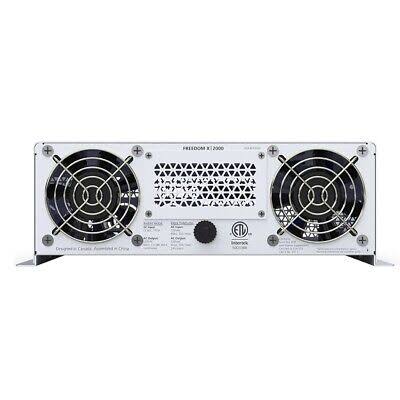

Xantrex 817200021 Freedom X Power Inverter, 2000W, 24V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Xantrex Freedom X 2000 is a compact 24-volt true sine wave inverter designed to supply clean 120-volt AC power aboard boats, recreational vehicles, commercial trucks and specialty vehicles. It delivers 2,000 watts of continuous output at temperatures up to 40°C, provides up to 4,000 watts of surge power for five seconds and includes an automatic AC transfer relay for installations connected to shore power or another external AC source.
Key Features
- Produces 2,000 watts of continuous true sine wave AC power
- Delivers up to 4,000 watts of surge power for five seconds
- Operates from a nominal 24-volt DC battery bank
- Supplies clean AC output suitable for sensitive electronics and motor-driven appliances
- Selectable 108, 110 or 120-volt AC output
- Configurable 50 or 60 Hz output frequency
- Integrated AC transfer relay rated for 30 amps, with 24-amp continuous capacity
- Quick-connect AC input and output terminals simplify hardwired installation
- Ignition-control input can shut the inverter down when the vehicle ignition is switched off
- Compatible with optional wired, Bluetooth and NMEA 2000 monitoring accessories
Application Compatibility
Designed for 24-volt battery systems requiring dependable onboard AC power, including:
- Recreational and commercial marine electrical systems
- Heavy-duty trucks
- Work trucks and mobile service vehicles
- Specialty and emergency vehicles
- Recreational vehicles equipped with 24-volt house banks
- Off-grid systems using a 24-volt battery bank
The Freedom X 2000 can power compatible refrigerators, microwaves, televisions, computers, coffee makers and other appliances within its continuous and surge ratings. This model is an inverter only and does not include an integrated battery charger.
Electrical Specifications
- Nominal DC input voltage: 24 volts
- DC operating range: 20–31 volts
- Maximum non-operating DC voltage: 50.4 volts
- Continuous inverter output: 2,000 watts at 40°C
- Continuous AC output current: 16.7 amps
- Surge output: 4,000 watts for five seconds
- Output waveform: True sine wave
- Selectable AC output voltage: 108, 110 or 120 volts
- Selectable frequency: 50 or 60 Hz
- AC operating voltage range: 85–140 volts
- Maximum safe non-operating AC voltage: 240 volts
- Nominal DC current at full load: 96 amps
- Peak inverter efficiency: 92.4%
- Full-load efficiency: 90.9% or greater
- Transfer relay rating: 30 amps, 24 amps continuous
Dimensions and Weight
- Dimensions without mounting flanges: 14.6 × 10.8 × 3.9 inches
- Dimensions with mounting flanges: 14.6 × 12 × 3.9 inches
- Metric dimensions without flanges: 370 × 275 × 100 mm
- Metric dimensions with flanges: 370 × 305 × 100 mm
- Net weight: 15.9 lb / 7.2 kg
- Operating temperature: -20°C to 60°C
- Full rated output maintained through 40°C, with output derated above 40°C
Certification and Marine Installation Notice
The Freedom X series is ETL listed to CSA 107.1, UL 458 and the UL 458 Marine Supplement. Xantrex specifies drip shield part number 808-1050 when the installation requires UL 458 Marine Supplement compliance. Marine installations must also follow applicable ABYC electrical requirements for circuit protection, conductor sizing, grounding, equipment placement and ventilation.
Fitment Notice
This model is designed exclusively for a nominal 24-volt DC battery bank. It must not be connected to a 12-volt system, and it should not be confused with the 12-volt Freedom X 2000 (817-2000).
Confirm the battery-bank voltage, expected AC loads, available mounting space and incoming shore-power rating before ordering. At full output, the inverter draws approximately 96 amps from the 24-volt system before allowing for installation losses.
When This Product Needs Replacement
Inspect or replace the inverter if it repeatedly shuts down under loads it previously supported, fails to transfer correctly between external AC and inverter power, develops recurring low-voltage, overload or over-temperature faults, or shows evidence of overheated terminals, corrosion or internal electrical failure.
Test the battery bank, DC cable voltage drop, external AC supply and circuit protection before replacing the inverter. Weak batteries, loose connections and undersized conductors can produce symptoms similar to inverter failure.
Installation Notes
Install the inverter in a dry, ventilated location protected from water, excessive heat and fuel vapours. Use appropriately sized marine-grade DC conductors, a correctly rated battery fuse and a readily accessible battery disconnect. Keep the DC cable runs as short as practical and follow the Xantrex installation guide for mounting orientation, grounding, ventilation clearance and AC wiring.
The 24-volt model draws approximately half the current of a comparable 2,000-watt 12-volt inverter, but it still requires substantial DC conductors and correctly selected overcurrent protection.
Compatible Accessories
- Xantrex Freedom X Bluetooth Remote Panel – 808-0817-02
- Xantrex Freedom X/XC Wired Remote Panel with 25-foot cable – 808-0817-01
- Xantrex GFCI Option – 808-9817
- Xantrex Marine Drip Shield – 808-1050
- Xantrex 25-foot communication cable – 31-6257-00
- Xantrex 50-foot communication cable – 31-6262-00
- Xantrex Freedom X Marine Combox for NMEA 2000 integration – 808-0822-01
Alternate Part Numbers
- Standard hardwired 24-volt model: 817-2000-21
- Unhyphenated catalogue reference: 817200021
- Similar 12-volt model: 817-2000 — not interchangeable
Parts Desk Insight
The 817-2000-21 is the 24-volt version of the Freedom X 2000 and must be matched to a 24-volt battery bank. Its approximately 96-amp full-load draw is lower than the roughly 192 amps required by the comparable 12-volt model (817-2000), which can reduce conductor size and voltage-drop concerns in suitable 24-volt installations. The system voltage must still be verified before installation because the 12- and 24-volt models are not interchangeable.
