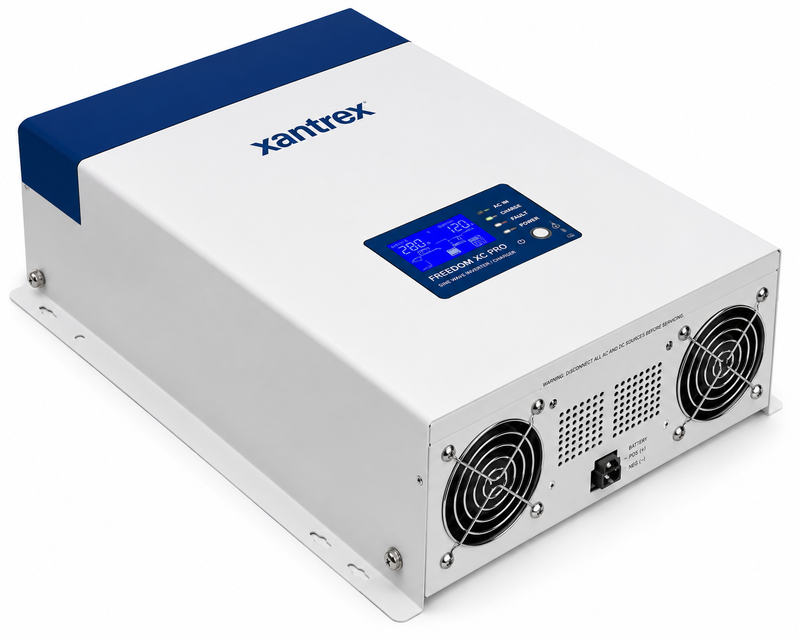

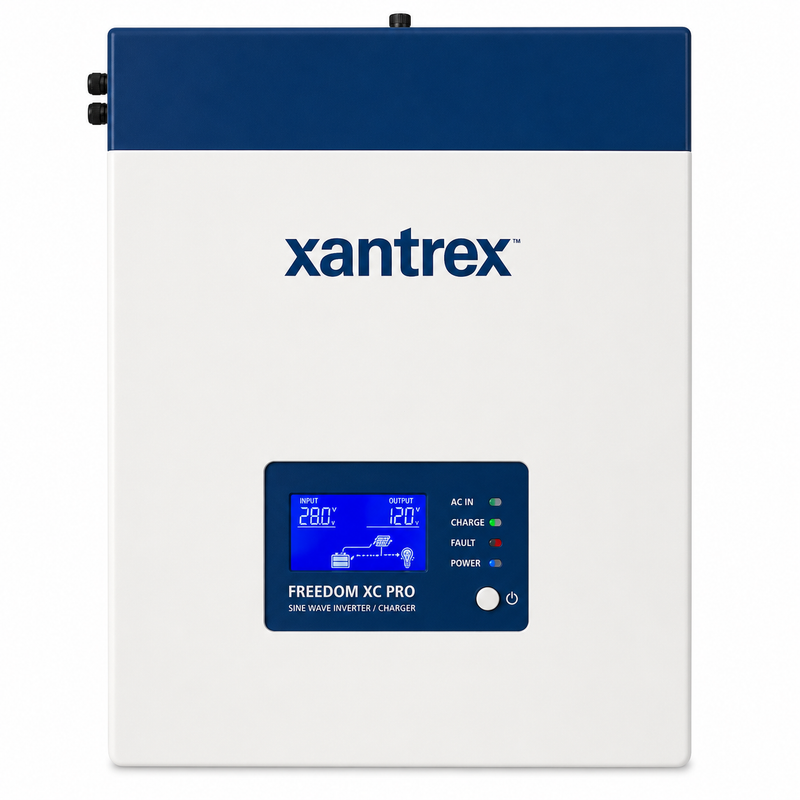

Xantrex 8182010 Freedom XC Pro Inverter/Charger, 2000 Watts
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Xantrex Freedom XC PRO 2000 is a compact 12-volt true sine wave inverter and high-output battery charger designed for marine, RV, commercial vehicle, work-truck and emergency-vehicle electrical systems. It supplies 2,000 watts of continuous AC power, delivers up to 4,000 watts of surge power for five seconds and incorporates a programmable 100-amp multistage battery charger. Built-in communications and Bluetooth capability allow system monitoring and configuration when used with the appropriate Xantrex remote panel.
Key Features
- Produces 2,000 watts of continuous true sine wave AC power at temperatures up to 40°C
- Delivers up to 4,000 watts of surge power for five seconds to start refrigerators, microwaves and other motor-driven loads
- Integrated battery charger provides a user-selectable charging output from 5 to 100 amps
- Supports configurable charging profiles for conventional and lithium-ion battery banks
- Can initiate charging from a deeply discharged battery measuring as low as 0 volts
- Selectable 108, 110 or 120-volt AC output with configurable 50 or 60 Hz frequency
- Built-in communications card supports system monitoring and OEM configuration
- Bluetooth monitoring and configuration available through the optional Xantrex Bluetooth remote panel
- Quick-connect AC input and output terminals simplify hardwired installation
- Wide 10.1 to 18.0-volt DC operating range supports modern high-output charging systems and alternators
Application Compatibility
Designed for 12-volt battery systems requiring dependable onboard AC power and high-capacity battery charging, including:
- Recreational and commercial marine electrical systems
- Motorhomes, travel trailers and camper vans
- Heavy-duty and commercial trucks
- Work trucks and mobile service vehicles
- Specialty and emergency vehicles
- Off-grid systems requiring a combined inverter, charger and transfer relay
The 818-2010 is the standard hardwired Freedom XC PRO 2000 model. Xantrex also lists the 818-2010-11 version with a built-in GFCI option and separate Freedom XC PRO Marine models under different part numbers.
Electrical Specifications
- Nominal DC input voltage: 12 volts
- DC operating range: 10.1–18.0 volts
- Continuous inverter output: 2,000 watts
- Continuous AC output current: 16.7 amps
- Surge output: 4,000 watts for up to five seconds
- Output waveform: True sine wave
- Selectable AC output voltage: 108, 110 or 120 volts
- Selectable frequency: 50 or 60 Hz
- Peak inverter efficiency: 91%
- Maximum battery charging output: 100 amps
- User-selectable charging current: 5–100 amps
- Maximum configurable charger voltage: 18 volts DC
- Transfer relay rating: 24 amps continuous, 30 amps surge
- Maximum nominal DC current at full inverter load: 192 amps
Dimensions and Weight
- Dimensions without mounting flanges: 15.4 × 10.8 × 4.9 inches
- Dimensions with mounting flanges: 16.0 × 12.0 × 4.9 inches
- Metric dimensions without flanges: 390 × 275 × 125 mm
- Metric dimensions with flanges: 406 × 305 × 125 mm
- Net weight: 17.1 lb / 7.76 kg
Certification and Marine Installation Notice
The Freedom XC PRO 2000 is ETL listed to CSA 107.1 and UL 458. Compliance with the UL 458 Marine Supplement requires the Xantrex 808-1050 drip shield. Marine installations must follow applicable ABYC electrical standards, including correct overcurrent protection, DC cable sizing, grounding, ventilation and battery-bank configuration.
Fitment Notice
Confirm that the vessel or vehicle uses a 12-volt battery bank and that its batteries, conductors, disconnects, fuses and charging sources can support inverter currents approaching 192 amps at full output. This is a hardwired inverter/charger and should not be selected solely by wattage; available battery capacity, expected AC loads, installation clearance and shore-power circuit rating must also be considered.
When This Product Needs Replacement
Inspect or replace the inverter/charger when it produces repeated overload or over-temperature faults under previously supported loads, no longer transfers correctly between inverter and external AC power, fails to maintain the programmed charging voltage, develops communication faults or shows evidence of overheating, corrosion or damaged terminals. Battery condition, cable voltage drop and external circuit protection should be checked before condemning the unit.
Installation Notes
Install in a dry, ventilated location protected from water, fuel vapours and excessive heat. Use appropriately sized marine-grade DC conductors, a correctly rated battery fuse and a readily accessible disconnect. Keep battery cables as short as practical and follow Xantrex requirements for mounting orientation, ventilation clearance, AC grounding and neutral connections. The optional 808-1050 drip shield is required for UL 458 Marine Supplement installations.
Compatible Accessories
- Xantrex Freedom X Bluetooth Remote Panel – 808-0817-02
- Xantrex Freedom X/XC Remote Panel with 25-foot cable – 808-0817-01
- Xantrex GFCI Option – 808-9817
- Xantrex Marine Drip Shield – 808-1050
- Xantrex 25-foot communication cable – 31-6257-00
- Xantrex 50-foot communication cable – 31-6262-00
Alternate Part Numbers
- Standard hardwired model: 818-2010
- Model with built-in GFCI: 818-2010-11
- Freedom XC PRO Marine 2000: 818-2015
Parts Desk Insight
The 2,000-watt rating is only one part of selecting an inverter/charger. This model can draw approximately 192 amps from the 12-volt battery system at full load, so battery capacity, fuse protection and cable sizing are critical to dependable operation. For a marine installation, also confirm whether the standard 818-2010 with the required drip shield or the dedicated 818-2015 Marine model is the better match for the vessel.
