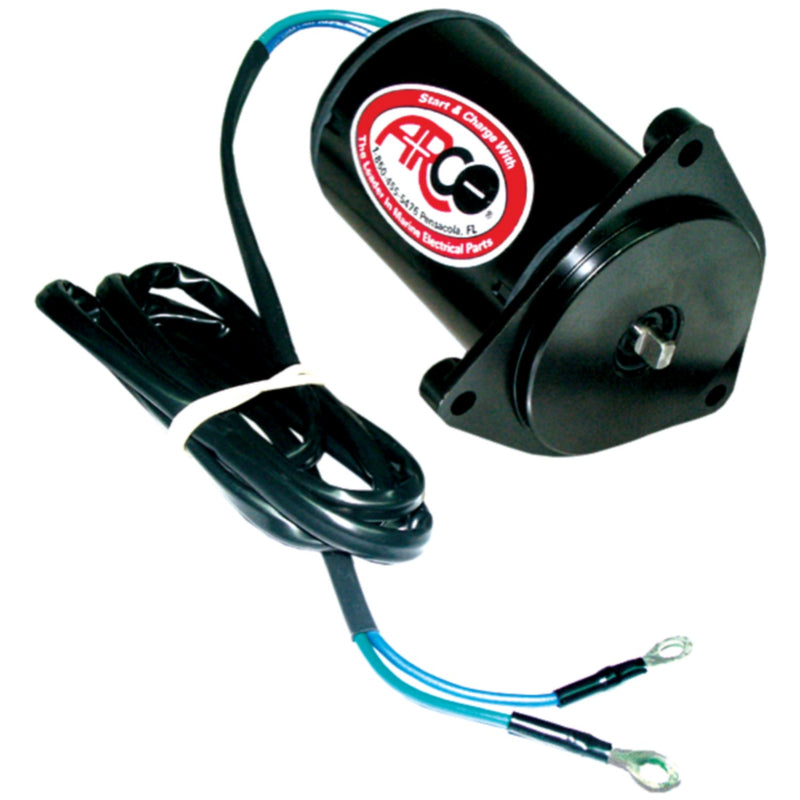

ARCO 6260 Yamaha Heavy-Duty Power Tilt & Trim Motor
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The ARCO 6260 is a heavy-duty replacement power tilt and trim motor for select Yamaha outboards using the 6H1-series trim system. It features a 3-bolt mounting pattern, 2-wire electrical connection, and flat-blade drive shaft with ring-terminal wire ends — matching the original Yamaha 6H1-43880-02 configuration. An O-ring is included for installation. The motor is epoxy powder-coated for corrosion protection, and the shaft uses induction case-hardened bearing surfaces for improved wear resistance over the service life of the motor.
Key Features
- Heavy-duty replacement power tilt and trim motor
- 3-bolt mounting pattern with 2-wire electrical connection
- Flat-blade drive shaft with ring-terminal wire ends
- Epoxy powder-coated for corrosion protection
- Induction case-hardened bearing surfaces for extended wear resistance
- Includes O-ring for installation
- ARCO Part Number: 6260 | SKU: 57-6260
Replaces / Cross-References
- Yamaha 6H1-43880-02 / 6H1-43880-02-00
- Sierra 18-6781
Compatible Applications
- 1992–2002: Yamaha 90 HP
- 1992–1995: Yamaha 50–90 HP
- 1994: Yamaha 40 HP
- 1996: Yamaha 70–90 HP
- 1997 and newer: Yamaha 60, 70, and 90 HP
- All applications require 3-bolt mount, 2-wire connection, and flat-blade shaft — verify original Yamaha part number before ordering
Parts Desk Insights
Best Use Case: The 6260 is the right replacement when electrical testing confirms the tilt/trim motor itself has failed — intermittent or no trim operation, corrosion, or a motor that no longer runs reliably under load. The critical fitment check is the combination of 3-bolt mount, 2-wire connection, and flat-blade shaft. Yamaha used several trim motor configurations across overlapping horsepower ranges and model years that are not interchangeable, so matching the original Yamaha 6H1-43880-02 part number is the safest confirmation before ordering. For a related Yamaha trim motor covering different applications, see the ARCO 6258 Yamaha Tilt & Trim Motor.
