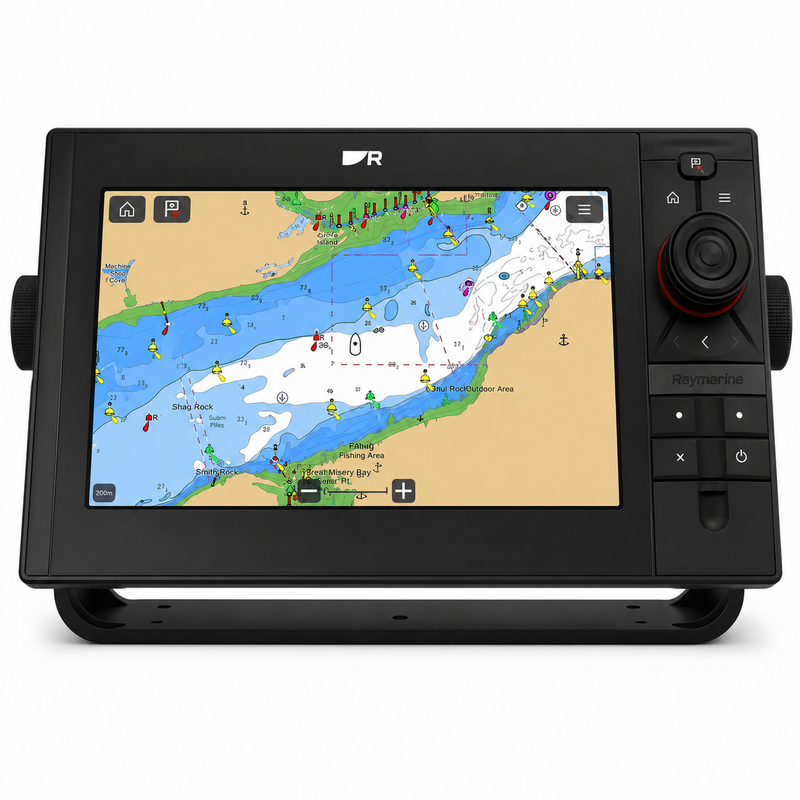

Raymarine Axiom 2 Pro 9" S – HybridTouch Chartplotter & Fishfinder
The Axiom 2 Pro 9" S is Raymarine’s entry point into the Axiom 2 Pro family — a clean, capable 9-inch HybridTouch multifunction display built for navigation, fishfinding, radar, autopilot, and full onboard network integration. It’s the right choice when you want a premium, future-ready display with built-in sonar and don’t need the dual-sonar ports of the RVM models.
Operate it by touch or physical keypad, connect it to your Raymarine network, and get on the water with LightHouse North America charts included right out of the box.
Display & Performance
- 9" HD IPS optically bonded display — touchscreen and physical keypad (HybridTouch)
- 1280 x 720 resolution
- 6-core processor
- Built-in Wi-Fi and Bluetooth
- IPX6 / IPX7 waterproof rating
- Operating voltage: 12/24V (8–32 Vdc), 30W power consumption
Sonar Capability
- Built-in High CHIRP conical sonar — single channel
- 25-pin RealVision-type transducer port
- Compatible with CPT-S style transducers using the A80490 adapter cable (sold separately)
Connectivity & Integration
- NMEA 2000 / SeaTalkng via DeviceNet connector
- Two RayNet Ethernet ports for network expansion
- Compatible with Raymarine radar, autopilot, AIS, cameras, and VHF
- LightHouse North America charts included
Dimensions
- 11.78" W x 6.84" H x 9.25" D (depth includes rear cables)
Also Consider
- Axiom 2 Pro 12" S — same High CHIRP conical sonar on a larger 12" screen
- Axiom 2 Pro 9" RVM — adds RealVision MAX imaging sonar and a 1kW CHIRP port for serious fishfinding
- Axiom 2 Pro 12" RVM — largest screen with full dual-sonar capability
Parts Desk Insights
The 9" S is the go-to recommendation for customers who want a modern Axiom 2 Pro display primarily for navigation, radar, and autopilot integration — and whose fishfinding needs are met by a single High CHIRP channel for depth and basic bottom reading. It’s a strong fit for cruisers, sailors, and powerboaters who aren’t targeting deep-water species or needing 3D imaging sonar. Key pre-sale checks: confirm the chart region is North America, verify the transducer type (the 25-pin port is standard, but CPT-S style transducers need the A80490 adapter — not included), and ensure the helm has adequate depth for rear cable clearance (~9.25" including cables).
