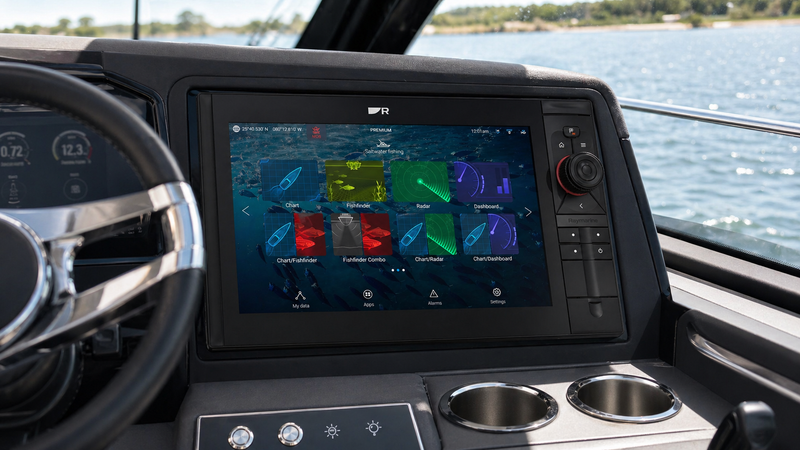

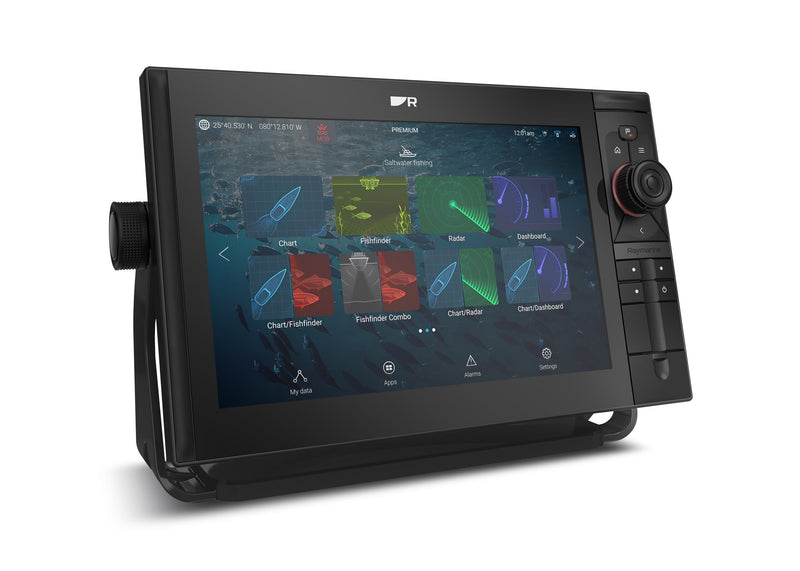

Raymarine Axiom 2 Pro 12 RVM RAY E70656-00-102

Raymarine Axiom 2 Pro 12 RVM E70656-00-102 is a premium 12-inch HybridTouch chartplotter/fishfinder with integrated RealVision MAX sonar, 1kW CHIRP sonar, built-in GPS/GNSS, Raymarine network integration, and LightHouse North America charts included. It combines touchscreen control with a physical keypad, making it a strong helm upgrade for fishing, navigation, radar, autopilot, video, and networked onboard system control.

Key Features

• Raymarine part number E70656-00-102.
• Model: Axiom 2 Pro 12 RVM.
• 12.1" IPS HybridTouch display with touchscreen and keypad control.
• Display resolution: 1280 x 800 WXGA.
• Powered by Raymarine's fast 6-core processor.
• Runs Raymarine LightHouse operating system.
• Includes LightHouse North America charts.
• Built-in RealVision MAX sonar.
• Built-in 1kW CHIRP sonar.
• RealVision MAX sonar supports High CHIRP, DownVision, SideVision, and RealVision 3D.
• RealVision MAX port supports High CHIRP 200 kHz, DownVision 350 kHz, SideVision 350 kHz, and RealVision 3D 350 kHz.
• 1kW CHIRP port supports 42–250 kHz, depending on transducer.
• RealVision MAX high CHIRP sonar output: 600 W RMS.
• Traditional dual-channel CHIRP sonar output: 1kW RMS.
• Approximate RealVision MAX depth ranges: High CHIRP up to 1,200 ft, DownVision up to 600 ft, SideVision up to 300 ft, and RealVision 3D up to 300 ft in suitable conditions.
• 1kW CHIRP depth range up to approximately 3,000 ft in optimum conditions with a compatible 1kW transducer.
• 64GB solid-state internal storage.
• Dual front-mounted MicroSDXC card slots.
• Built-in GNSS receiver with support for common satellite systems.
• 10 Hz GPS/GNSS refresh rate.
• Raymarine network support for compatible radar, sonar, autopilot, video, and onboard systems.
• Supports SeaTalkng / NMEA 2000 integration.
• Includes HDMI output, analog video input, analog audio connections, and external GPS antenna connection.
• Waterproof rating: IPX6 / IPX7.
• Operating voltage range: 8–32 Vdc.
• Fuse rating: 15A.
• NMEA 2000 LEN: 1.
• Approximate surface / flush-mounted dimensions: 8.77" H x 14.1" W x 9.18" D including cables.
• Approximate trunnion-mounted dimensions: 9.69" H x 15.3" W x 9.18" D including cables.

Marine Electronics Compatibility

The Axiom 2 Pro 12 RVM is selected by the boat's helm layout, Raymarine network, sonar needs, charting region, transducer plan, radar/autopilot integration, and available mounting space rather than by engine model. It is suited for installations where a large, high-performance multifunction display is needed for navigation, fishfinding, radar, video, autopilot, and system monitoring.

Compatible setup checks include:

• Raymarine Axiom / LightHouse network planning.
• Compatible RealVision MAX or RealVision 3D transducer through the 25-pin sonar port.
• Compatible 1kW CHIRP transducer through the 11-pin sonar port.
• Raymarine radar, autopilot, camera, AIS, VHF, and network accessories where applicable.
• Proper SeaTalkng / NMEA 2000 backbone layout.
• Correct chart region requirement for North America.
• Sufficient helm space for flush, surface, or trunnion mounting.
• Correct power supply, fuse protection, grounding, and cable routing.

Fitment & System Compatibility Notice

Confirm the full electronics layout before ordering, especially the display mounting method, chart region, transducer type, sonar connector, radar/network needs, SeaTalkng / NMEA 2000 setup, and power supply. This package includes the display and North America charting, but transducer selection must match the boat's hull, fishing style, target depth, and sonar features required.

When This Unit Is a Good Upgrade

The Axiom 2 Pro 12 RVM is a strong upgrade when replacing an older Raymarine display, building a modern offshore fishing helm, adding RealVision 3D sonar, integrating radar and autopilot, or moving to a larger screen with both touchscreen and keypad control. It is especially useful for operators who want a serious navigation and fishfinding display with physical controls for rough-water use.

Installation Notes

Install using the correct Raymarine mounting method, power/video/audio cable, network cable, SeaTalkng adapter, grounding hardware, and transducer connection. Plan cable access carefully because the listed depth includes rear cable clearance. For sonar performance, transducer selection and placement are just as important as the display itself.

Included Components

• Axiom 2 Pro 12 RVM display unit
• User-configurable keypad
• LightHouse North America chart
• Suncover
• Gasket
• Trunnion knobs
• Trunnion bracket
• Optional grounding connection hardware
• DeviceNet to SeaTalkng adapter cable, 1 m
• RayNet female-to-female network cable, 2 m
• Mounting fixings
• Power / video / audio cable, 1.5 m
• Documentation

Alternate/Superseded Part Numbers

The active Raymarine part number for this package is E70656-00-102. It identifies the Axiom 2 Pro 12 RVM package with North America LightHouse charting. Related Axiom 2 Pro 12 RVM packages may use different suffixes depending on chart region or chart inclusion, so the full part number should be matched before ordering.

Parts Desk Insight

The key with this unit is confirming the chart region and transducer plan before purchase. The display has strong built-in sonar capability, but the final performance depends on pairing it with the correct RealVision or 1kW transducer for the hull and the type of fishing or navigation the customer wants.

Shipping: This product is warehoused locally and usually ships within 3–4 business days. ⚓
