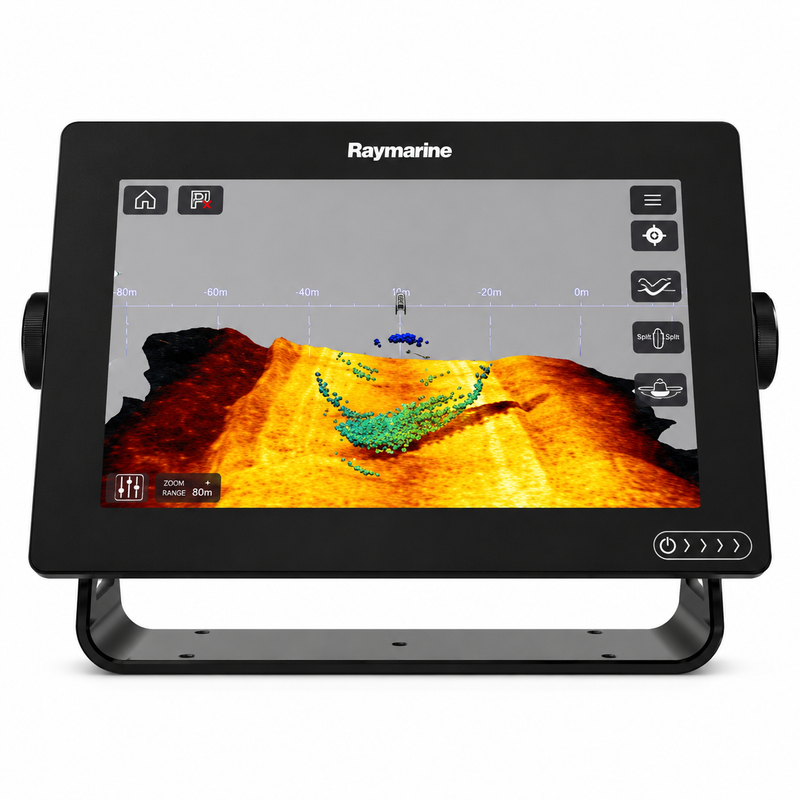

Raymarine Axiom+ 9" RealVision 3D – Multitouch Chartplotter with Built-In Sonar
The Axiom+ 9" RealVision 3D is the standout model in the Axiom+ lineup — it’s the only Axiom+ display that comes with sonar built right in. A 600W RealVision 3D sonar module is integrated into the unit, so you get DownVision, SideVision, and full 3D underwater imaging without needing a separate sonar module or black box. Just add a compatible transducer and you’re fishing.
Pair that with a crisp 9" multitouch display, LightHouse North America charts included, and full Raymarine network compatibility, and you have a capable all-in-one navigation and fishfinding solution for a wide range of boats.
Display
- 9" WXGA multitouch display
- 1280 x 720 resolution
- Intuitive multitouch interface
- Dimensions: 9.65" W x 6.22" H x 3.00" D
- Power consumption: 11.98W
Built-In Sonar
- Integrated RealVision 3D sonar — 600W output
- DownVision, SideVision, and RealVision 3D imaging
- Transducer sold separately — see compatible options below
Connectivity & Integration
- LightHouse North America charts included
- Compatible with Raymarine radar, autopilot, AIS, cameras, and VHF
- SeaTalkng / NMEA 2000 network integration
- Built for permanent marine installation
Compatible Transducers
A RealVision 3D transducer is required and sold separately. Choose from: RV-212 Bronze Thru-Hull Pair (12"), RV-312 Plastic Thru-Hull Pair (12"), or RV-320 Plastic Thru-Hull Pair (20"). Contact us to confirm the right match for your hull type and installation depth.
Also Consider
- Axiom+ 12" — larger 12" multitouch display, RealVision 3D ready (sonar module not built in)
- Axiom+ 7" — compact 7" multitouch display for smaller helms
- Axiom 2 Pro 9" RVM — next-generation 9" HybridTouch with RealVision MAX and dual 1kW CHIRP sonar ports
- Axiom 2 Pro 9" S — next-generation 9" HybridTouch with built-in High CHIRP conical sonar
Parts Desk Insights
The Axiom+ 9" RealVision 3D is the best pick in the Axiom+ family for customers who want imaging sonar built into the display — no separate module required. It’s a strong fit for anglers on mid-size boats who want DownVision and SideVision capability without the complexity of a multi-box setup. If the customer is open to the next generation, the Axiom 2 Pro 9" RVM offers significantly more sonar power (RealVision MAX + 1kW CHIRP) and HybridTouch control at a higher price point. Key pre-sale checks: confirm the chart region is North America, verify transducer compatibility for the hull, and note that the Axiom+ 9" RV does not have a physical keypad — touchscreen only.
