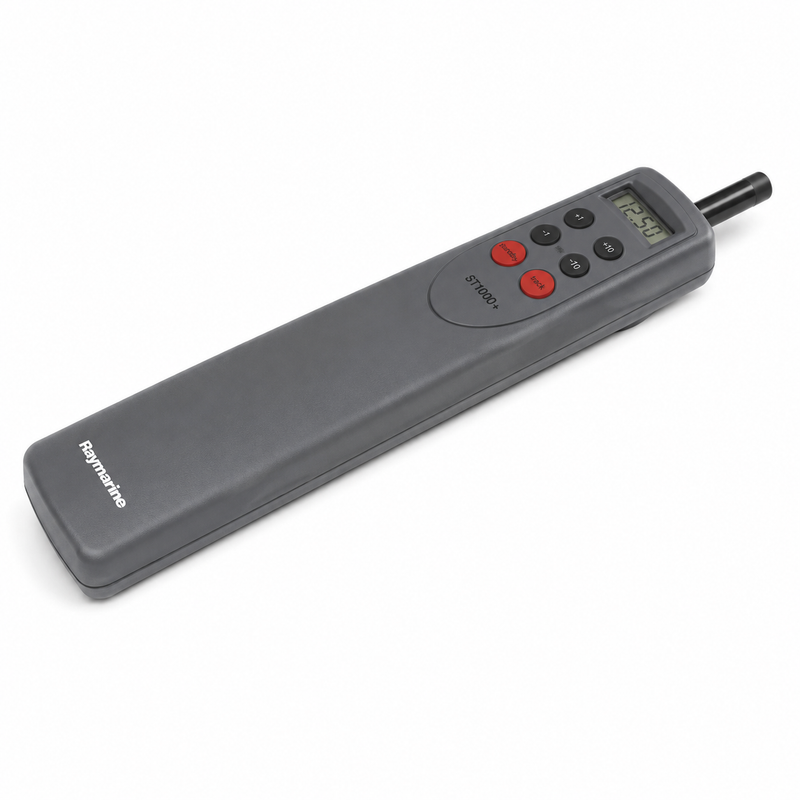

Raymarine ST1000+ Tiller Pilot – 3,000 kg / 6,600 lb | AutoTack | SeaSway | RAY-A12004

Hands-Free Sailing for Lighter Boats — Tack, Trim, Relax

The Raymarine ST1000+ Tiller Pilot is a removable cockpit autopilot designed for tiller-steered sailboats up to 3,000 kg (6,600 lb). It’s the entry point into Raymarine’s tiller pilot range — delivering the same core AutoTack and SeaSway technology as the larger ST2000+, sized and priced for smaller cruising and racing sailboats.

AutoTack executes precise tacks at the push of a button while you handle the sheets — a genuine advantage for solo sailors and short-handed crews who need to manage both the helm and the sails through a tack. SeaSway continuously adapts to wave action, keeping the boat on course while using the minimum amount of power — important on smaller boats where battery capacity is more limited.

The clear LCD display and 6-button keypad are designed for cockpit use — readable in bright sunlight, operable with gloves on. It works as a stand-alone pilot using its internal compass, or connects to SeaTalk or NMEA GPS for course-over-ground steering and waypoint navigation. The removable design means it stows below when not in use, protecting it from UV and weather.

Key Features

• AutoTack — tacks the boat precisely at the push of a button
• SeaSway — adapts to wave action to hold course while conserving battery power
• Rated for boats up to 3,000 kg (6,600 lb) — ideal for 25–35 ft tiller-steered sailboats
• SeaTalk and NMEA GPS compatible — integrates with chartplotters for waypoint steering
• Clear LCD display + 6-button keypad — easy to read and operate in the cockpit
• Removable design — stows below when not in use
• 12V DC operation

Specifications

• Boat displacement rating: Up to 3,000 kg (6,600 lb)
• Voltage: 12V DC
• Steering: Tiller (removable cockpit mount)
• Display: LCD with 6-button keypad
• Connectivity: SeaTalk / NMEA GPS
• Key functions: AutoTack, SeaSway
• SKU: RAY-A12004

Compare Raymarine Tiller & Cockpit Autopilots

• Raymarine ST2000+ Tiller Pilot – 4,500 kg / 10,000 lb | RAY-A12005 — step up for heavier displacement boats
• Raymarine ST1000 Removable Cockpit Autopilot | 152-A12004
• Raymarine ST2000 Removable Cockpit Autopilot | 152-A12005
• Raymarine EV-100 Cockpit Autopilot – Sail | 152-T70152 — premium evolution autopilot for larger vessels
• Raymarine EV-100 Power Autopilot System | 152-T70154
• Browse all Networked Marine Electronics & Accessories

🔧 Parts Desk Insights

Best use case: The ST1000+ is the right choice for solo and short-handed sailors on smaller tiller-steered sailboats in the 25–35 ft range — day sailors, weekenders, and coastal cruisers where the 3,000 kg displacement rating is a good fit. It’s particularly well suited to club racers and performance cruisers who want AutoTack for short-handed racing or delivery passages, and to sailors who are new to autopilots and want a straightforward, proven system without the complexity or cost of a full evolution autopilot. The removable design is a practical advantage for boats kept on moorings or in marinas where security is a consideration.

Heads up: Confirm your boat’s displacement is under 3,000 kg before ordering — if you’re close to or over that limit, the ST2000+ (RAY-A12005) is the correct choice and worth the additional investment for reliable performance. For wheel-steered vessels or boats over 4,500 kg, step up to the EV-100 Cockpit Autopilot. This is a special order item — please allow 4–5 business days for availability confirmation and dispatch after ordering.
