Johnson Pump 09-45589 Flexible Impeller Pump Service Kit | F35B-8 / F35B-8007 / F35B-9
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Details
- Part Number: 09-45589 (Johnson Pump) | Distributor SKU: 189-0945589 / 189-0945589F1
- Brand: Johnson Pump / SPX FLOW
- Official Product Type: Flexible Impeller Pump Complete Service Kit
- System: Raw-Water / Seawater Cooling — Flexible Impeller Pump
- Cross-Reference (Volvo Penta pump family): 858065
- UPC: 7330717002503
- Weight (approx.): ~400 g / ~0.9 lb

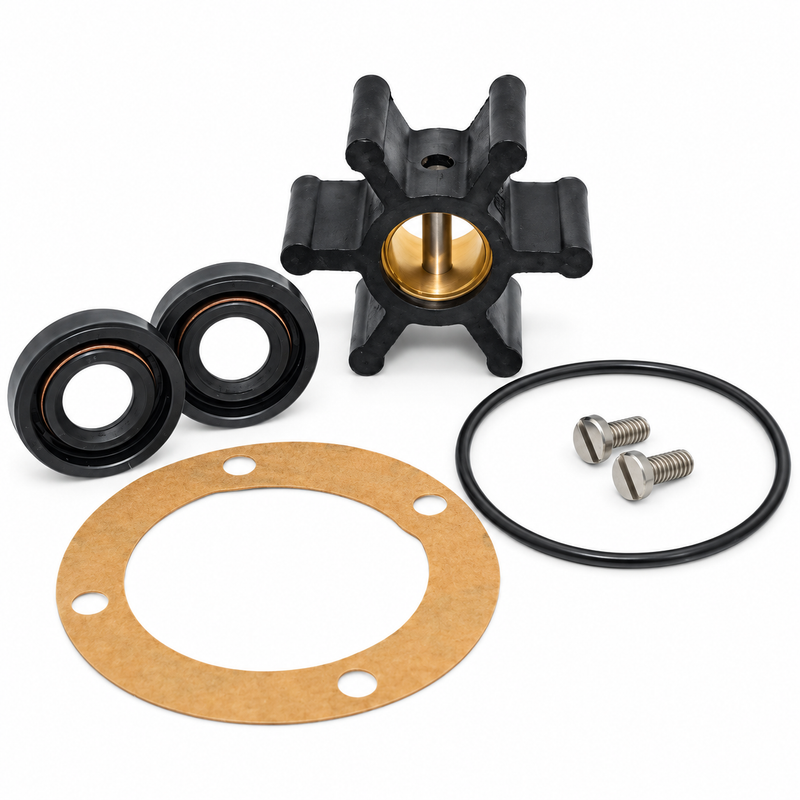

Kit Contents
This is a complete service kit covering all principal wear and sealing components in the pump. Contents include:
- 1 × 09-808B-1 flexible impeller
- 2 × lip seals
- 1 × gasket
- 1 × O-ring
- 1 × service grease / lubricant
- 2 × cover screws
Compatible Pump Applications
This service kit is designed for the following Johnson Pump F35B-series flexible impeller pump models. Confirm your pump model number stamped on the pump housing before ordering.
- Johnson Pump F35B-8
- Johnson Pump F35B-8007
- Johnson Pump F35B-9
Compatible pump part numbers include:
- Johnson Pump 10-35211
- Johnson Pump 10-24178
- Johnson Pump 10-24569
- Johnson Pump 10-35015
- Johnson Pump 10-35038
- Johnson Pump 10-35157
Fitment Notice
Match this kit to your pump model number stamped on the pump housing, not just the engine model or horsepower. F35B pumps were produced in multiple configurations; service-kit compatibility can vary by pump version and seal arrangement. If you are unsure of the pump model, confirm the impeller number currently fitted — this kit includes the 09-808B-1 impeller. Match that number to what is in your pump before ordering.
Service Interval
Johnson Pump recommends inspecting flexible impeller pumps at least annually and servicing them based on condition. As a general guideline:
- Inspect the impeller at every season start
- Replace the impeller at the first sign of cracking, hardening, missing blades, or reduced output
- Replace seals, O-ring, and gasket whenever the pump is opened for impeller replacement
- Service the complete pump if it has run dry or overheated
A full service kit makes it practical to replace all wear items in a single visit rather than sourcing components individually.
Installation Notes
- Close the raw-water intake seacock before disassembly
- Remove the pump cover and extract the old impeller — inspect all blades and locate any missing pieces before proceeding
- If blade fragments are missing, flush and inspect all downstream cooling passages and the heat exchanger before reassembling
- Replace all seals, O-ring, and gasket included in the kit — do not reuse old sealing components
- Inspect the pump housing bore and cam for scoring or wear; replace the housing if damaged
- Lubricate the new impeller with the included service grease before fitting
- Rotate the shaft in the normal running direction while seating the impeller to pre-set vane direction
- Fit the new cover gasket and reinstall the cover with the supplied screws
- Check for leaks and verify cooling-water flow at the exhaust outlet after startup
Related Parts
- Johnson Pump 09-808B-1 F35 Impeller Kit — the impeller included in this kit, available separately
- Johnson Pump 09-808B-1 MC97 Impeller For F35 Pumps — alternative listing for the same impeller
- Seachoice F35 Impeller Kit 17788 — aftermarket equivalent impeller for F35 pumps
- Jabsco 22405-0001 Profile D Neoprene Impeller Kit — Jabsco equivalent impeller
- Johnson Pump 09-45587 Service Kit — service kit for other F-series pump models
- Browse all impellers and pump service parts
Parts Desk Insights
Best use case: The 09-45589 kit is the right choice when you are already in the F35B pump for impeller replacement and want to address all the wear items at once. Buying the full kit is almost always more cost-effective than sourcing the impeller, seals, O-ring, gasket, and screws separately, and it ensures all sealing surfaces are renewed at the same time — particularly important on pumps with high hours or any history of running dry.
Common issue: The most frequent mistake is ordering by pump size or engine model rather than the stamped pump model number. The F35B family has several variants (F35B-8, F35B-8007, F35B-9), and while they share the same impeller, the seal and gasket configuration can differ. Always confirm the full pump model number before ordering this kit. If any impeller blades are missing after removal, do not return the engine to service until the fragments have been located and removed from the cooling circuit.
