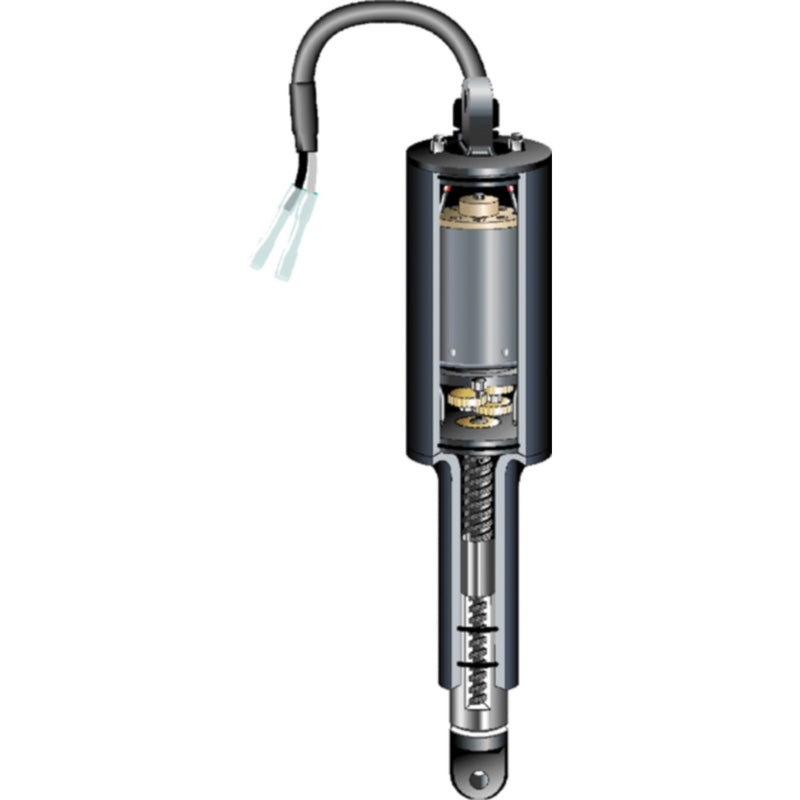

Lenco 102 Standard Series 12V Trim Tab Actuator
The Lenco 102 Standard Series is a proven 12V electric trim tab actuator suited for a wide range of applications including performance ski boats, tow boats, and standard trim tab systems. It has been the standard actuator for Lenco Trolling Tab systems since 2000, offering reliable actuation in a robust, field-tested package. Comes pre-wired with a Deutsch connector and a 6’ cable for straightforward integration into any Lenco-compatible wiring harness. Mounting brackets are sold separately.
Compatible Applications
- Lenco Trolling Tab systems, 2000 to present (102 Standard Series standard actuator)
- Performance ski boats and tow boats
- Direct replacement for worn or failed 102 Standard Series actuators
- New trim tab installations using Lenco-compatible mounting hardware
Specifications
- Part Number: 622-15059001
- Series: 102 Standard
- Voltage: 12V
- Connector: Deutsch connector included
- Cable Length: 6 ft
- Mounting Brackets: Sold separately
- Barcode: 874847003247
Parts Desk Insights
Best used as a direct replacement when a 102 Standard actuator has failed or lost travel speed — the most common service scenario on Lenco Trolling Tab systems that have been in service for several years. If you need more thrust or durability for a high-cycle tow boat application, step up to the Lenco 102 XD Series Actuator, or choose the Lenco 102F Fast Series Actuator if faster tab response is the priority. For the entry-level option, the Lenco 101 Standard Series Actuator covers lighter-duty installations. For mounting hardware, the Lenco 120 Lower Mounting Bracket Kit for XD & XDS Actuators and the Lenco Upper Mounting Bracket with Gland Seal are the correct brackets for this actuator. A complete bracket set is also available as the Lenco Trim Tab Actuator Mounting Bracket Replacement Kit.
