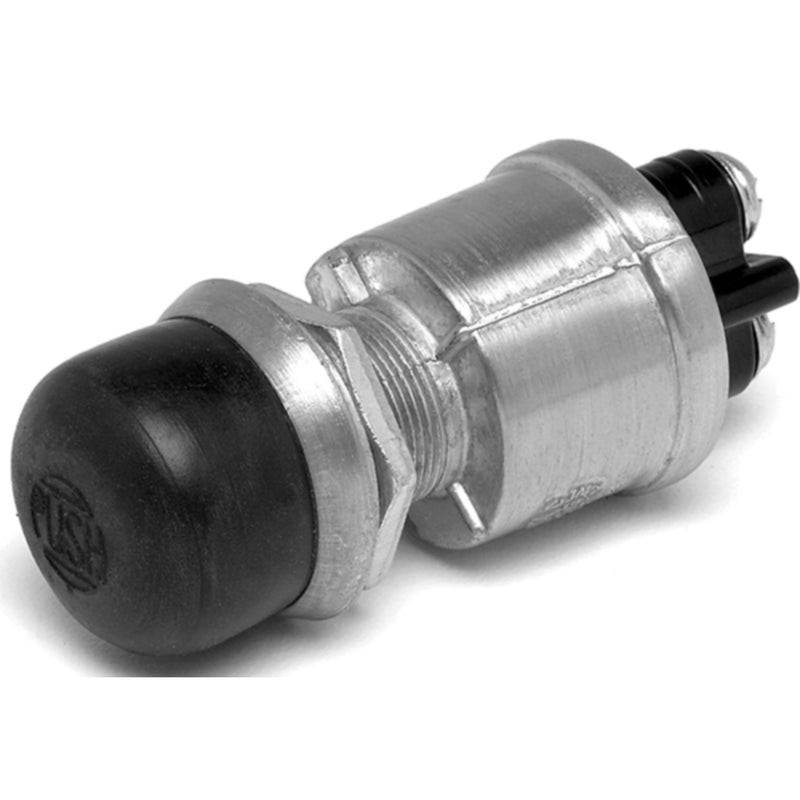

Cole Hersee 90030BP Heavy-Duty Push-Button Switch – Plated Steel Housing, 35A @ 12V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Cole Hersee 90030BP is a heavy-duty momentary push-button switch with a plated steel housing, rated at 35A at 12V DC (20A at 24V DC). The high current rating makes it suitable for demanding applications such as engine starters, windlass controls, and other high-draw circuits where a standard low-amperage push-button switch would be undersized.
The recessed face nut is designed to prevent accidental actuation — the button sits below the face nut surface so it cannot be triggered by incidental contact. An O-ring seal in the mounting stem protects against moisture ingress at the panel. Two screw terminals provide secure wiring connections. The 5/8"-32 mounting stem (21/32" long) fits standard marine panel cutouts.
- Heavy-duty momentary push-button switch
- Plated steel housing
- Rated 35A @ 12V DC / 20A @ 24V DC
- Recessed face nut — prevents accidental actuation
- O-ring seal in mounting stem — moisture resistant
- 2 screw terminals
- Mounting stem: 5/8"-32 x 21/32" long
- Boxed
Best Use Case: Designed for high-current momentary switching applications on marine vessels — most commonly used as an engine start button, windlass or anchor winch control, or bow thruster activation switch where the circuit draws more current than a standard push-button switch can handle. The recessed face nut is particularly valuable in locations where accidental activation could cause a safety issue.
Parts Desk Insights: The 35A @ 12V rating is significantly higher than standard push-button switches — confirm your circuit’s current draw before selecting a switch. For lower-current momentary applications (engine horn, trim tabs, bilge override), the Cole Hersee M485BP Momentary Push-Button Switch or the Seachoice 11771 Brass Body Momentary Push-Button Switch are more appropriate. The 21/32" stem is shorter than the M485BP’s 1" stem — confirm panel thickness compatibility before ordering. For fuse and circuit protection, see the Seachoice 11276 Splash-Proof ATC Fuse Block – 4 Circuit.
