Crusader Exhaust Elbow | OEM Part R029016A

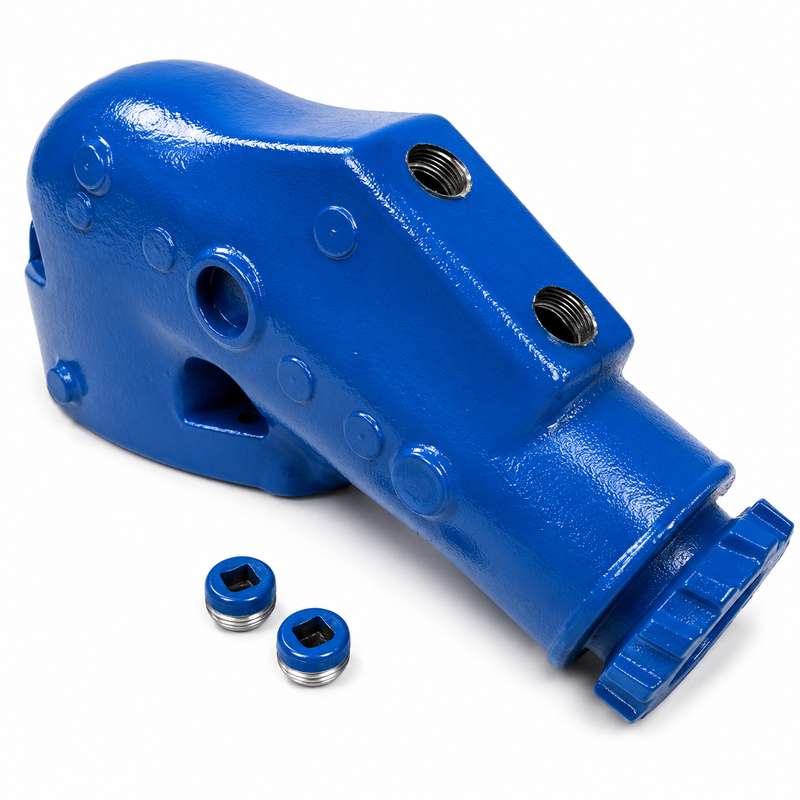

Crusader Exhaust Elbow — OEM Part R029016A

Genuine Crusader OEM exhaust elbow for compatible Crusader marine inboard engines. The exhaust elbow connects to the exhaust riser and routes water-cooled exhaust gases from the riser into the exhaust hose and out of the vessel. It is a water-cooled component and is a critical part of the wet exhaust system on compatible Crusader engines.

Part Information

• Part Number: R029016A
• Brand: Crusader
• Official Product Type: Exhaust Elbow
• System: Wet Exhaust — Riser-to-Hose Elbow
• Construction: Cast iron, marine-grade

Compatible Applications

• Compatible Crusader marine inboard engines where the parts diagram specifies exhaust elbow R029016A
• Always confirm fitment by engine model, serial number, and parts diagram before ordering — elbow specifications vary by engine family and exhaust configuration
• Verify left (port) or right (starboard) side application before ordering — exhaust elbows are typically side-specific

Serial Number & Fitment Notice

Confirm fitment using your Crusader engine serial number and the corresponding parts diagram. Exhaust elbow specifications vary by engine generation, exhaust configuration, and side (port vs. starboard). Do not assume fitment based on visual similarity alone.

When to Replace

• Visible cracks, pitting, or external corrosion on the elbow body
• Water leaks from the elbow or cooling passages
• Exhaust leaks at the riser-to-elbow or elbow-to-hose joint
• Overheating caused by blocked or corroded internal water cooling passages
• Exhaust odor in the engine compartment
• Preventative replacement during exhaust riser or manifold service on high-hour engines

Service Interval

• Inspect annually for cracks, corrosion, and water passage condition
• Replace immediately if cracks, water leaks, or exhaust leaks are found
• Internal cooling passage corrosion is the primary failure mode on saltwater-operated engines and may not be visible externally
• Replace the elbow gasket whenever the elbow is removed

Installation Notes

• Always install a new gasket when replacing the exhaust elbow — do not reuse the old gasket
• Inspect the riser mating surface for corrosion or damage before assembly
• Inspect and replace the exhaust riser and manifold at the same time if they show corrosion or wear — see Crusader / PCM Exhaust Riser R029011 and Crusader Exhaust Manifold R028001
• Torque fasteners to the specification in the Crusader service manual
• After installation, check carefully for exhaust gas and cooling water leaks before returning the engine to service

Technical FAQ

What is the difference between the exhaust elbow and the exhaust riser?
The exhaust riser mounts directly to the exhaust manifold and routes exhaust gases upward. The exhaust elbow connects to the top of the riser and redirects the exhaust flow into the exhaust hose. Both are water-cooled components in the wet exhaust system. On some Crusader configurations, the riser and elbow are combined into a single assembly; on others they are separate components. Confirm which configuration your engine uses in the parts diagram.

Should I replace the gasket when installing a new elbow?
Yes. Always install a new gasket when replacing the exhaust elbow. Reusing an old gasket risks exhaust leaks and cooling system failures after installation.

How do I know if my exhaust elbow needs replacing?
Common signs include water leaks from the elbow body, exhaust leaks at the joints, overheating from blocked cooling passages, and visible external corrosion or cracking. Internal cooling passage corrosion is the primary failure mode on saltwater engines and may not be visible from the outside — inspect passages during annual service.

Parts Desk Insights

Best Use Case: R029016A is the correct OEM replacement for Crusader inboard owners replacing a failed or corroded exhaust elbow. It is particularly well-suited for high-hour saltwater engines where internal cooling passage corrosion is the primary failure mode, and for owners performing a full exhaust system refresh alongside riser and manifold replacement.

Common Customer Issue: The most frequent issue is replacing only the elbow without inspecting or replacing the exhaust riser and manifold at the same time. On a high-hour engine, if the elbow has failed, the riser and manifold are likely in similar condition. Replacing all exhaust system components together during a single service event avoids a repeat job shortly after.
