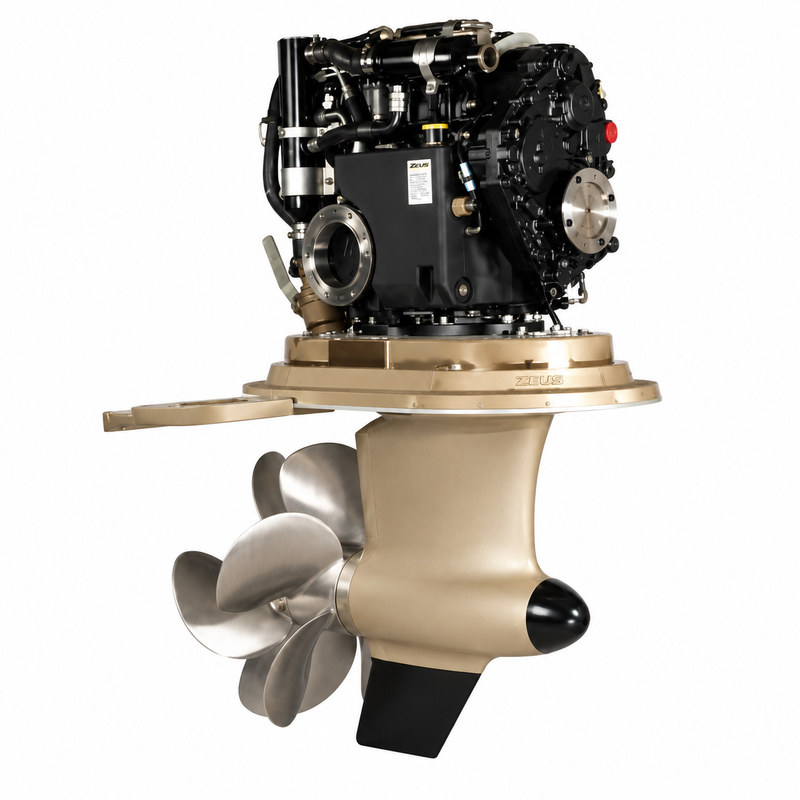

Mercury Zeus Pod Drive System — Starboard — 5-Q4DY54LH
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Mercury Zeus Pod Drive System — Starboard
Configuration Code: 5-Q4DY54LH | Position: Starboard
Brand: Mercury | Type: Integrated Pod Drive Propulsion System
Mercury Zeus starboard pod drive for diesel-powered twin-pod vessel installations. This is the starboard (right-hand) pod and pairs with the port pod 5-P4DY54LH to form a complete twin-Zeus propulsion system. The Zeus system combines steerable underwater gearcases, contra-rotating propellers, electronic controls, and joystick-capable maneuvering.
Important: The identifier 5-Q4DY54LH is a configuration/assembly code, not a conventional service part number. Before ordering, this code must be matched to the pod’s original serial plate, build record, gear ratio, rotation, and propeller configuration. Do not substitute based on the generic “Zeus Pod Drive” description alone.
Compatible Applications
- Mercury Zeus twin-pod diesel propulsion installations — starboard position
- Mercury Zeus 3000 and larger configurations — verify overall gear ratio and propeller series against original build record
- Vessels with matched contra-rotating propeller systems — H-Series, M-Series, or Z-Series depending on engine HP, rated RPM, and target vessel speed
- Pairs with port pod Mercury Zeus Pod Drive System 5-P4DY54LH
Fitment must be verified by complete pod serial number, gear ratio, rotation, pod size, and propeller configuration. Engine horsepower and model year alone are not sufficient.
System Overview
Zeus pod drives use steerable underwater gearcases with contra-rotating propeller sets. Propeller families (H-Series, M-Series, Z-Series) are selected based on engine output and target performance. Zeus systems also integrate with Mercury’s joystick piloting and electronic vessel-control systems. In a twin-pod installation, the port and starboard pods must be matched in size, ratio, and propeller configuration.
Individual Components Also Serviceable
Individual Zeus drivetrain components are also separately serviceable, including seals, shafts, bearings, steering components, propellers, and propeller hardware. If only a specific component needs replacement, identify the individual part number from the Zeus parts diagram for your pod serial number rather than replacing the complete assembly.
When Replacement Is Needed
Complete pod replacement may be required after significant gearcase or housing damage, major internal drivetrain failure, severe impact damage, excessive corrosion, or when rebuilding the existing pod is no longer practical or cost-effective.
Installation Notes
Zeus pod-drive replacement is a major propulsion-system service procedure. Verify the complete pod specification and associated engine installation before removal. Proper installation requires correct mechanical alignment, steering and electronic-system setup, lubricant service, propeller installation, and full commissioning per the applicable Mercury Zeus service documentation.
Related Products
- Mercury Zeus Pod Drive System 5-P4DY54LH (port pod — companion unit)
Parts Desk Insights
In a twin-Zeus installation, the starboard and port pods must be ordered and confirmed as a matched pair. Verify both configuration codes against the vessel’s build record before ordering either pod. The most common issue is customers referencing only the Zeus family name or horsepower without confirming pod size, gear ratio, rotation, and propeller system. Always request the pod serial number from the serial plate before quoting a replacement.
