Garmin GPSMAP® 943xsv Chartplotter & GMR™ 18 HD3 Radar Pack
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

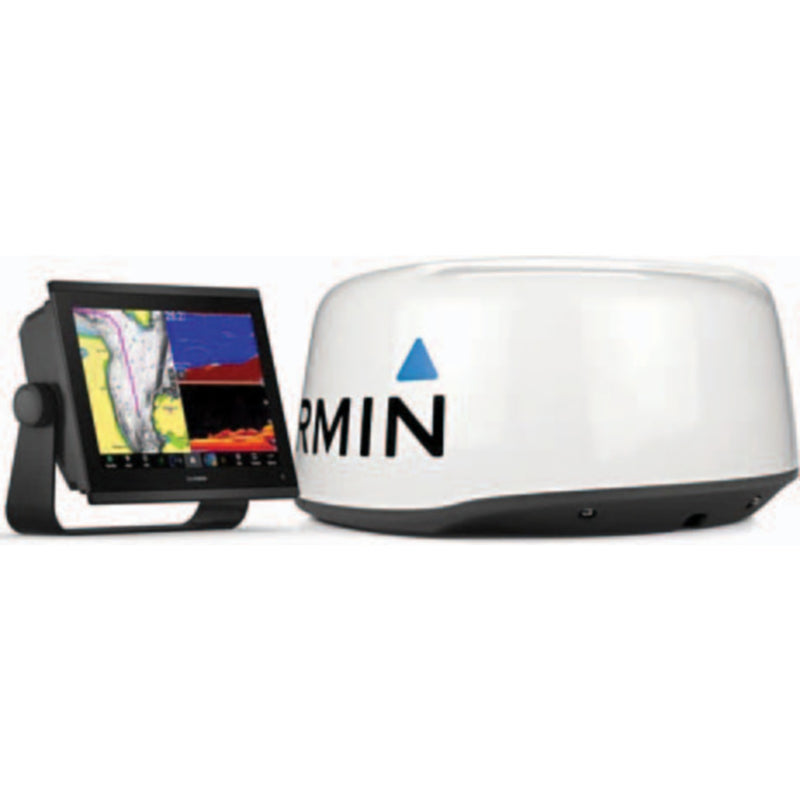

The Garmin GPSMAP® 943xsv & GMR™ 18 HD3 Radar Pack pairs a 9" touchscreen chartplotter/fishfinder with a 4 kW magnetron radar dome in a single matched bundle. It delivers the full Garmin navigation suite — charts, sonar, and radar — in a compact form factor well suited to smaller vessels, tight helm stations, and secondary display positions.
GPSMAP® 943xsv Chartplotter/Fishfinder
- 9" edge-to-edge IPS touchscreen — high-resolution, wide-viewing-angle display in a compact footprint ideal for smaller helms and flush-mount installations
- Garmin Navionics+™ mapping included — integrated coastal and inland charts for North America; optional upgrade to Navionics Vision+™ premium subscription
- Built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonar — detailed side and down imaging of structure and bottom contour
- 1 kW CHIRP traditional sonar — high-resolution fish arch separation at depth
- Panoptix LiveScope™ compatible — supports live forward- and down-scanning sonar (transducer sold separately)
- Garmin SailAssist™ — laylines, race start line guidance, wind rose, polars, set and drift, and tide/current/time slider for sailing-specific navigation
- Garmin Marine Network — share charts, sonar, and radar data across compatible Garmin devices on board
- NMEA 2000® & NMEA 0183 — integrates with onboard instruments, autopilots, and engine displays
- Engine connectivity — compatible with select Yamaha and other supported engine networks
- ActiveCaptain® app — built-in Wi-Fi® pairs with the free mobile app for chart updates, community data, and smart notifications
- OneHelm™ — consolidates compatible third-party devices (e.g., EmpirBus™ digital switching) onto a single screen
GMR™ 18 HD3 Radar Dome (Included)
- 4 kW transmit power, 36-nautical-mile maximum range
- MARPA target tracking — monitors up to 10 moving targets simultaneously
- Dynamic auto gain and sea clutter filter
- Dual-radar support — run a second radar simultaneously when connected to a compatible Garmin MFD
- Quiet dome drive motor
What’s in the Box
- GPSMAP 943xsv unit with preinstalled microSD™ card
- Power cable
- NMEA 2000® T-connector and 2 m drop cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover and trim piece snap covers
- 8-pin transducer to 12-pin sounder adapter cable
- GMR 18 HD3 radome
- Radar mounting hardware kit
- Radar power cable (15 m)
- Radar network cable (15 m)
- Radar installation instructions and mounting template
Related Products
- Garmin GPSMAP® 943xsv 9" Chartplotter/Fishfinder — standalone chartplotter without radar
- Garmin GPSMAP® 1243xsv Chartplotter & GMR™ 18 HD3 Radar Pack — 12" display upgrade version of this bundle
- Garmin GMR™ 18 HD3 Radar Dome — standalone radar dome included in this bundle
- Garmin GMR™ xHD3 18" Radar Dome — higher-performance radar upgrade with 48 NM range and Scan Averaging
Parts Desk Insights
Best use case: The 943xsv Radar Pack is the right choice for boaters in the 20–32 ft range who want a complete navigation solution — charts, sonar, and radar — without the helm real estate required by a 12" display. The 9" IPS screen fits standard flush-mount cutouts on most center consoles, walkarounds, and smaller cruisers, and the included GMR 18 HD3 covers radar needs for coastal cruising and overnight passages. It’s also a strong option as a secondary station on larger vessels where a full MFD is already installed at the primary helm. Boaters who have the helm space and want a larger display should step up to the 1243xsv Radar Pack. Those who already own a compatible Garmin chartplotter and only need the radar should consider the GMR™ 18 HD3 Radar Dome on its own. Anglers wanting live sonar will need to add a Panoptix LiveScope™ transducer separately.
