Garmin 010-02613-00 BlueNet 30 Gateway
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

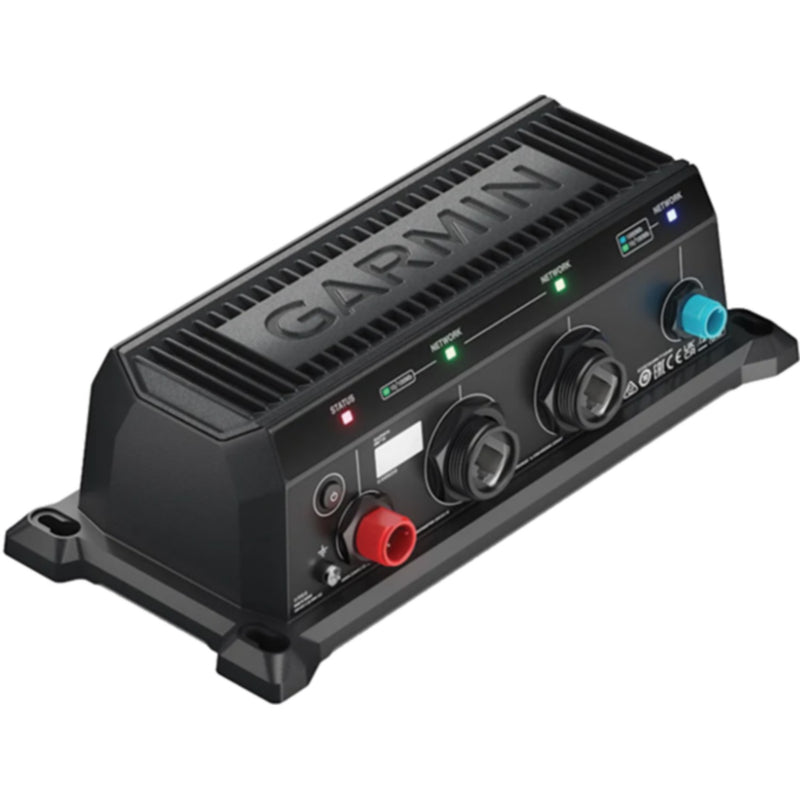

Garmin 010-02613-00 BlueNet™ 30 Gateway
Part Number: 010-02613-00 (distributor SKU: 322-0100261300)
Brand: Garmin
Type: BlueNet™ to legacy Garmin Marine Network gateway/bridge
Weight: 1,306 g (with packaging)
Product Overview
The Garmin BlueNet™ 30 Gateway is a network bridge that allows Garmin BlueNet™-compatible devices to communicate with existing legacy Garmin Marine Network equipment. One gateway is all that is needed to connect the two networks. It is specifically required when integrating newer Garmin GPSMAP 9000-series chartplotters into an installation that includes older compatible Garmin chartplotters, sonar modules, radar systems, Fusion audio devices, or other legacy Garmin Marine Network products.
- Bridges Garmin BlueNet™ network to legacy Garmin Marine Network
- Required for GPSMAP 9000-series displays to communicate with legacy Garmin marine equipment
- One gateway per installation — only one unit is needed to connect the two networks
- Plug-and-play integration with minimal configuration
- Water-resistant marine connectors
- Includes 2m BlueNet network cable, power cable, and mounting hardware
- Weight: 1,306 g (with packaging)
Package Contents
- 1 × Garmin BlueNet™ 30 Gateway
- 1 × 2m Garmin BlueNet network cable
- 1 × Power cable
- Mounting hardware
- Documentation
Compatible Applications
- Integrating Garmin GPSMAP 9000-series BlueNet chartplotters into existing Garmin Marine Network installations
- Retaining legacy Garmin radar, sonar modules, and chartplotters when upgrading to a BlueNet-compatible display
- Connecting Fusion audio devices and other legacy Garmin Marine Network equipment to a new BlueNet system
- Any installation where a Garmin BlueNet network must share data with legacy Garmin Marine Network devices
Important: The BlueNet 30 Gateway is specifically for Garmin BlueNet™-to-legacy Garmin Marine Network integration. It is not a generic Ethernet adaptor or NMEA 2000 bridge. Confirm that all connected Garmin equipment uses the appropriate BlueNet or legacy Garmin Marine Network interfaces before ordering.
When to Use This Gateway
Use the BlueNet 30 Gateway when upgrading a vessel with a newer Garmin BlueNet display (such as a GPSMAP 9000-series chartplotter) while keeping existing compatible legacy Garmin Marine Network equipment. The gateway allows the existing Garmin electronics ecosystem to remain fully integrated rather than requiring every legacy network device to be replaced.
Part Number Reference
- Garmin: 010-02613-00
- Compact format: 0100261300
- Distributor SKU: 322-0100261300
Installation Notes
- Mount the gateway in a protected, ventilated electronics location away from direct water exposure
- Connect the supplied 2m BlueNet cable from the gateway to the BlueNet port on the compatible Garmin display
- Connect the legacy Garmin Marine Network cabling to the gateway’s legacy network port
- Connect the power cable to a fused 12V DC source
- Secure all connectors and verify that all connected devices are detected on both networks after powering up
Technical FAQ
How many BlueNet 30 Gateways are needed per installation? Only one gateway is required to bridge an entire BlueNet network to an existing legacy Garmin Marine Network, regardless of how many devices are on either network.
What Garmin displays require the BlueNet 30 Gateway? Garmin GPSMAP 9000-series chartplotters are the primary application. These displays use the BlueNet™ network format and require the gateway to communicate with legacy Garmin Marine Network equipment.
Is this compatible with NMEA 2000? The BlueNet 30 Gateway bridges BlueNet to legacy Garmin Marine Network specifically. It is not a general NMEA 2000 adaptor. Consult Garmin’s network compatibility documentation for your specific installation.
Does the gateway require configuration? The BlueNet 30 Gateway is designed for minimal configuration. After connecting both network sides and applying power, connected devices should be detected automatically.
Related Products
- Garmin GPSMAP 8616xsv 16" Chartplotter/Fishfinder
- Garmin GPSMAP 1643xsv 16" Chartplotter/Fishfinder
- Garmin SteadyCast 010-11417-10 Heading Sensor – NMEA 2000
Parts Desk Insights
The BlueNet 30 Gateway is a specialist item — it’s only relevant when a customer is adding a BlueNet-compatible Garmin display (primarily GPSMAP 9000-series) to a vessel that already has legacy Garmin Marine Network equipment they want to keep. The most common customer confusion is assuming this is a general Ethernet or NMEA 2000 adaptor — it is not. Always confirm the customer has both a BlueNet display and legacy Garmin Marine Network devices before recommending this gateway. Also confirm only one unit is needed per installation regardless of network size, which is a frequent question.
