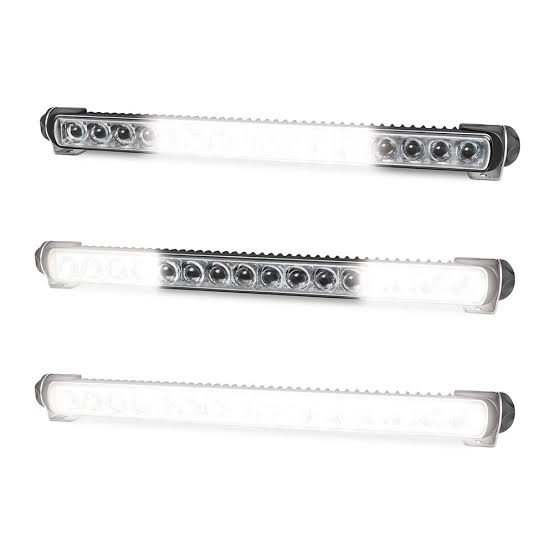

Hella Seahawk 470 LED Light Bar — Spot Lens, 30°×30° Beam, 20.86"
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Hella Seahawk 470 — Spot Lens LED Light Bar, Standard Connector
The Hella Seahawk 470 Spot is a high-output marine LED light bar with a 30°×30° beam pattern — wide enough to illuminate a broad field ahead, yet focused enough to reach channel markers, buoys, and hazards at distance. It strikes a practical balance between the tight throw of a pure spot and the close-range coverage of a spread beam, making it one of the most versatile single-lens options in the Seahawk 470 lineup.
The corrosion-proof housing and Grilamid® UV-resistant lens are built for long-term saltwater exposure. The polished 316 stainless steel bracket supports both upright and pendant mounting, and the adjustable system makes installation straightforward across a wide range of mounting surfaces. Pre-wired with 2.5m of cable and standard bare-wire termination — no proprietary connector required.
Specifications
- Model: Seahawk 470
- Lens type: Spot
- Beam angle: 30° × 30°
- Connector: Standard (bare wire, 2.5m cable included)
- Dimensions: 20.86" L × 1.73" H
- Power draw: 36W (high beam), 18W (Combi mode)
- Bracket: Polished 316 stainless steel
- Lens material: Grilamid® (UV resistant)
- Housing: Corrosion-proof
- Waterproof rating: IP67
- Mount options: Upright or pendant
- Warranty: 5 years
- SKU: 265-958130641
Best Use Case
The 30°×30° Spot beam is particularly well-suited to slower-speed navigation — threading channels, locating markers, or scanning anchorages — where you need both reach and enough width to see what's around a target. It's a strong all-round choice for bow or helm mounting when a single light needs to handle varied conditions. If your vessel uses a Deutsch wiring harness, see the Deutsch connector variant. If you need a wider field of view for close-range deck or cockpit illumination, the Spread or Wide Spread Diffused models are better fits.
Also Consider
- Hella Seahawk 470 — Spot Lens, Deutsch Connector — same beam, Deutsch wiring harness compatible
- Hella Seahawk 470 — Spot Lens, alternate mount
- Hella Seahawk 470 — Combi (Spread & Spot) — dual-beam flexibility in one bar
- Hella Seahawk 470 — Wide Spread Diffused — broad area deck illumination
- Hella Seahawk 470 — Spread Lens
- Browse all Marine Lighting
Parts Desk Insights
SKU 265-958130641 is the standard bare-wire Spot variant; the Deutsch connector Spot is SKU 265-958130701. The 30°×30° beam angle is a meaningful spec — it's wider than a true long-range spot (which would be 10°–15°) but narrower than a spread or diffused lens, making it the most versatile single-lens option for customers who want one bar to do most jobs. This is not a navigation light in the regulatory sense and should not be sold or described as a replacement for COLREGS-compliant nav lights. The Seahawk 470 platform runs at higher output than the Seahawk 350 — recommend the 470 for offshore or longer-range applications. 5-year warranty is a strong differentiator vs. competing brands.
