Jabsco 17935-0001-P Neoprene Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Jabsco Profile Q Neoprene Impeller Kit – 17935-0001-P / 6-179350001P
Product Description
The Jabsco 17935-0001-P is a large 12-blade neoprene flexible impeller kit for heavy-duty marine engine-cooling, water-transfer, bilge and general-purpose bronze pumps. It features a brass spline-drive hub and measures approximately 3-3/4 inches in diameter by 2-1/2 inches wide.
Key Features
- Jabsco part number: 17935-0001-P
- Land 'N' Sea SKU: 6-179350001P
- Impeller profile: Q
- Twelve flexible blades
- Neoprene construction
- Brass hub insert
- Spline-drive connection
- Outside diameter: 3-3/4 in / approximately 95 mm
- Width: 2-1/2 in / approximately 63.5 mm
- Shaft diameter: 1 in / approximately 25 mm

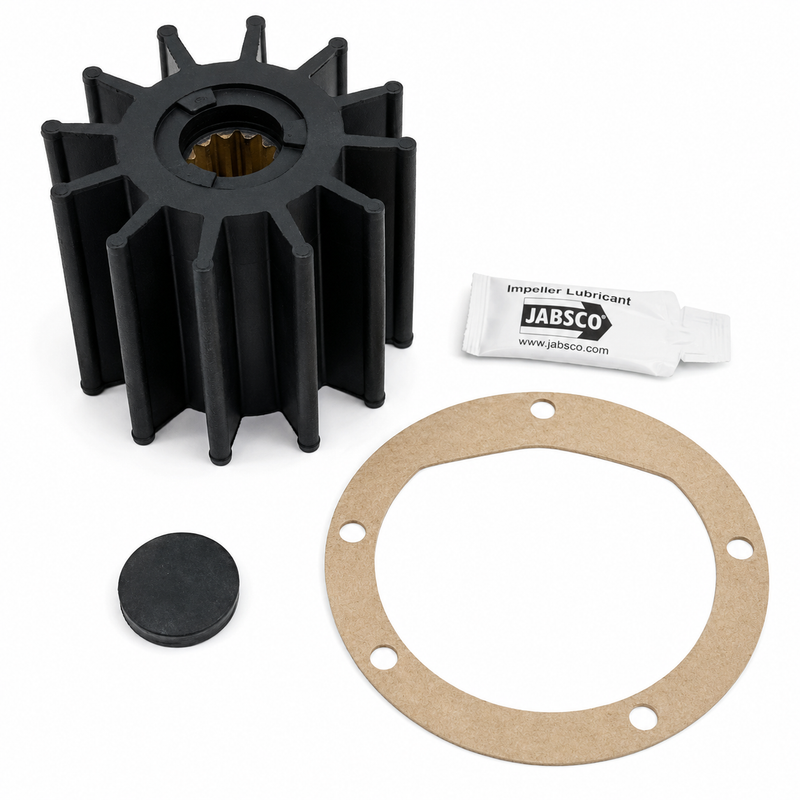

- Kit includes the impeller, gasket, spline seal and installation lubricant
- UPC / GTIN: 671880588164
Pump Compatibility
Documented Jabsco pump applications include:
- 3570-series
- 6400-series
- 6590-series
- 7420-series
- 10880-series
- 10980-series
- 21680-series
- 29770-series
- 52200-series
- 52220-series
The complete pump model should be checked because similar large-capacity pumps may use different impeller widths, compounds or hub configurations.
Engine Compatibility
Supported cross-reference applications include compatible raw-water pumps used on selected:
- Caterpillar marine engines
- Cummins NH250M, NT855M, V504M and V555-series marine engines
- Detroit Diesel marine engines
- Volvo Penta marine engines
- Perkins marine engines
- Onan generators
- Northern Lights generators
- Johnson Pump installations
Compatibility is determined by the installed pump and original impeller reference rather than engine manufacturer alone.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Twelve blades
- 3-3/4-inch outside diameter
- 2-1/2-inch width
- 1-inch spline-drive shaft
- Brass hub insert
- Profile Q configuration
- Neoprene construction
- Jabsco 17935-0001-P specification
Do not confuse this impeller with Jabsco 17936-0001-P. Both have a 3-3/4-inch diameter and 1-inch spline hub, but the 17935 is 2-1/2 inches wide, while the 17936 is 3-1/2 inches wide.
When This Part Needs Replacement
Replace the impeller when:
- Raw-water or exhaust-water flow decreases
- Engine temperature begins rising
- The pump becomes difficult to prime
- Blades become cracked, hardened or permanently curved
- Blade tips are torn or missing
- The brass spline hub becomes loose or damaged
- The pump has operated without an adequate water supply
- Scheduled annual cooling-system service is due
Jabsco recommends preventive replacement at least annually, or sooner according to engine duty and operating conditions.
Installation Notes
- Stop the engine and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump end cover and old sealing components.
- Use an appropriate impeller-removal tool or suitable pliers to grip the hub.
- Do not pry against the pump housing with a screwdriver.
- Retrieve missing blade fragments from hoses, coolers and heat exchangers.
- Inspect the pump bore, cam, shaft, splines and cover plate.
- Lubricate the new impeller before installation.
- Carefully align the brass spline hub with the pump shaft.
- Install the supplied gasket and spline seal.
- Reopen the seacock and confirm strong water flow immediately after startup.
Lubricating the impeller makes installation easier and protects the blades during initial priming.
Alternate / Cross-Reference Part Numbers
- Jabsco: 17935-0001-P
- Earlier Jabsco number: 17935-0001
- Land 'N' Sea SKU: 6-179350001P
- Compact format: 179350001P
- Earlier related Jabsco reference: 836-0001
- Johnson Pump:
- 09-819B
- 09-819B00
- Caterpillar:
- 5L6042
- 5N9360
- 1W9046
- Detroit Diesel:
- 5196168
- 5196628
- 8924838
- Volvo Penta:
- 875660
- 875736-1
- 825942
- 807904
- 877066
- Perkins: 7054
- Onan: 500135
- Ancor: J050035
- Nikkiso: F25KBC
- Doosan / Daewoo: 60.06804-003
- UPC / GTIN: 671880588164
See Also
- Jabsco 17936-0001-P Neoprene Impeller Kit – same diameter, 3-1/2" wide (wider sibling)
- Sierra 3306 Johnson Pump / Jabsco Impeller Kit – aftermarket alternative
Parts Desk Insight
The 17935 and 17936 are easy to confuse because they share the same diameter, blade count and 1-inch spline hub. The quickest identification check is the impeller width: this 17935 version is 2-1/2 inches wide.
