Jabsco Profile I Neoprene Impeller Kit – 18673-0001-P / 6-186730001P
Product Description
The Jabsco 18673-0001-P is a 10-blade neoprene flexible impeller kit for compatible marine engine-cooling, bilge, transfer and general-purpose pumps. It features a brass pin-drive hub and is sized for Jabsco 2620-series self-priming pumps and other pump assemblies using the same Profile I impeller specification.
Key Features
- Jabsco part number: 18673-0001-P
- Land 'N' Sea SKU: 6-186730001P
- Impeller profile: I
- Ten flexible blades
- Neoprene construction
- Brass hub insert
- Slotted-shaft or through-hole pin drive
- Outside diameter: 2 in / approximately 51 mm
- Width: 7/8 in / approximately 22 mm
- Shaft diameter: 1/2 in / approximately 12.7 mm
- UPC / GTIN: 671880575300

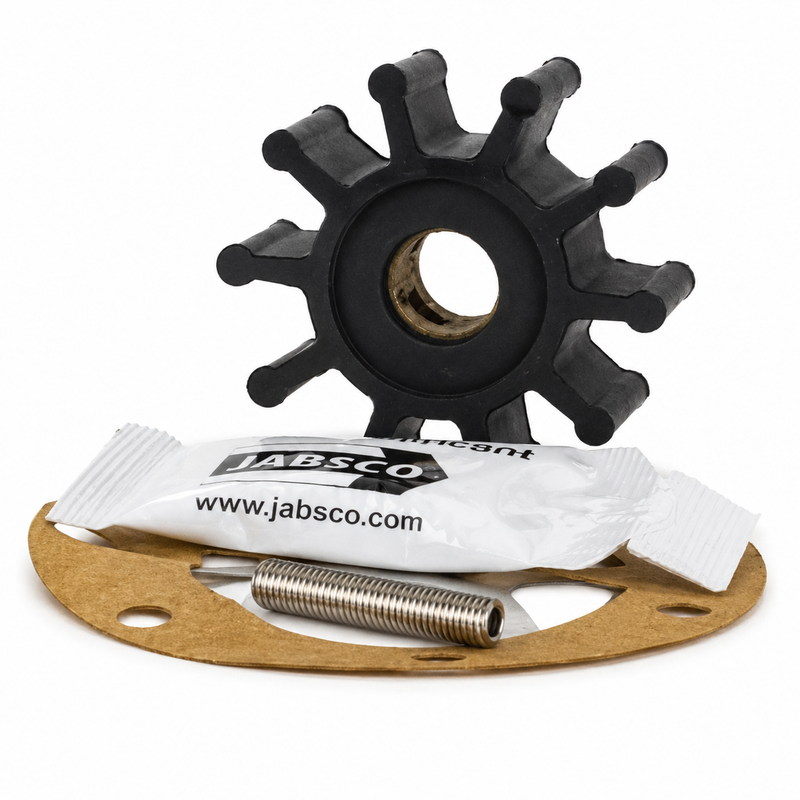

- Kit includes the impeller, drive screw, cover gasket and installation lubricant.
Pump and Engine Compatibility
Documented pump applications include:
- Jabsco 2620-1001
- Jabsco 2620-1101
- Compatible self-priming bronze pumps requiring a 2 × 7/8-inch Profile I neoprene impeller with a 1/2-inch pin-drive hub.
Supported cross-reference applications include compatible cooling pumps used on:
- Perkins marine engines
- Westerbeke engines and generators
- Northern Lights generators
- Volvo Penta engines
- Kohler generators
- Chris-Craft marine engines
- Selected Yanmar applications
Compatibility is determined by the installed pump and original impeller number rather than engine brand alone.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Ten blades
- 2-inch outside diameter
- 7/8-inch width
- 1/2-inch shaft
- Pin-drive brass hub
- Profile I configuration
- Neoprene construction
This part should not be selected by diameter alone. Several Jabsco impellers share a 2-inch diameter but differ in blade count, shaft diameter, hub design and material.
When This Part Needs Replacement
Replace the impeller when:
- Raw-water or exhaust-water flow becomes weak
- Engine or generator temperature begins rising
- The pump struggles to prime
- Vanes become cracked, hardened or permanently curved
- Blade tips are damaged or missing
- The hub or drive pin shows wear
- The pump has operated dry
- Annual preventive cooling-system service is due
Flexible impellers should generally be replaced at least annually, or sooner when engine duty and operating conditions are severe.
Installation Notes
- Stop the engine or generator and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump end cover and old gasket.
- Pull the impeller using a proper removal tool or suitable pliers gripping the hub.
- Do not pry against the pump face with a screwdriver.
- Retrieve missing vane fragments from hoses, heat exchangers and oil coolers.
- Inspect the pump bore, cam, cover plate, shaft and drive pin.
- Lubricate the new impeller before installation.
- Align the hub slot with the shaft pin.
- Install the supplied cover gasket and reinstall the end cover.
- Reopen the seacock and verify strong water flow immediately after startup.
Lubricating the new impeller makes installation easier and protects the blades during initial priming.
Alternate / Cross-Reference Part Numbers
- Jabsco: 18673-0001-P
- Earlier Jabsco reference: 18673-0001
- Compact format: 186730001P
- Land 'N' Sea SKU: 6-186730001P
- Legacy Jabsco reference: 00673-0001
- Perkins: 24880194
- Westerbeke: 21218
- Volvo Penta:
- 804696
- 875808
- 897055
- 3593659
- Johnson Pump:
- 09-1026B
- 09-1026B-1
- 09-1026B-9
- Sierra:
- 18-3036
- 18-3080
- Yanmar: 128990-42200
- Northern Lights: 25-12009
- CEF:
- 500116
- 500216
- GLM: 89520
- Mallory Marine: 9-45702
- UPC / GTIN: 671880575300
Compatible & Related Products
- Jabsco 6-186730003P Replacement Nitrile Impeller – Profile G – Same 2 × 7/8-inch pin-drive dimensions in nitrile for oily bilge and fuel-transfer applications
Parts Desk Insight
This is the 10-blade Profile I version of the 2 × 7/8-inch Jabsco pin-drive impeller. Similar-looking impellers are available with six blades or different hub dimensions, so confirm the full pump number, blade count and 1/2-inch shaft size before ordering.
