Jabsco 6-189480001P Replacement Neoprene Impeller

Jabsco Profile X Neoprene Impeller Kit – 18948-0001-P / 6-189480001P

Product Description

The Jabsco 18948-0001-P is a 12-blade neoprene flexible impeller kit for compatible marine raw-water cooling, bilge, transfer and general-purpose pumps. It features a brass insert with a keyed shaft drive and directly cross-references the Sherwood 10615K impeller used in numerous Sherwood G-series and related raw-water pumps.

Key Features

• Jabsco part number: 18948-0001-P
• Land 'N' Sea SKU: 6-189480001P
• Impeller profile: X
• Twelve flexible blades
• Neoprene construction
• Brass hub insert
• Keyed shaft drive
• Outside diameter: 2-9/16 in / 65 mm
• Width: 1-5/8 in / 41 mm
• Shaft diameter: 5/8 in / 15.9 mm
• Keyway: 3/16 in
• UPC / GTIN: 671880575102

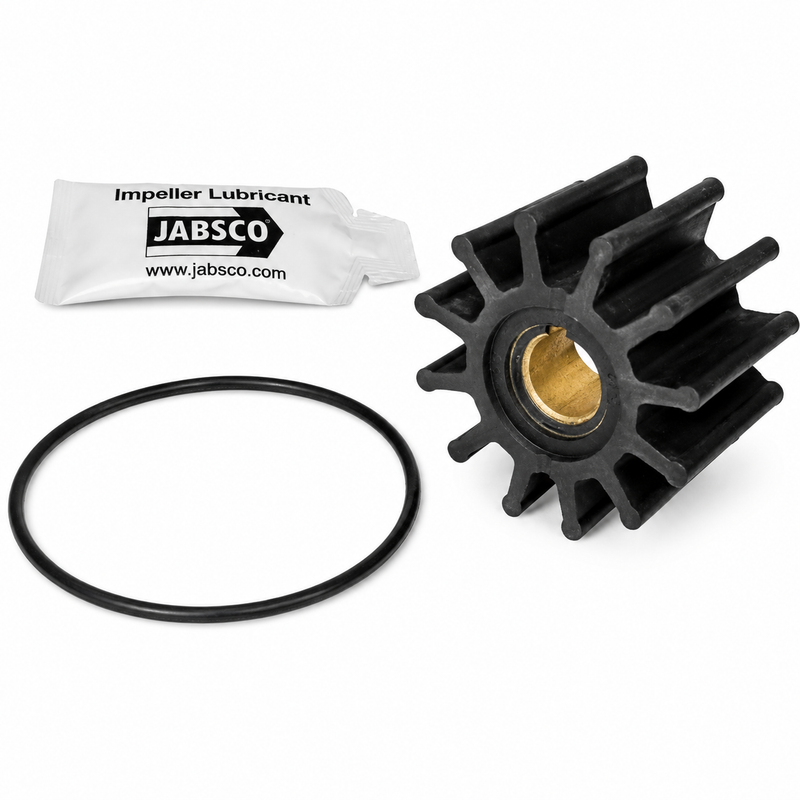

• Kit includes the impeller, sealing O-ring and installation lubricant.

Pump Compatibility

The 18948-0001-P is specified for Jabsco 42730-0000 pumps and serves as a replacement for the Sherwood 10615K impeller kit. Confirmed Sherwood pump families using the corresponding 10615K specification include:

• Sherwood M71
• Sherwood G3
• Sherwood G4
• Sherwood G45-1
• Sherwood P110
• Additional Sherwood G-series and related raw-water pumps requiring a 65 × 41 mm keyed impeller.

Engine Compatibility

Supported cross-reference applications include compatible raw-water pumps used on:

• Crusader marine engines
• Pleasurecraft Marine / PCM engines
• Volvo Penta engines
• Perkins marine engines
• Cummins marine engines
• Onan generators
• Westerbeke engines and generators
• Selected Yamaha marine applications
• Chris-Craft and Chrysler marine engines

Compatibility is determined by the installed pump and impeller specification, not by engine brand alone.

Fitment Notice

Before ordering, confirm that the original impeller requires:

• Twelve blades
• 2-9/16-inch outside diameter
• 1-5/8-inch width
• 5/8-inch shaft
• 3/16-inch keyway
• Brass keyed hub
• Neoprene construction
• Sherwood 10615K or Jabsco 18948-0001-P specification

Do not confuse this impeller with Jabsco 18958-0001-P. The 18948 is approximately 65 × 41 mm, while the 18958 is a substantially larger impeller used as a replacement for Sherwood 17000K.

When This Part Needs Replacement

Replace the impeller when:

• Raw-water or exhaust-water flow decreases
• Engine temperature begins rising
• The pump struggles to prime
• Vanes are cracked, hardened or permanently curved
• Blade tips are torn or missing
• The hub or keyway shows wear
• The pump has operated dry
• Annual preventive cooling-system service is due

Preventive annual replacement is recommended for engine-cooling applications, with earlier replacement where operating hours or service conditions are severe.

Installation Notes

• Stop the engine and isolate the starting circuit.
• Close the raw-water intake seacock.
• Remove the pump end cover and old sealing component.
• Pull the impeller using a proper impeller-removal tool or suitable pliers gripping the hub.
• Do not pry against the pump housing with a screwdriver.
• Retrieve any missing vane fragments from hoses, coolers and heat exchangers.
• Inspect the pump bore, cam, cover plate, shaft and drive key.
• Lubricate the replacement impeller before installation.
• Align the hub keyway with the pump-shaft key.
• Fit the supplied sealing component and reinstall the cover.
• Reopen the seacock and confirm strong water flow immediately after startup.

Avoid operating a neoprene flexible-impeller pump without water.

Alternate / Cross-Reference Part Numbers

• Jabsco: 18948-0001-P
• Earlier Jabsco reference: 18948-0001
• Land 'N' Sea SKU: 6-189480001P
• Compact format: 189480001P
• Sherwood: 10615K
• Sierra: 18-3047
• Sierra related reference: 18-3061
• Johnson Pump: 09-702B-1
• Crusader: 20300, 20310, R061017
• PCM: R061017, RP061017
• Volvo Penta: 835874
• Perkins: NA900012
• Oberdorfer: 8922
• Yanmar: 6TA-12457-00
• Yanmar related reference: 128170-02070
• Cummins: 3908220
• Onan: 132-0292, 132-0348, 132-0349
• Westerbeke: 13930, 16432
• UPC / GTIN: 671880575102

Compatible & Related Products

• Sherwood Impeller Kit 10615K / 762-10615K – OEM Sherwood equivalent for the same pump families
• Johnson Pump 09-702B-1 Impeller – Cross-reference replacement for Sherwood 10615K
• PCM Impeller Kit RP061017 – Raw water pump service kit for Crusader / PCM V-belt driven pumps
• Jabsco 50461-1001-P PCM / Crusader Raw-Water Pump Impeller Kit – Jabsco kit for PCM/Crusader applications

Parts Desk Insight

This is the common 65 mm Sherwood 10615K-size impeller, identified by its 12 blades, 41 mm width and 5/8-inch keyed brass hub. Because this specification appears across many engine brands, matching the installed raw-water pump or original impeller number is more reliable than selecting it from the engine model alone.
