Leland V9000085202Z Inflatable PFD Rearming Kit for V90000 Series, Automatic, 33-Gram

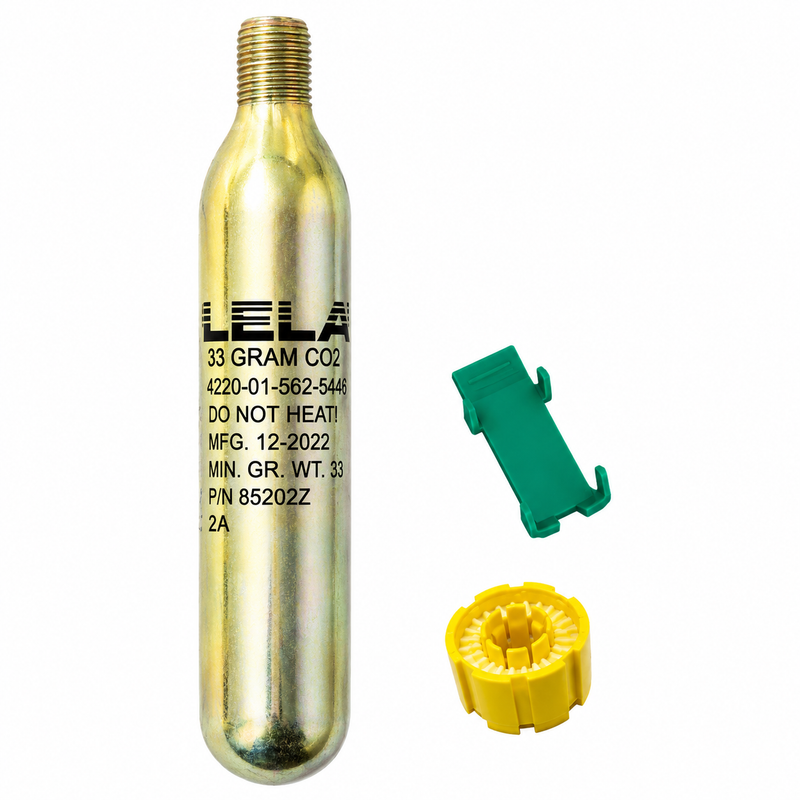

The Leland V90000-85202Z automatic inflatable PFD rearming kit restores compatible V90000-series auto/manual inflators after deployment. The kit includes a 33-gram CO₂ cylinder with a 1/2-inch threaded connection, a yellow water-sensing bobbin, a green status indicator clip and step-by-step rearming instructions. It is intended only for inflatable life jackets specifically marked for the V90000-85202Z inflator system and 33-gram cylinder.

Key Features

• Leland part number: V90000-85202Z
• Common unhyphenated reference: V9000085202Z
• Automatic rearming kit for compatible V90000-series inflators
• Includes one 33-gram CO₂ cylinder
• Cylinder connection: 1/2-inch threaded
• Includes yellow bobbin/water-sensing element
• Includes green indicator clip and rearming instructions
• For auto/manual pull inflatable PFD systems
• UL Marine classified
• Single-use cylinder must be replaced after inflation

Product Compatibility

This kit is designed for inflatable PFDs equipped with a Leland or Halkey-Roberts V90000-series automatic/manual pull inflator that specifically requires a 33-gram CO₂ cylinder with a 1/2-inch threaded neck. Compatible PFDs may be sold under several marine safety brands, so the inflator and rearming-kit numbers must be checked directly rather than matching by vest appearance or brand alone.

Fitment Notice

Before ordering, open the PFD and confirm that the inflator or sewn-in rearming label specifies V90000-85202Z, a 33-gram cylinder and a 1/2-inch threaded connection. Do not substitute a bayonet-style cylinder, a different gas capacity or a kit intended for the V85000, V86000 or V95000 inflator series. Using the wrong rearming components can prevent proper inflation.

When This Kit Needs Replacement

• Replace the complete rearming components after the PFD has inflated.
• Replace the cylinder if it has been punctured, discharged, corroded or damaged.
• Replace the water-sensing bobbin according to the PFD manufacturer’s service schedule.
• Replace the bobbin if it has been exposed to moisture, swollen or deteriorated.
• Replace missing or damaged status indicator components.
• Install a fresh kit before returning a deployed PFD to service.

Installation Notes

• Completely deflate and dry the PFD before beginning the rearming procedure.
• Remove the used cylinder, spent bobbin and damaged indicator components.
• Install the new bobbin and indicator clip exactly as shown in the PFD owner’s manual.
• Thread the new cylinder into the inflator by hand without cross-threading.
• Confirm that all status indicators show the armed or ready condition before repacking the bladder.
• Inspect the inflatable bladder, oral inflation tube, pull handle and inflator body while the vest is open.
• Follow the PFD manufacturer’s folding and repacking instructions.

Alternate/Superseded Part Numbers

• Current reference: V90000-85202Z
• Unhyphenated reference: V9000085202Z
• Cylinder marking/reference: 85202Z
• UPC: 723965330059

Parts Desk Insight

The cylinder weight alone is not enough to identify the correct kit. Check the inflator series, 33-gram capacity and 1/2-inch threaded connection together — similar-looking rearming kits may use a different cylinder neck or activation system and will not safely interchange. For the manual version of this kit or other Leland rearming kits, see below.
