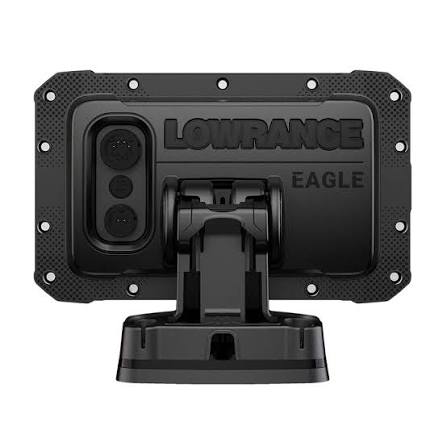

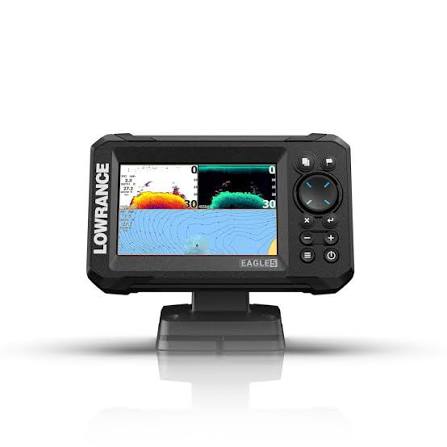

Lowrance Eagle 5 – 5" Fish Finder with SplitShot HD & C-MAP DISCOVER Charts
The Eagle 5 is the most compact unit in the Eagle series — a 5-inch IPS display paired with a SplitShot HD transducer and detailed C-MAP® DISCOVER™ charting for the U.S. and Canada, all in the lightest, most portable Eagle footprint available. The IPS screen is viewable from any angle, even through polarized sunglasses in direct sunlight, and autotuning sonar means you’re fishing within minutes of powering on.
If you want a larger display with the same SplitShot HD transducer, see the Eagle 7 with SplitShot HD (00016227001). For SideScan coverage in addition to CHIRP and DownScan, see the Eagle 7 with TripleShot HD (00016228001).
SplitShot HD Sonar
The included SplitShot HD transducer delivers two sonar views in one unit:
- CHIRP sonar — traditional 2D sonar with improved target separation and depth performance; autotuning sets optimal sensitivity automatically
- DownScan Imaging™ — detailed picture of what’s directly below the boat, with photographic-quality bottom and structure detail
Note: SplitShot HD does not include SideScan coverage. For side-to-side sonar, see the Eagle 7 TripleShot HD linked above.
FishReveal™ Technology
FishReveal™ overlays CHIRP fish arches directly onto the DownScan Imaging view, making it significantly easier to distinguish fish from weeds, brush, and other cover. Instead of interpreting two separate sonar screens, you see fish targets highlighted within the structure image — a practical advantage when fishing docks, laydowns, and weed edges.
C-MAP® DISCOVER™ US/CA Charts
Detailed C-MAP DISCOVER charts for the U.S. and Canada are included, featuring:
- Full-featured vector charts with integrated Genesis® Social Map data
- Custom depth shading and unique fishing points of interest
- High-resolution bathymetric 1-foot contours on 19,000+ U.S. lakes and 9,400+ Canadian lakes
- Genesis® Live: record real-time depth data and build your own custom maps on the water
Display & Design
- 5" IPS screen — wide viewing angles, visible in direct sunlight with polarized sunglasses
- Color palettes to adapt the display for changing light and water conditions
- Twist-lock connector system for fast, reliable transducer installation and removal
- SD card slot for software updates, Genesis Live recording, and charting add-ons
- Rugged design built for freshwater and saltwater fishing environments
Parts Desk Insights
Best use case: The Eagle 5 is the right choice for kayak anglers, ice fishing setups, and ultra-portable applications where screen size is less important than weight, footprint, and ease of mounting. It’s also a strong entry-level option for anglers new to fish finders who want a capable, straightforward unit without a steep learning curve or a large upfront investment. The twist-lock transducer makes it easy to move between boats or remove the unit for storage.
Screen size consideration: The 5" display is the smallest in the Eagle series. If your mounting space allows it, the Eagle 7 SplitShot HD adds two inches of screen real estate with the same transducer and feature set — worth considering if you plan to use chart views regularly or fish in conditions where reading a small screen is difficult.
SplitShot vs. TripleShot: SplitShot HD covers CHIRP and DownScan — the two most commonly used sonar views for vertical and structure fishing. If you also want to scan water laterally to locate structure and baitfish quickly, the Eagle 7 TripleShot HD adds SideScan to the package.
Minn Kota trolling motor users: If your trolling motor uses a Lowrance/Eagle network connection, see the Minn Kota MKR-US2-10 Lowrance/Eagle Adapter Cable (1852060) for compatible network integration.
