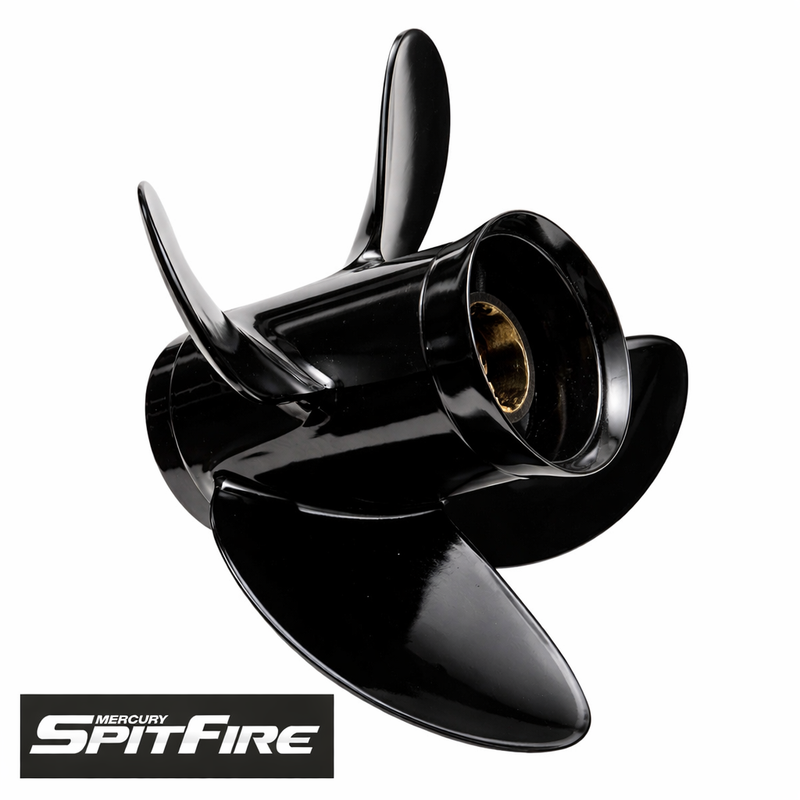

Mercury Spitfire 8M0084497 – 4-Blade Aluminum Propeller | 14 x 23 RH
Part Number: 8M0084497
Mercury Reference: 48-8M0084497
Brand: Mercury Marine
Official Product Type: 4-Blade Aluminum Propeller
Series: Spitfire
Diameter: 14"
Pitch: 23
Rotation: Right-Hand (RH)
Blade Count: 4
Material: Mercalloy aluminum alloy
Hub System: Flo-Torq compatible (hub kit required, sold separately)
About This Propeller
The Mercury Spitfire is a 4-blade aluminum performance propeller built for boaters who want faster hole-shot acceleration and better grip without giving up top-end speed. The Spitfire’s high-rake blade geometry delivers up to 16–25% faster acceleration out of the hole compared to a comparable 3-blade prop, while the fourth blade provides stronger bite in turns, rough water, and at mid-range speeds. It’s manufactured from Mercury’s Mercalloy aluminum alloy — a marine-specific formulation engineered for impact resistance and durability in the marine environment.
The Spitfire is a popular upgrade from the Mercury Black Max 14 x 23 3-blade prop for boaters who want improved acceleration and handling without changing pitch.
Compatible Applications
Fitment depends on engine horsepower, gearcase type, prop shaft spline count, and hub kit configuration. Always confirm using your engine model and serial number before ordering. A Flo-Torq hub kit is required and sold separately.
- Mercury 90–115 HP Command Thrust FourStroke outboards
- Mercury 135–300 HP Two-Stroke outboards
- Mercury 135–300 HP FourStroke outboards
- Mercury OptiMax outboards (applicable HP range)
- Mercury Verado outboards (applicable HP range)
- Mariner 90–115 HP Command Thrust outboards
- Mariner 135–300 HP two-stroke and four-stroke outboards
- MerCruiser Alpha One sterndrive (15-tooth spline, Flo-Torq hub)
- MerCruiser Bravo One sterndrive (15-tooth spline, Flo-Torq hub)
Hub Kit Requirement
The Spitfire propeller requires a Flo-Torq hub kit for installation. The correct hub kit depends on your engine model and gearcase. Common options:
Confirm the correct hub kit for your engine using the Mercury propeller application guide or parts catalog before ordering.
Propeller Selection & Pitch Note
Pitch selection affects engine RPM at wide-open throttle (WOT). The goal is to reach the engine manufacturer’s recommended WOT RPM range with your typical load. A 23-pitch prop is suited for higher-horsepower applications where the engine can turn the additional load. If your engine is currently over-revving with a lower-pitch prop, stepping up to 23 pitch may bring RPM into the correct range. If you are under-revving, a lower pitch may be needed.
Dimensions
- Diameter: 14 inches
- Pitch: 23
- Rotation: Right-Hand (standard)
- Blades: 4
Part Number Reference
- Current Part Number: 8M0084497
- Mercury Reference: 48-8M0084497
Related Products
- Mercury Black Max 14 x 23 – 3-Blade Aluminum Propeller (832834A45)
- Mercury Flo-Torq II Hub Kit 835257K1
- Mercury Flo-Torq II Hub Kit 835257K6
- Mercury Propeller Nut Kit 8M0056235
Parts Desk Insights
Best Use Case: The Spitfire 14 x 23 is an excellent choice for boaters upgrading from a 3-blade prop who want noticeably better hole-shot performance and mid-range grip — particularly for heavier boats, tow sports (wakeboarding, waterskiing), or any application where getting on plane quickly matters. It’s also a strong option for twin-engine setups where acceleration balance between engines is important. The 4-blade design reduces prop walk and improves handling in reverse, which many boaters appreciate when docking.
Common Issues: The most frequent mistake is selecting pitch by matching the existing prop’s pitch number without checking whether the engine is reaching its recommended WOT RPM range. If the current prop is already causing the engine to under-rev, moving to a 23-pitch 4-blade will make it worse. Always check WOT RPM with the current prop before selecting a replacement pitch. The second common issue is ordering the propeller without confirming the correct Flo-Torq hub kit — the prop will not install without the hub, and the wrong hub kit will not fit the gearcase. Confirm the hub kit using the Mercury propeller application guide for your specific engine and gearcase combination.
