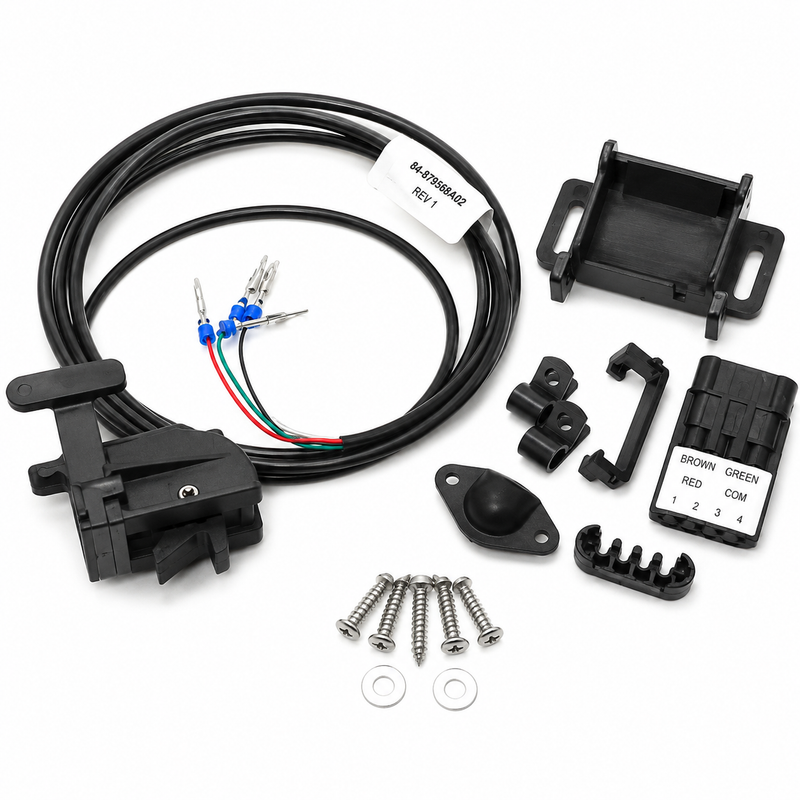

Mercury SmartCraft Speed & Temperature Sensor 859223A01

Mercury SmartCraft Speed & Temperature Sensor 859223A01

Part Number: 859223A01
Brand: Mercury Marine
Official Product Type: SmartCraft Speed & Temperature Sensor
System: Mercury SmartCraft Digital Network / Instrumentation
Condition: New OEM

What It Does

The Mercury 859223A01 is a genuine OEM combination speed and water temperature sensor designed for use with Mercury’s SmartCraft digital instrumentation network. It performs two functions in one unit:

• Speed sensing — measures boat speed through water using a pitot tube or paddle wheel mechanism and transmits the data to SmartCraft-compatible gauges (such as the SC1000 or VesselView displays)
• Water temperature sensing — monitors raw water temperature at the sensor location and reports it to the SmartCraft network for display on compatible gauges

As a SmartCraft network component, this sensor communicates digitally with the engine and gauge system rather than through a simple analog signal, which means it must be compatible with the specific SmartCraft-equipped engine and gauge setup on your boat.

Compatible Applications

• Mercury outboard engines equipped with the SmartCraft digital network — verify by engine model and serial number
• MerCruiser sterndrive applications with SmartCraft instrumentation — verify by engine model and serial number
• Compatible with SmartCraft gauge displays including SC1000 and VesselView series — confirm gauge compatibility before ordering

Serial Number Note: SmartCraft sensor compatibility depends on the specific engine generation and gauge system installed. Always confirm this part number against the Mercury Parts Catalog using your exact engine model and serial number before ordering. Not all Mercury engines use the SmartCraft network — verify your engine is SmartCraft-equipped before purchasing.

System

This sensor is part of the Mercury SmartCraft digital network — Mercury’s proprietary system that links the engine, gauges, and sensors to provide real-time data including speed, RPM, fuel consumption, water temperature, and engine diagnostics on a single display. SmartCraft components must be matched to compatible engine generations and gauge systems.

Supersedes / Alternate Part Numbers

• 859223A01 — current Mercury OEM part number (no known supersession on record)

If your parts diagram or service manual references a different number, contact us to confirm the correct sensor for your application.

Kit Contents

Single OEM SmartCraft speed and temperature sensor assembly. Wiring harness extensions, gauge displays, and mounting hardware are not included.

Service Interval

No scheduled replacement interval — replace when the sensor is producing inaccurate speed or temperature readings, displaying erratic data on the gauge, or has failed entirely. Common causes of sensor failure include physical damage to the sensor body, fouling of the speed pickup, corrosion at the connector, or water intrusion into the sensor housing.

Technical FAQ

Q: How do I know if my engine is SmartCraft-compatible?
SmartCraft was introduced on Mercury engines in the early 2000s and is standard on most current Mercury outboards and MerCruiser engines. If your gauges display digital data such as fuel consumption, trim position, or engine diagnostics — rather than simple analog needle readings — your system is likely SmartCraft-equipped. Confirm by checking your engine’s service manual or the Mercury Parts Catalog for your model and serial number.

Q: My speedometer is reading incorrectly — is the sensor the problem?
Not necessarily. Before replacing the sensor, check for a blocked pitot tube (the small tube that feeds water pressure to the speed sensor) — this is the most common cause of incorrect or zero speed readings and can be cleared with a thin wire or compressed air. If the pitot tube is clear and the reading is still wrong, the sensor itself may be faulty. Also check the wiring connector for corrosion before replacing the unit.

Q: Can I use this sensor with non-SmartCraft gauges?
No. The 859223A01 is a SmartCraft network sensor that communicates digitally. It is not compatible with standard analog gauges. If your boat uses analog instrumentation, you will need a different sensor type.

Q: Does this sensor require calibration after installation?
Speed sensors typically require calibration to your specific hull and propeller setup for accurate readings. Follow the calibration procedure in the SmartCraft gauge or VesselView display manual after installation.

Related Products

• Mercury MerCruiser Depth/Temperature Sensor 8M0122505 – 10ft
• Quicksilver SC1000 Gauge Bezel – Chrome 85mm | 8590743

Parts Desk Insights

Best Use Case: This sensor is the right replacement when a SmartCraft-equipped boat is showing incorrect speed readings, no speed data, or inaccurate water temperature on the gauge display — and the pitot tube has already been checked and cleared. It’s also the correct part when the original sensor housing is physically damaged or the connector has corroded beyond repair. For boats being upgraded to SmartCraft instrumentation, this sensor provides both speed and temperature data in a single OEM unit.

Common Issues: The most frequent mistake is replacing the sensor before checking the pitot tube — a blocked pitot is responsible for the majority of zero or erratic speed readings and costs nothing to fix. The second common issue is ordering this sensor for a non-SmartCraft gauge system, where it will not function. Always confirm your gauge system is SmartCraft-compatible before ordering. Connector corrosion is also a common culprit on older installations — inspect and clean the connector before condemning the sensor itself.
