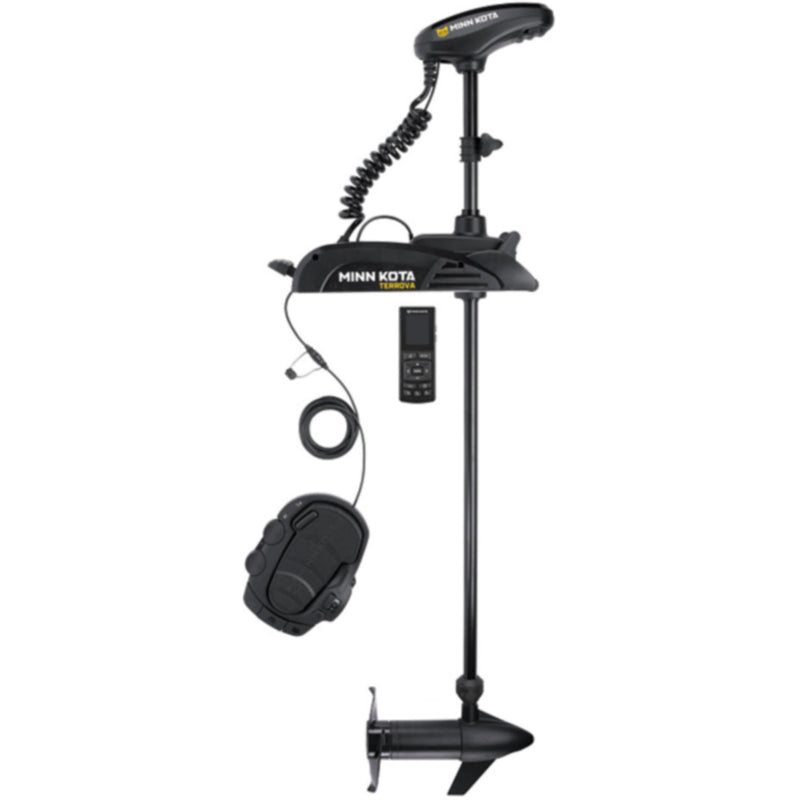

Minn Kota Terrova 80 lb Bow Mount Trolling Motor – 60" Shaft, 24V, Dual Spectrum CHIRP

Mid-Range Power. Extended Reach. GPS Precision.

The Minn Kota Terrova 80 lb with a 60" shaft is built for mid-size freshwater fishing boats with moderate-to-high bow profiles that need more than a 12V system can deliver. Running on 24 volts, it provides strong, efficient thrust with the full Terrova GPS feature set — Spot-Lock® anchoring, AutoPilot™ heading control, and built-in Dual Spectrum CHIRP sonar — in a shaft length that suits a wide range of aluminum and fiberglass hulls.

Key Features

• 80 lbs of Thrust / 24V: Reliable power for mid-size boats in wind, current, and open water
• 60" Indestructible Composite Shaft: Versatile shaft length for moderate-to-high bow profiles; lifetime guarantee against breakage
• Spot-Lock® with Jog: GPS anchor holds your exact position; micro-adjust with the push of a button
• AutoPilot™: Automatically steers a straight heading so you can focus on fishing
• Dual Spectrum CHIRP Sonar: More accurate fish and structure returns than traditional sonar, built into the motor head
• Digital Maximizer™: Extends battery run time up to 5× compared to conventional motors
• Weedless Wedge™ 2 Prop: Swept-back blades power through weeds without bogging down
• Push-to-Test Battery Meter: Instant battery status at the motor head
• Mobile App Compatible: Full control from your Apple® or Android™ device
• Includes: Handheld remote and corded foot pedal

Compatible Applications

• Mid-size freshwater fishing boats with moderate-to-high bow profiles (approximately 22"–28" bow height)
• Aluminum fishing boats and fiberglass bass boats in the 17–22 ft range
• 24-volt dual battery systems
• Anglers who need 24V thrust with a versatile shaft length for varied hull types
• Humminbird® CHIRP-compatible fish finder users

In the Box

• Minn Kota Terrova trolling motor (80 lb / 60" / 24V)
• Handheld remote
• Corded foot pedal
• Integrated Dual Spectrum CHIRP sonar transducer

Related Models

• Want MEGA Down Imaging instead of CHIRP? See the Terrova 80 lb / 60" with MEGA Down Imaging
• Need a shorter shaft? See the Terrova 80 lb / 45" Shaft model
• Need a longer shaft? See the Terrova 80 lb / 72" Shaft model
• Fishing saltwater? See the Riptide Terrova 80 lb / 60" Saltwater model
• Need maximum thrust? See the Terrova 112 lb / 36V models

Parts Desk Insights

Best Use Case: The Terrova 80 lb / 60" / 24V CHIRP is the most versatile configuration in the 80 lb family — the 60" shaft fits the widest range of bow heights (approximately 22"–28" from the waterline), making it the right default choice when you’re not sure which shaft length fits your hull. It’s well-matched to aluminum and fiberglass boats in the 17–22 ft range where 12V thrust is insufficient but a full 36V / 112 lb system is more than needed.

CHIRP vs. MEGA Down Imaging: If integrated sonar quality is a priority, consider the Terrova 80 lb / 60" with MEGA Down Imaging — same motor, same shaft, but with Humminbird® MEGA Down Imaging instead of CHIRP. MEGA provides significantly clearer underwater detail. If you’re already running a quality standalone fish finder, the CHIRP model is the better value.

Shaft Selection Tip: A general rule is to add 16" to your bow height to determine the minimum shaft length needed. Measure from the waterline to the top of the bow mount before ordering. The 60" shaft is typically correct for bows measuring 22"–28" above the waterline.

24V Battery Setup: This motor requires two 12V batteries wired in series to produce 24V. Use matched batteries of the same age, type, and capacity. AGM or lithium batteries in the 100–120 Ah range are recommended for a full day of fishing.
