OceanLED Explore E6 Thru-Hull Underwater Light — 11,000 Lumen Dual Blue/White | E6TH009BW
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The OceanLED Explore E6 BW is a high-output thru-hull underwater light delivering 11,000 lumens of dual blue and white illumination through advanced optics. Engineered for larger vessels where maximum underwater brightness is the priority, the E6 BW’s focused side beam drives a concentrated blade of light deep into the water column — producing the vivid blue-white glow that attracts fish and creates a striking visual presence at anchor or at the dock. The aluminium bronze body is built for permanent thru-hull installation on transoms or angled hulls, and the compact external driver simplifies wiring in tight spaces.
Key Features
- 11,000 lumens dual blue/white output — maximum brightness in the Explore E6 thru-hull range
- Advanced optics: 90° top beam / 20° focused side beam — rectangular blade of light penetrates further into the water
- Dual blue and white channels — switch between colours or blend for desired effect
- Fish strobe mode for attracting baitfish and game fish
- Compact thru-hull design — suitable for transoms and angled hulls
- Body: AB2 aluminium bronze — corrosion-resistant for permanent marine installation
- IP69K rated — temporary rear submersion protection
- Small external driver with built-in LED status indicator
- Control via switch or optional lighting controller
- Recommended for vessels 65 ft (20 m) and above
- Weight: 2,495 g / 5.5 lb
Intended Use

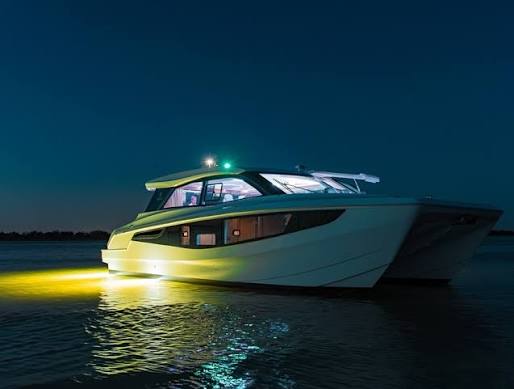

Designed for permanent thru-hull installation on larger yachts, sportfishers and motoryachts where maximum underwater light output is required. The dual blue/white configuration is ideal for vessels where a single high-intensity colour scheme is preferred over full RGBW colour mixing, and where raw lumen output takes priority over colour versatility.
Fitment Notice
This light is designed for thru-hull installation and requires a suitable hull penetration. The compact body accommodates transoms and angled hull sections where surface-mount or flush-mount lights cannot be used. Confirm hull thickness, transom angle and available interior space for the external driver before ordering. OceanLED recommends this fixture for vessels 65 ft (20 m) and above. For switch or third-party controller integration, the OceanLED 012923 Control Cable and Terminator Kit is required and sold separately. For the full RGBW multi-colour version of this light, see the OceanLED Explore E6 — 6,000 Lumen RGBW DMX.
Installation and Use Notes
Install according to the OceanLED installation guide supplied with the fixture. Mount the external driver in a dry, ventilated location within the recommended cable run distance. Connect to a dedicated circuit with appropriate fusing. Use the built-in LED indicator on the driver to confirm operational status. Rinse the exterior of the light with fresh water periodically and inspect the thru-hull seal annually.
Alternate/Superseded Part Numbers
- Part number: 812-E6TH009BW
- OceanLED model: E6TH009BW
- Brand: OceanLED
- Output: 11,000 lumens, dual blue/white
- Control: Switch or optional controller
- Body material: AB2 aluminium bronze
- IP rating: IP69K
- Recommended vessel size: 65 ft (20 m) and above
- Weight: 2,495 g / 5.5 lb
Compatible & Related Products
- OceanLED 012923 Control Cable and Terminator Kit for Explore E6
- OceanLED Explore E6 Thru-Hull Underwater Light — 6,000 Lumen RGBW Multi-Color DMX | E6TH009CD
- OceanLED E6009B Explore E6 Underwater LED Light — Blue
- OceanLED E6009W Explore E6 Underwater LED Light — White
Parts Desk Insight
This is the highest-output light in the Explore E6 thru-hull range and the right recommendation when a customer wants maximum underwater brightness without the complexity of full colour control. The dual blue/white configuration suits most sportfishing and cruising applications where the goal is fish attraction and dock presence rather than colour entertainment. If the customer wants full RGBW colour mixing and DMX integration, point them to the E6TH009CD instead. Always confirm whether the customer needs the control cable kit for switch or controller wiring — it’s a common add-on that’s easy to miss at the point of sale.
