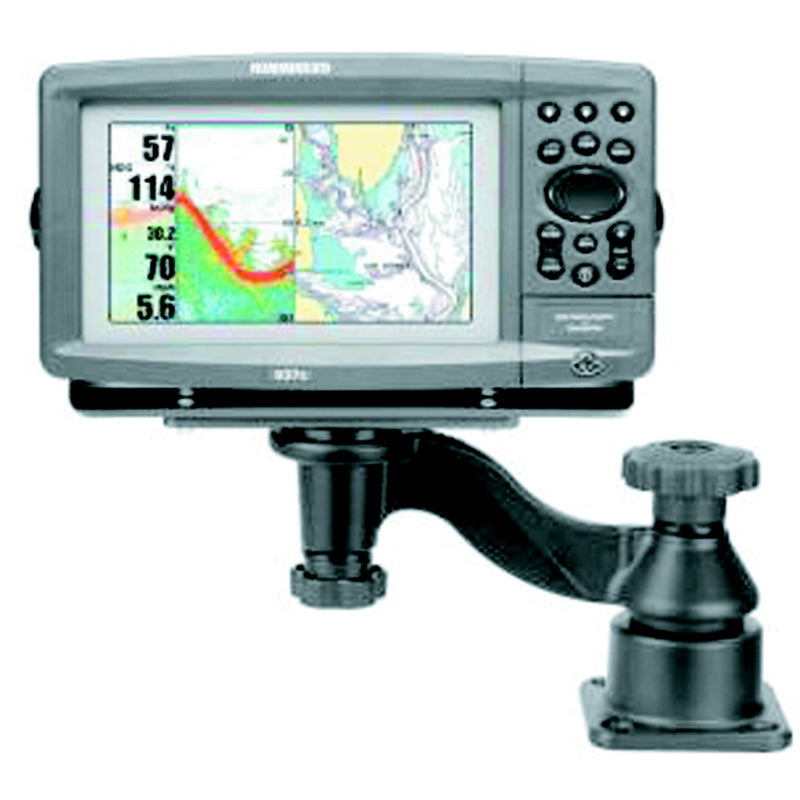

RAM RAM-109H Single Swing Arm Horizontal Surface Mount System
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Full-Swing Horizontal Mount for Flexible Display Positioning
The RAM RAM-109H is a single swing arm mounting system designed for horizontal surface installation — ideal for mounting to the top of a console, a dash, or any flat horizontal surface where you need a display to swing out, rotate, and lock into the perfect viewing position. Unlike ball-and-socket systems, the RAM-109H uses a rigid bent swing arm with two independent 360° pivot points, giving you a wide range of motion with a solid, mechanical feel.
The 6" bent arm lifts and offsets the display from the mounting surface, and the two pivot points — one at the base and one at the plate end — allow you to swing the display toward the viewer, angle it for the best sightline, and lock it firmly in place. The wide 6-1/4" x 2" rectangular plate accommodates a broad range of marine electronics with its multiple pre-drilled hole patterns.
Key Features
- 6" bent swing arm in powder-coated marine-grade aluminum
- Horizontal surface mounting base — mounts to the top of a console, dash, or flat panel
- Two independent 360° pivot points: one at the base, one at the plate-to-arm junction
- Wide 6-1/4" x 2" rectangular plate with multiple pre-drilled hole patterns
- Fits marine GPS, chartplotters, CB radios, ham radios, gimbal brackets, and more
- Powder-coated marine-grade aluminum for corrosion resistance in saltwater environments
Horizontal vs. Vertical — Choosing the Right Orientation
The RAM-109H mounts to a horizontal surface (top of a console, dash, or flat panel) and swings the display up and toward the viewer. If you need to mount to a vertical surface (side of a console, bulkhead, or panel) and swing the display outward, see the RAM RAM-109V Single Swing Arm Vertical Surface Mount System.
If you prefer a ball-and-socket system with infinite micro-adjustment rather than a swing arm, the RAM RAM-111 1.5" Ball Standard Arm Universal Mount Kit, RAM RAM-111UB Short Arm Kit, and RAM RAM-111UD Long Arm Kit offer the same wide plate in a ball-and-socket configuration.
Parts Desk Insights
Best use case: This is the right mount when a customer is installing on a flat console top or dash and wants the ability to swing the display toward them for viewing and push it back when not needed. The two pivot points give more range of motion than a single-pivot arm, and the rigid swing arm feel suits customers who prefer a mechanical lock-in over the micro-adjustability of ball-and-socket systems. It's a particularly good fit for open-cockpit boats where the display needs to fold flat when underway. Always confirm the customer's mounting surface is horizontal before ordering — for vertical surfaces like a console side or bulkhead, the vertical swing arm version is the correct choice.
